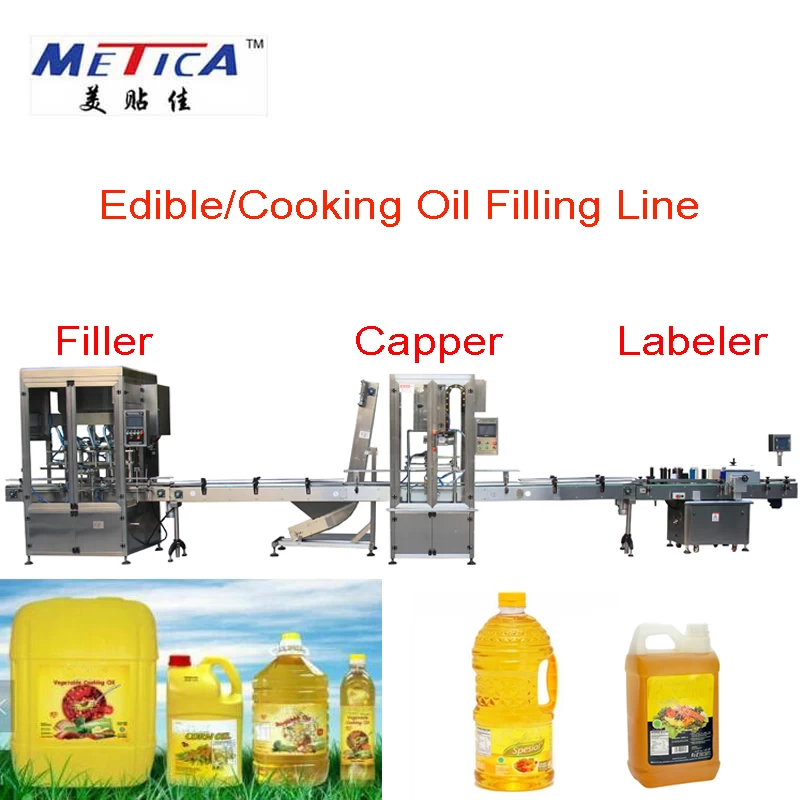

Work process:
- 1)Put bottles on turn table feeding bottles to filling machine automatically
- 2)Bottles conveyed to filling machine to fill automatically
- 3)Bottle conveyed to capping machine cap automatically after filling
- 4)Bottle conveyed to labeling machine label automatically
- 5)Collect bottles with a turn table(optional)
the Whole Line technical parameter
| Speed |
700-1500BPH |
| Filling accuracy |
>99% |
| Filling volume |
100-1000ml, 300-3000ml, 500-5000ml (can be customized) |
| Filling method |
piston+servo motor driven |
| Power |
220V 50/60Hz, 6kw |
| Air supply |
0.6 MPa |
| Bottles applicable |
A wide shape range |
| Application |
Liquid or viscosity products |
| Feature |
PLC, touch screen, tank, level meter |

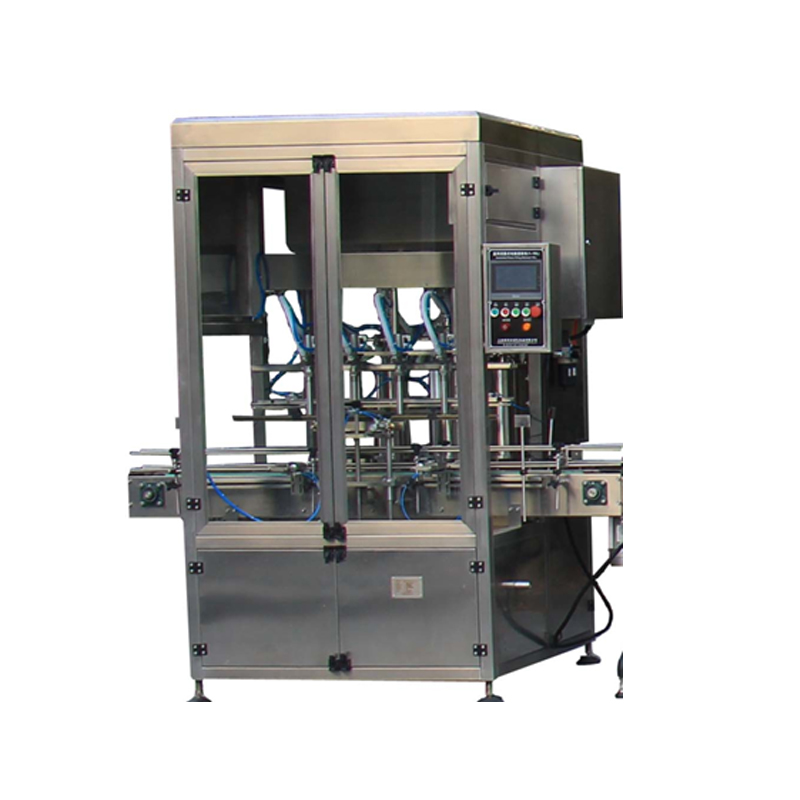

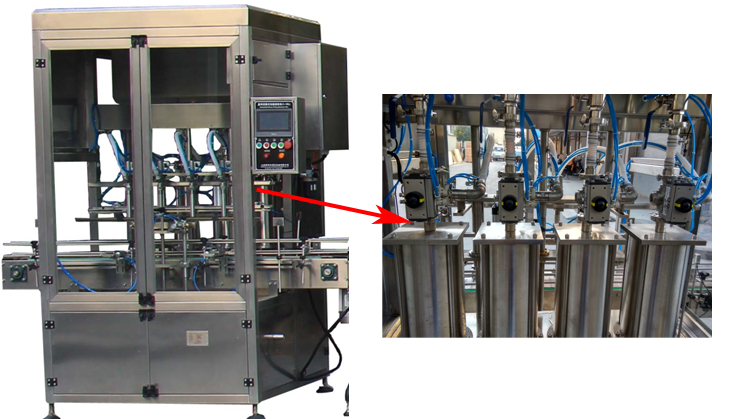

1)Adopts piston + servo motor driven. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
2)Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
3)Can work alone or join the production line.

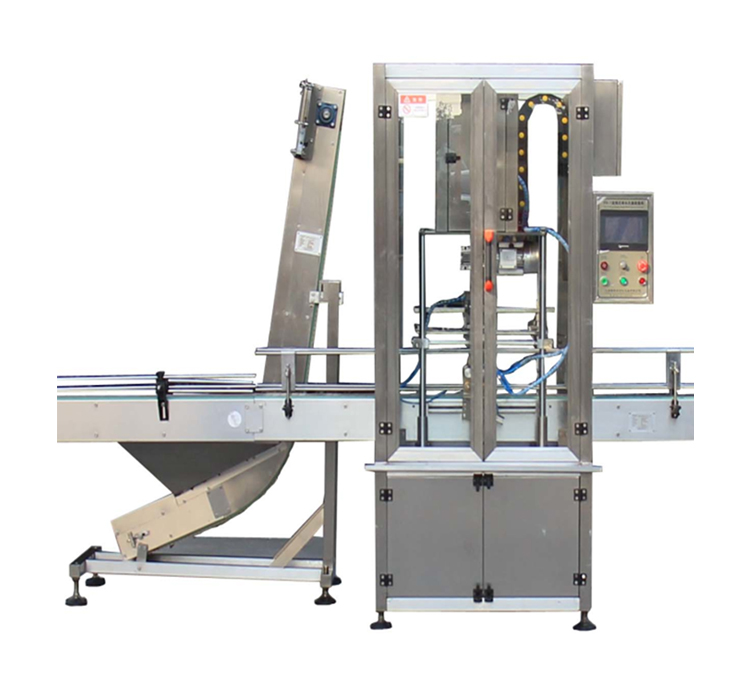

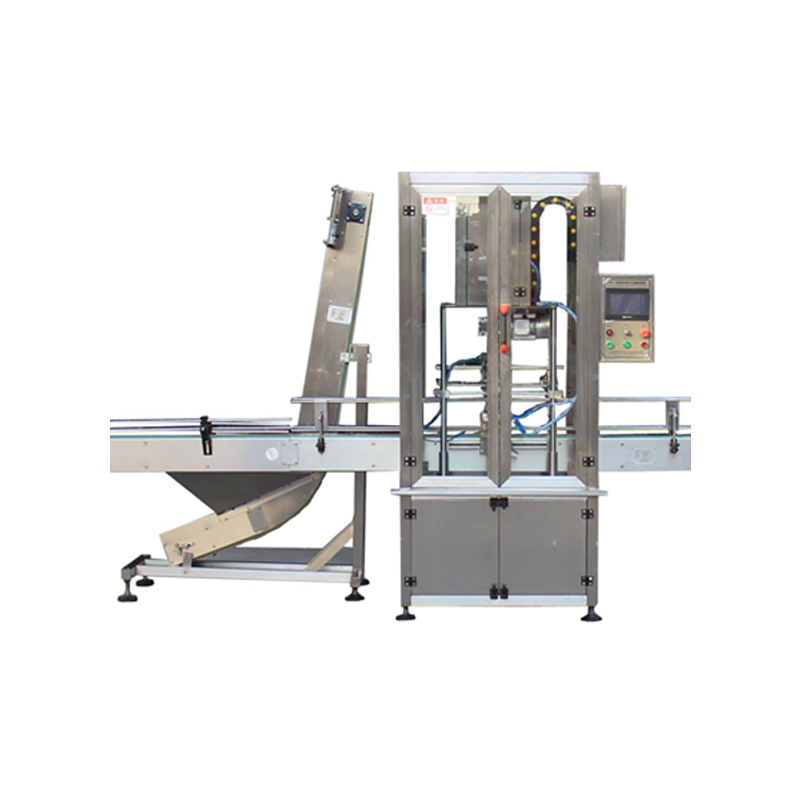

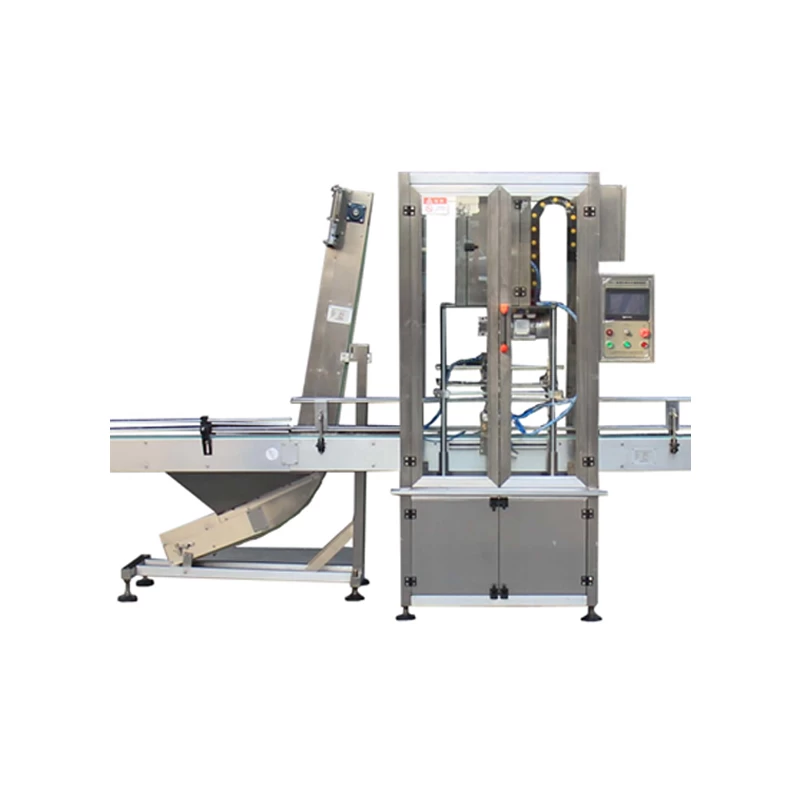

Capping machine
1)Automatic linear capping machine, suit for screw cap or press cap
2)Automatic feeding caps with vibration bowl or lifter
3) Has clutch to avoid the over-tightening
4)Can work alone or join the production line.

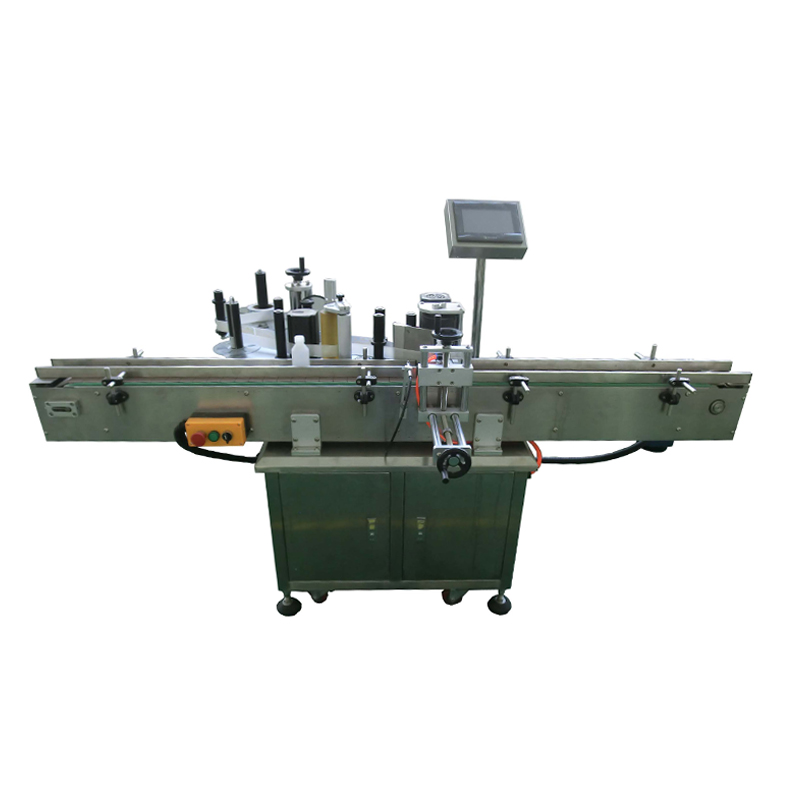

Labeling machine
1)Automatic round bottle stickers labeling machine
2)Automatic Labeling , work independently or connected to a production line, save labors
3)Easy to operate on Touch Screen, labeling controlled by PLC, no products, no labeling
