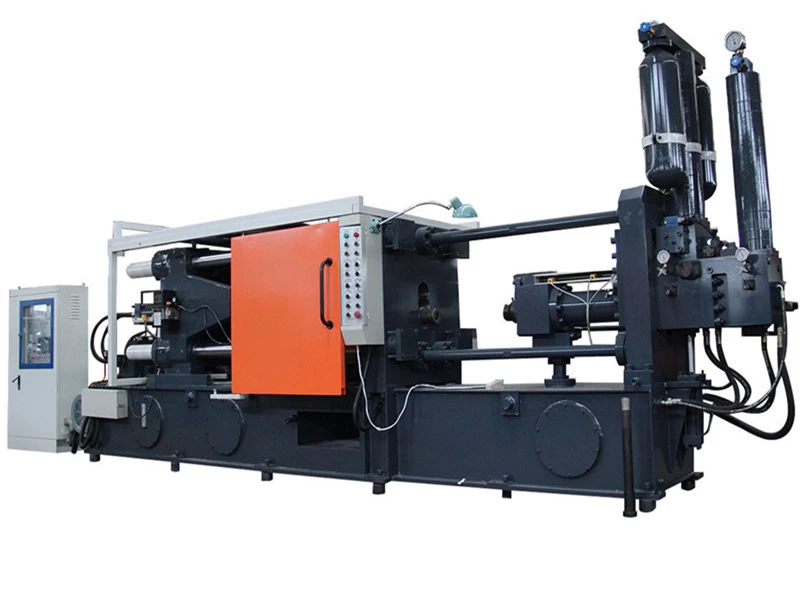

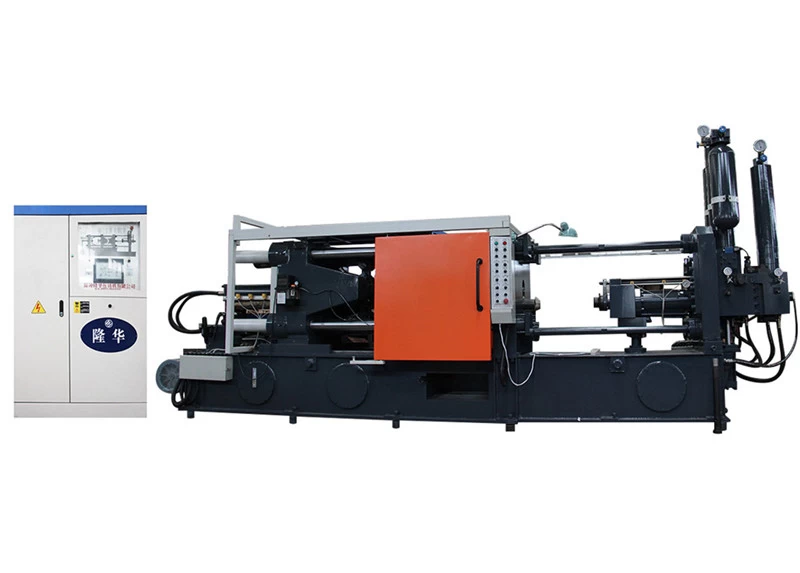

Automatic energy-saving die casting machines to make knife housings(LH-300T)

We are the promoter who promote the value of die casting machine greater.



Product Item:

Automatic energy-saving die casting machines to make knife housings(LH-300T)


Cold chamber die casting machine is equipped with double buffer device of unlocking mold, which greatly improves the machine life and stability. Circulating central lubrication system, which can be continuously filled with lubricating oil, and can be recycled after filtering, equipped with oil shortage alarm device, make the machine in a good lubrication state for a long time, reduce the waste of lubricating oil and improve the life of the machine.



magnesium alloy die casting machinecheap aluminium die casting machines




LH SERIES OF STANDARD PARAMETER TABLE (LH-300 T)

ITEMS

UNIT

SPECIFICATION

HYDRAULIC WORKING PRESSURE

MPA

14

CLAMPING FORCE

KN

3000

SPACE BETWEEN TIE BARS

MM

560*560

TIE BAR DIAMETER

MM

¢110

DIE OPENING STROKE

MM

420

INJECTION FORCE(INTENSIFY)

KN

240

PLUNGER LAUNCH DISTANCE

MM

140

INJECTION POSITION

MM

0  --  160

PLUNGER DIAMETER

MM

¢50----¢70

INJECTION STROKE

MM

420

CASTING PRESSURE (INTENSIFY)

MPA

143/99/73

CASTING FIANGE PROTRUSION

MM

12

CASTING FIANGE DIAMETER

MM

110

MAX CASTING AREA UNDER 40MPA

CM2

700

LNJECTION WEIGHT(AL)

KG

3.5

DIE HEIGHT(MIN--MAX)

MM

250~650

EJECTOR FORCE

KN

150

EJECTOR STROKE

MM

120

MOTOR CAPACITY

KW

15

MACHINE DIMENSIONS  (L*W*H)

M

6.4*1.7*2.8

REFERENTIAL MACHINE WEIGHT FOR UPLIFTING

T

12.5

OIL TANK CAPACITY

L

750

PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE



Requirements for maintenance of die casting machine

1. Clean all sundries within the operating range of the machine before starting each time.

2. Carefully check whether the safety protection device and travel switch are normal, and whether the emergency stop button is normal.

3. When cleaning the pressure chamber and punch, do not touch or extend your hand into the pressure chamber.

4. Do not put fire or heat source near accumulator and hydraulic pipeline system.

5. Do not remove, modify and adjust safety protection devices and components at will, and get the support of the machine manufacturer when necessary.

6. Each time the oil pump is started, the "stop" position of each operation switch must be confirmed.

7. Do not clean the electrical box with compressed air.
