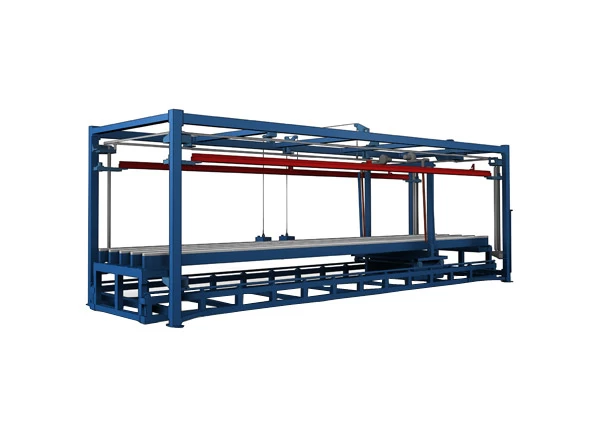

Automatic EPS block cutting machine


Function:

1. The frame of the machine adopts high quality square and profiled bar with fastness configuration, with good intensity, metabolic and good shape.

2. The machine has horizontal, vertical and holistic truncation cutting equipment, it can realize horizontal, vertical and holistic cutting.

3. The machine adopts frequency control timing with stable running and big timing range, can realize0-4m/min step less timing, it is suitable for slow cutting and fast retract.

4. The machine equips holistic truncation cutting system, so the production efficiency and cutting precision improve greatly, especial for wall block cutting .


Technical data:

Subjects

Unit

HS-VC-2000

HS-VC-3000

HS-VC-4000

HS-VC-6000

HS-VC-8000

Cutting size

mm

2100×1300×1250

3100×1300×1250

4100×1300×1250

6100×1300×1250

8150×1300×1250

Mini thickness

mm

5

5

5

5

5

Cutting speed

Mm/s

10-20

10-20

10-20

10-20

10-20

Power capacity

KW

8.22

8.22

8.22

8.22

8.22

Overall size

mm

4030×2570×2800

5030×2570×2800

6030×2570×2800

8030×2570×2800

10100×2570×2800

Weight

T

2.6

2.8

3

3.4

24

Note: this information is for reference only, further details to be confirmed with the company.
