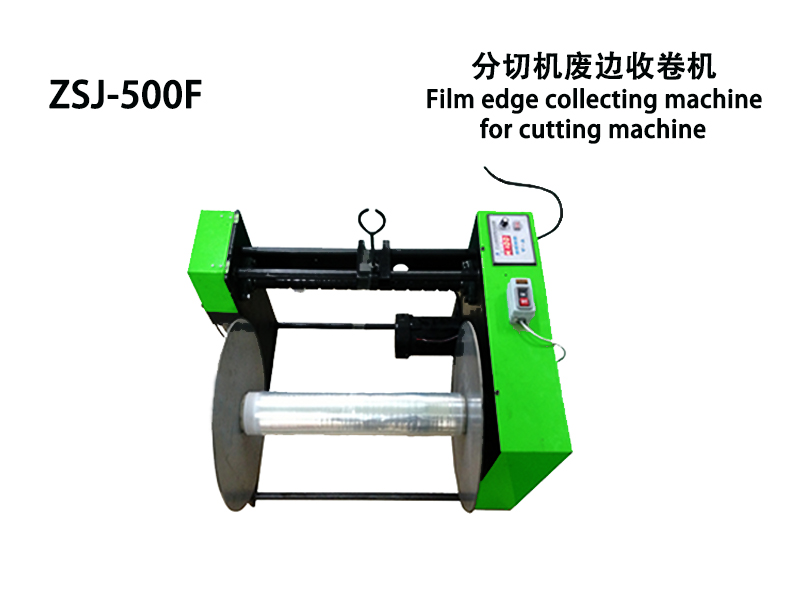

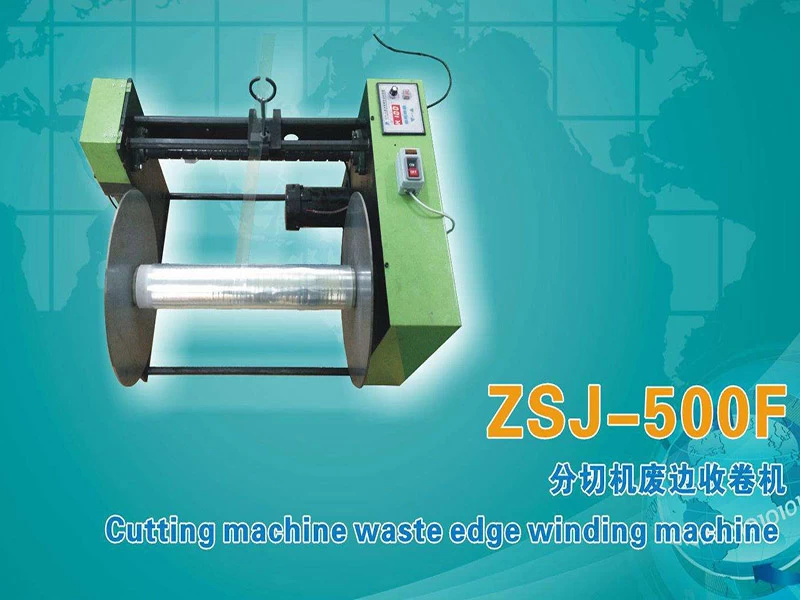

Film edge collecting machine for cutting machine
Application:
The ZSJ-500F film edge collecting machine for cutting machine is widely used to roll and collect wasted film edge from cutting machine, also suitable for rewinding series of films such as PP, PET, PVC, etc.
Feature:
●ZSJ-500F film edge collecting machine for cutting machine belongs to newly high-tech products made in our factory combining advanced technologies from domestic and overseas and practical experience for years.
●It’s used to roll and collect film edge from cutting machine, automatically rolling back and forth without touch point. The host is equipped with DC motor of 400w, 1000 RPM.

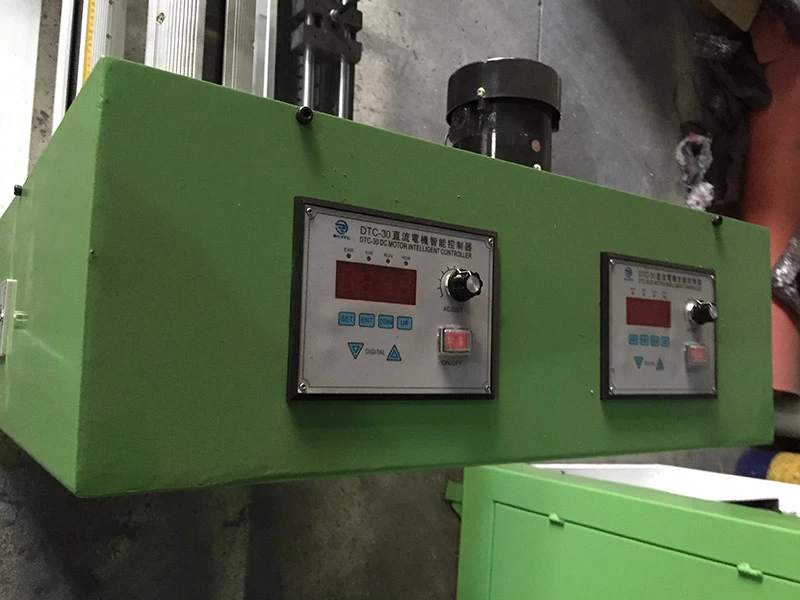

●The machine uses electronic ruler to control process of speed adjustment and achieve synchronous control for continuous rolling according to linear speed of the host with advantages of more quiet and stable operation.
●Supported by 220V power and running in linear speed of 130 m/min, the machine is designed to cooperate with cutting machine to collect film edge, chiefly characterized by convenient operation, stable transmission and high efficiency quality of collecting.
Main technical parameter:
|
Customized or not
|
Yes
|
Purpose
|
Collecting film edge of cutting machine
|
|
Brand
|
Haosen
|
Model
|
Type 500
|
|
Machine name
|
Film edge collecting machine
|
Thermal sealing area
|
500 (mm2)
|
|
Package type
|
Collecting film edge
|
Products size
|
450 (mm)
|
|
Suitable object
|
others
|
Suitable industry
|
Machine package
|
Technical parameter of prototype:
|
Winding speed
|
150 m/min (may range by material sorts and cutting length)
|
|
Range of film size
|
Max diameter: ￠430mm
|
|
Machine dimension
|
Length*width*height: 810*740*640mm
|
|
Weight
|
80kg
|

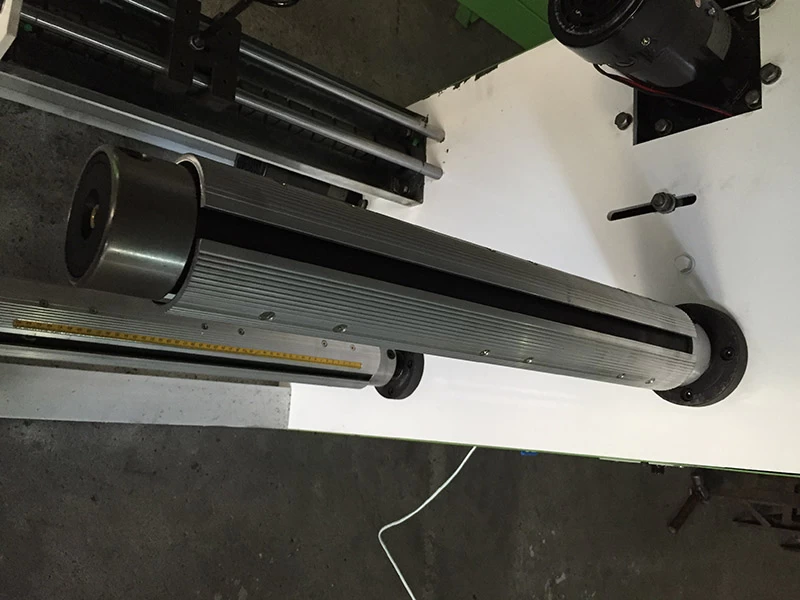

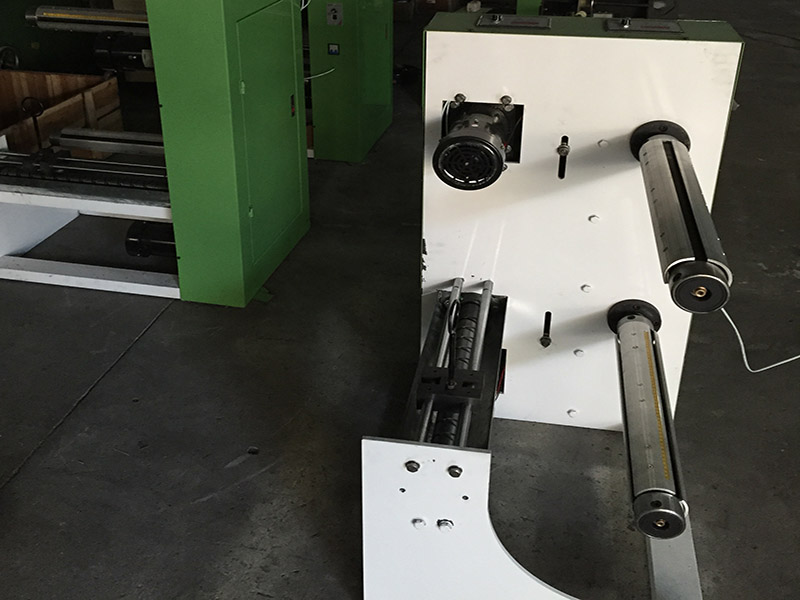

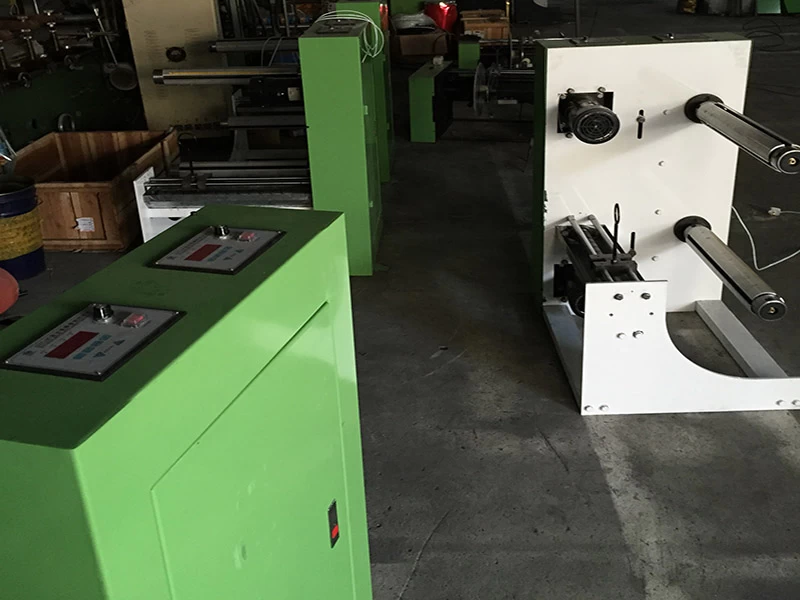

More deatils
Why choose us?
●16 years focus on pouch making machine!Our expericnec is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan Panasonic and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer,accept OEM or ODM!
●Highed skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
