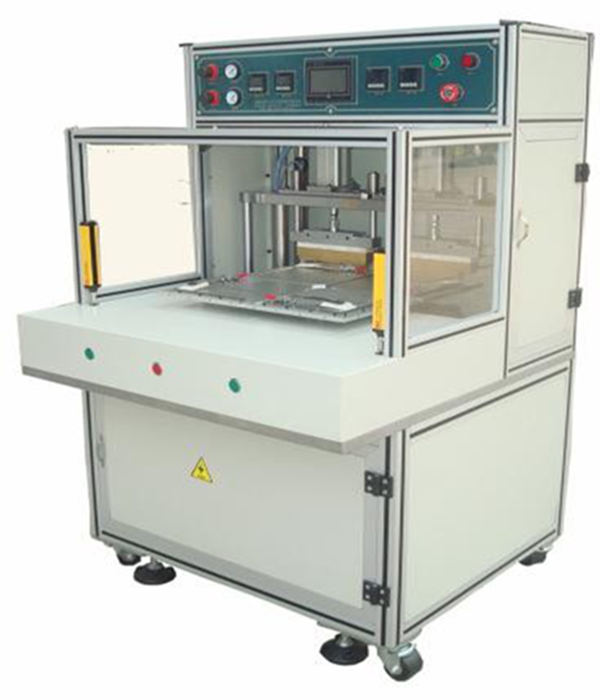

Automatic Four Station Turntable Top&Side Heat Sealing Machine For Pouch Cell


It is suitable for the heating sealing on both sides of the top and side of the pouch cell.

Operation process: four clamps are arranged symmetrically on the turntable, and the batteries are manually loaded into the clamps at the loading position, which will be transmitted intermittently with the turntable. Stay in the loading position - top sealing position - side sealing position - blanking position in turn, complete the top side sealing and side side sealing at the corresponding position, take them out manually at the blanking position, and complete the top sealing and side sealing processes.


Machine structure

Rotary table feeding mechanism: with 4-position rotary table (aluminum), brake motor drive, 4-equal cam divider;

Top sealing structure: 1 set of upper and lower pre sealing device, air cylinder. Guide post, copper heating pipe, head, independent temperature control;

Side seal structure: 1 set of upper and lower pre sealing device, air cylinder. Guide post, copper heating pipe, head, independent temperature control;

Upper head base plate structure: chrome plated steel plate platform;


Specifications

Power supply

220V/50Hz

Power

1kw

Compressed air

0.6MPa

Turntable form

work station

Feeding accuracy of rotary table

±0.05mm

Applicable specifications

Top sealing200mm(include the size of airbag)

Side sealing200mm

Sealing length: 210mm

Sealing head width

5mm(customizable)

Sealing temperature

Rt~260 adjustable

Control accuracy: ±2

Sealing time

0-10 seconds adjustable

Equipment capacity

200-400EA/H(depending on the operator's proficiency)

Alarm system

Low temperature, high alarm function;

There is no leakage or repeated encapsulation of the battery;

Safeguard

Equipped with light curtain safety protection and rear door switch protection;

Control system

It adopts PLC to realize automatic control, touch screen to realize man-machine dialogue, convenient operation setting, rich and complete manual, automatic operation function, fault alarm function, output statistics function;

Machine weight

450KG

Machine dimensions

880mm L*870mm W*1500mm H
