Main parameters of the diaper-making machine
| Design Speed |
600 Pcs/min |
Product Size |
S, M, L, XL (Customized) |
| Stable Speed |
400-450 Pcs/min |
Qualified Rate |
≥98% |
| Install Power |
380V 50HZ, Tri-phase |
Machine Size |
30M*9.0M*4.5M |
| Power Supply |
250 KW |
Weight |
80 Tons |
Main Function Features of Diaper Making Machine
1. Servo motor driving with PLC control and touch screen;
2. High-speed teeth-like crusher;
3. Web-wheel molding;
4. SAP auto adding with amount control;
5. Servo unwinding, auto-tension control and auto splicing for raw materials;
6. Auto reject for wasted products, auto detect & alarm for material exhausted;
7. Phase adjusting during running without stop
This servo-driven production line manufactures precision T-shape diapers with stable output at 400-450 pcs/min (design speed: 600 pcs/min). It guarantees ≥98% qualified rate and supports instant size switching between S/M/L/XL (customizable). Operating on 380V 50Hz tri-phase power (250 KW total), the machine measures 30m(L)×9m(W)×4.5m(H) with an 80-ton footprint.
Why Choose us?
- National High-Tech Leader: Specialized in intelligent hygiene machinery R&D and manufacturing.
- Cutting-Edge Tech: Full servo drive + IoT monitoring for 1,000+ pcs/min speed and >97% defect-free rate.
- Full Product Range: Lines for baby diapers, adult incontinence & feminine pads + custom shaping/embossing.
- Global Support: Turnkey solutions & lifetime maintenance across 30+ countries.
- Sustainable Innovation: Green energy-saving tech to cut costs and boost efficiency.

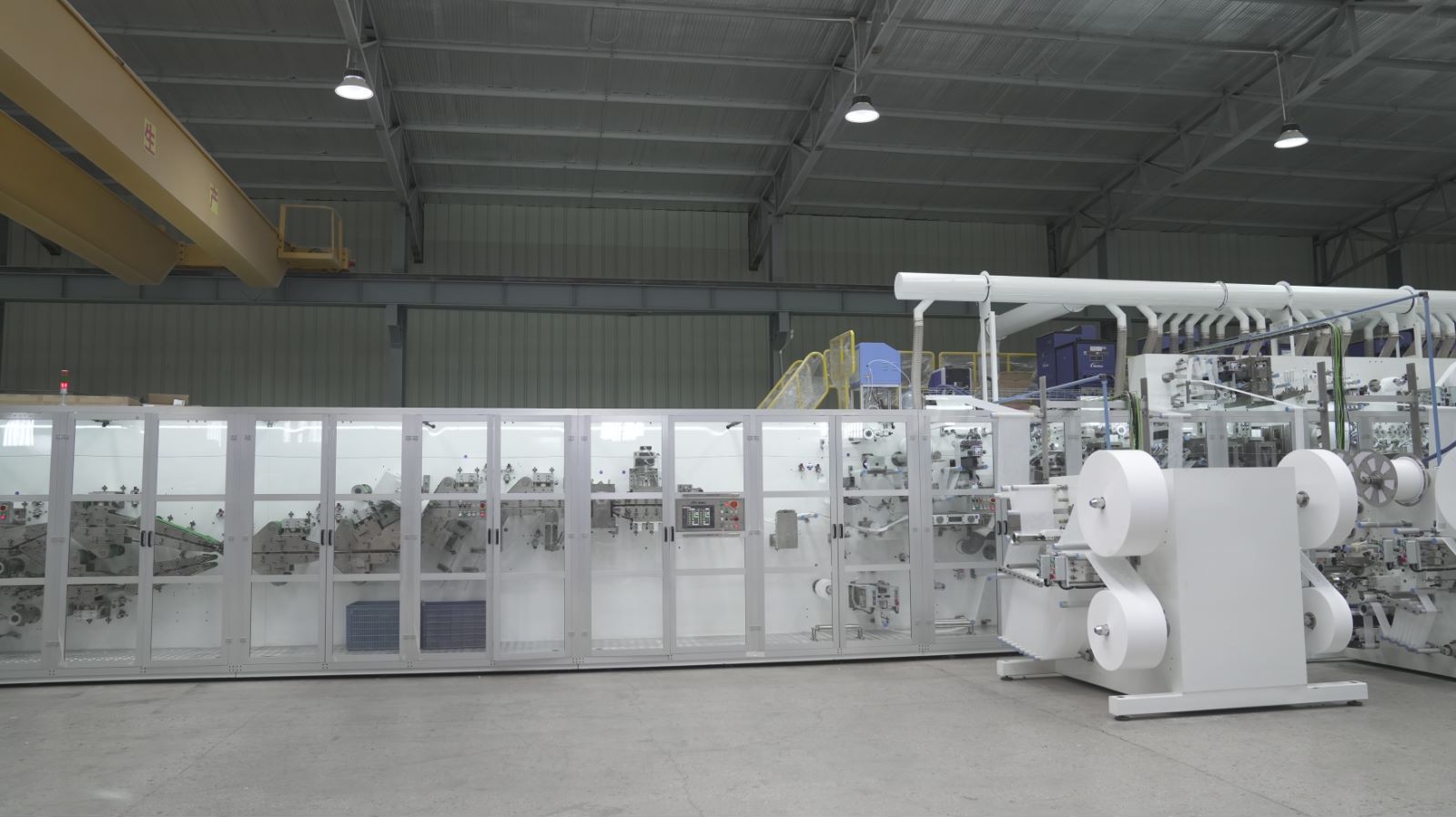

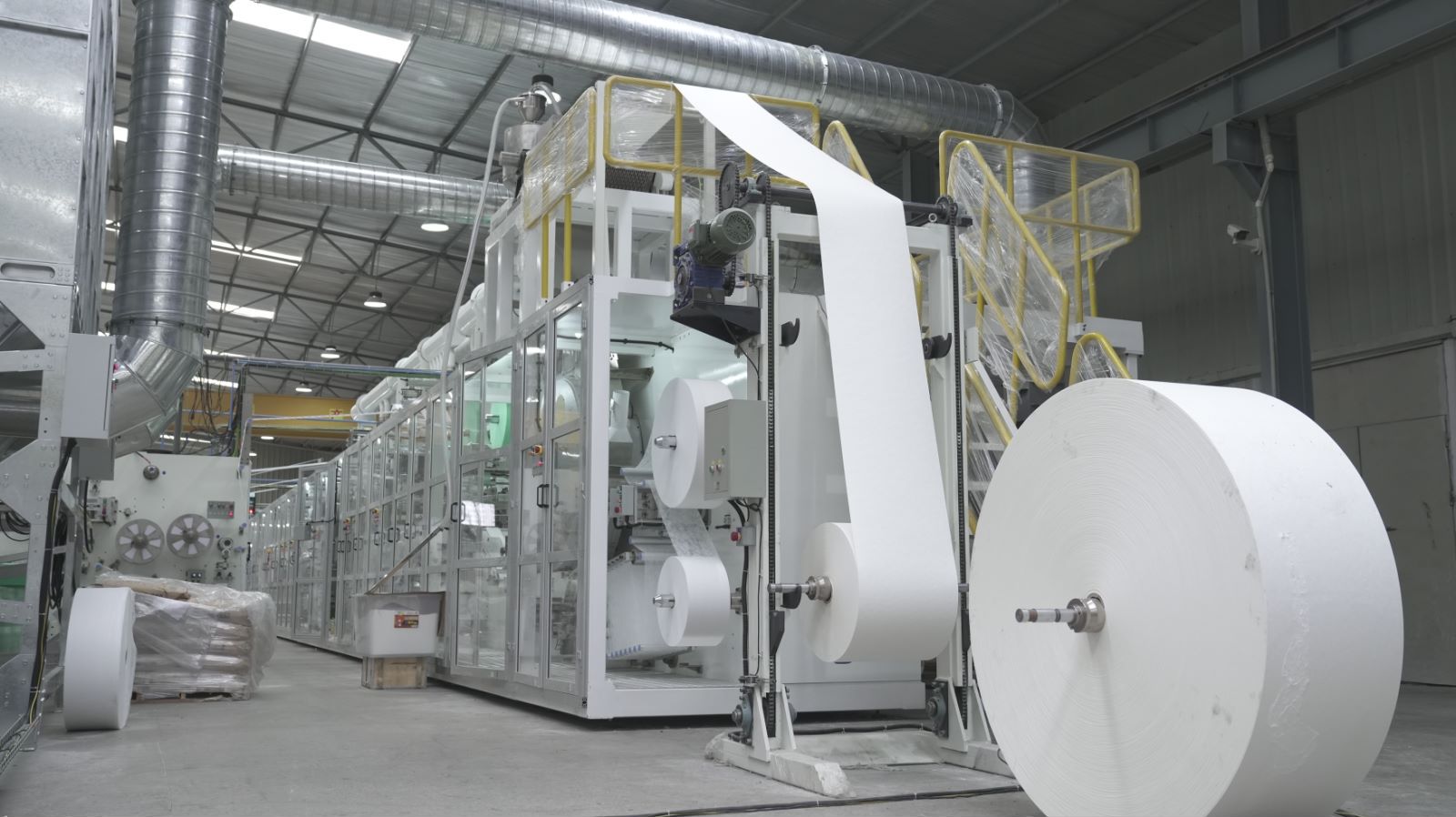

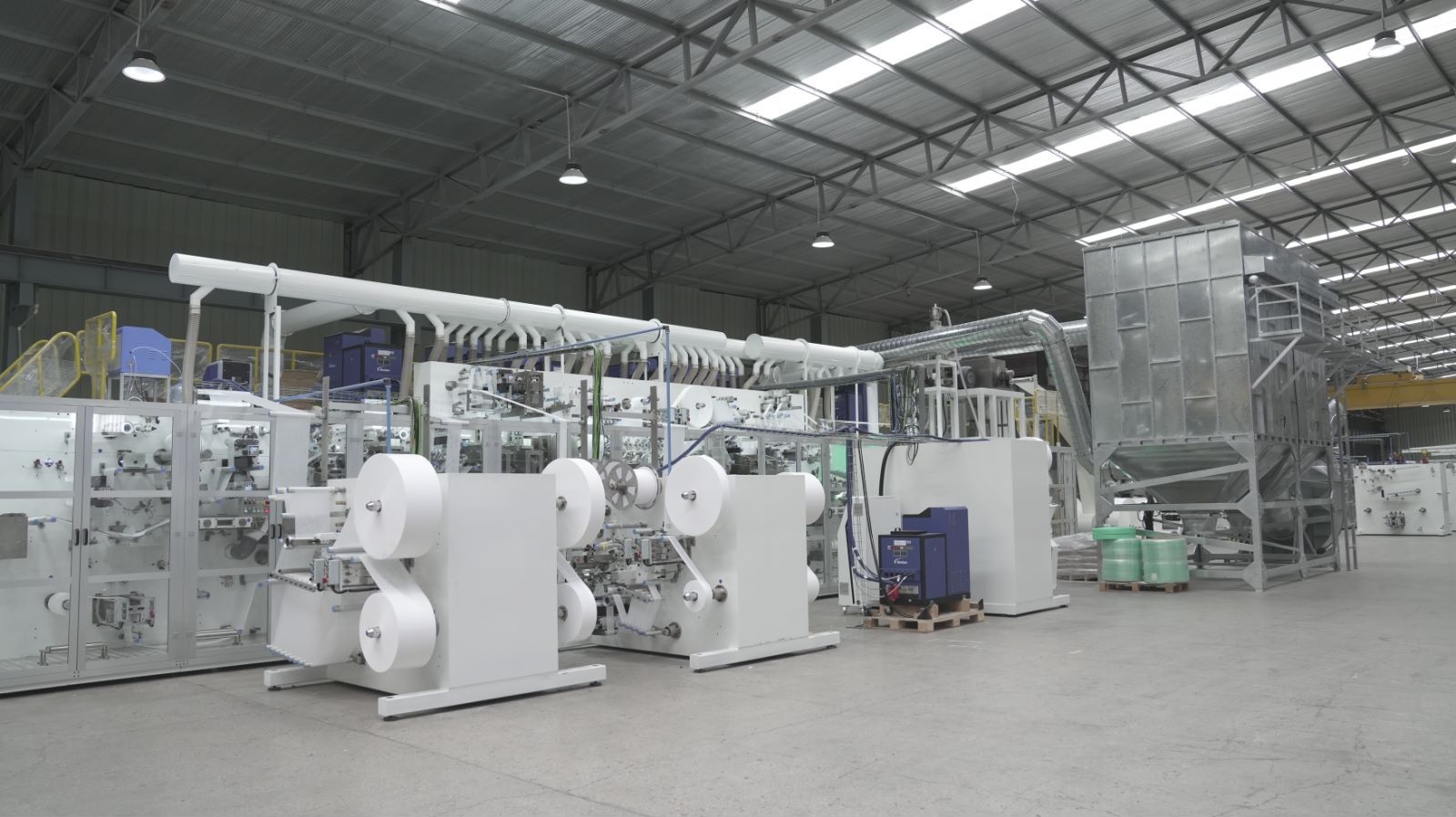

Workshop

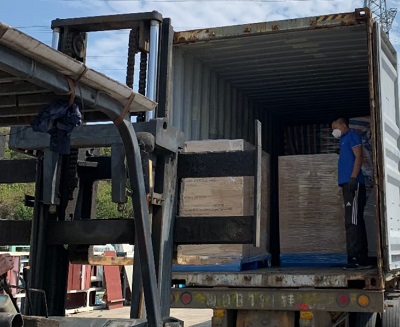

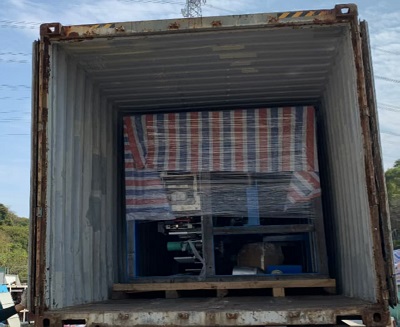

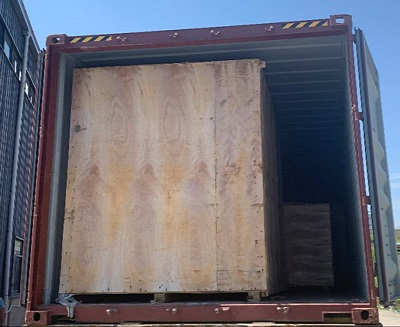

Packing and Packaging Diagram
If you have interest in our product, pls feel free to contact us!
