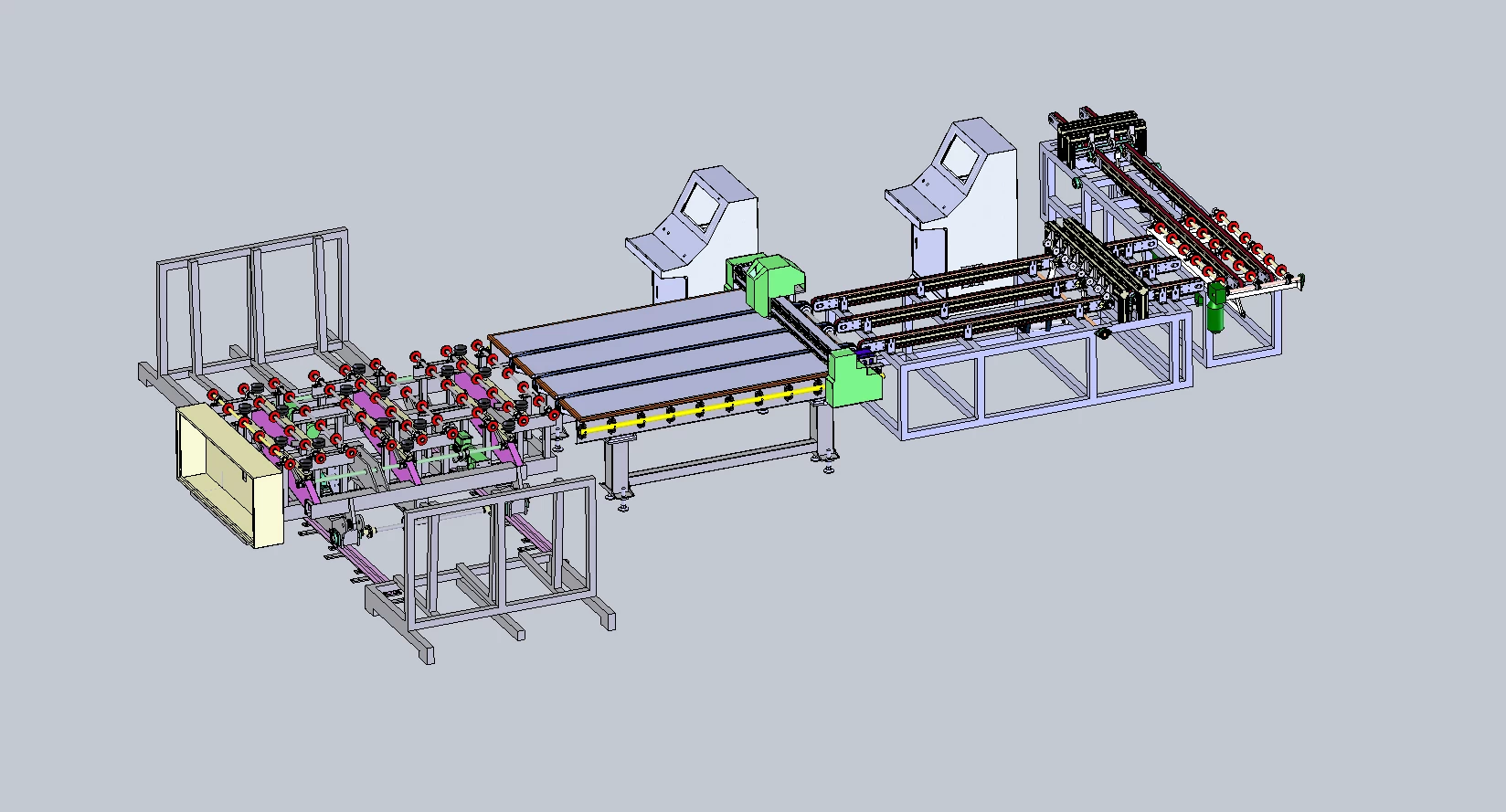

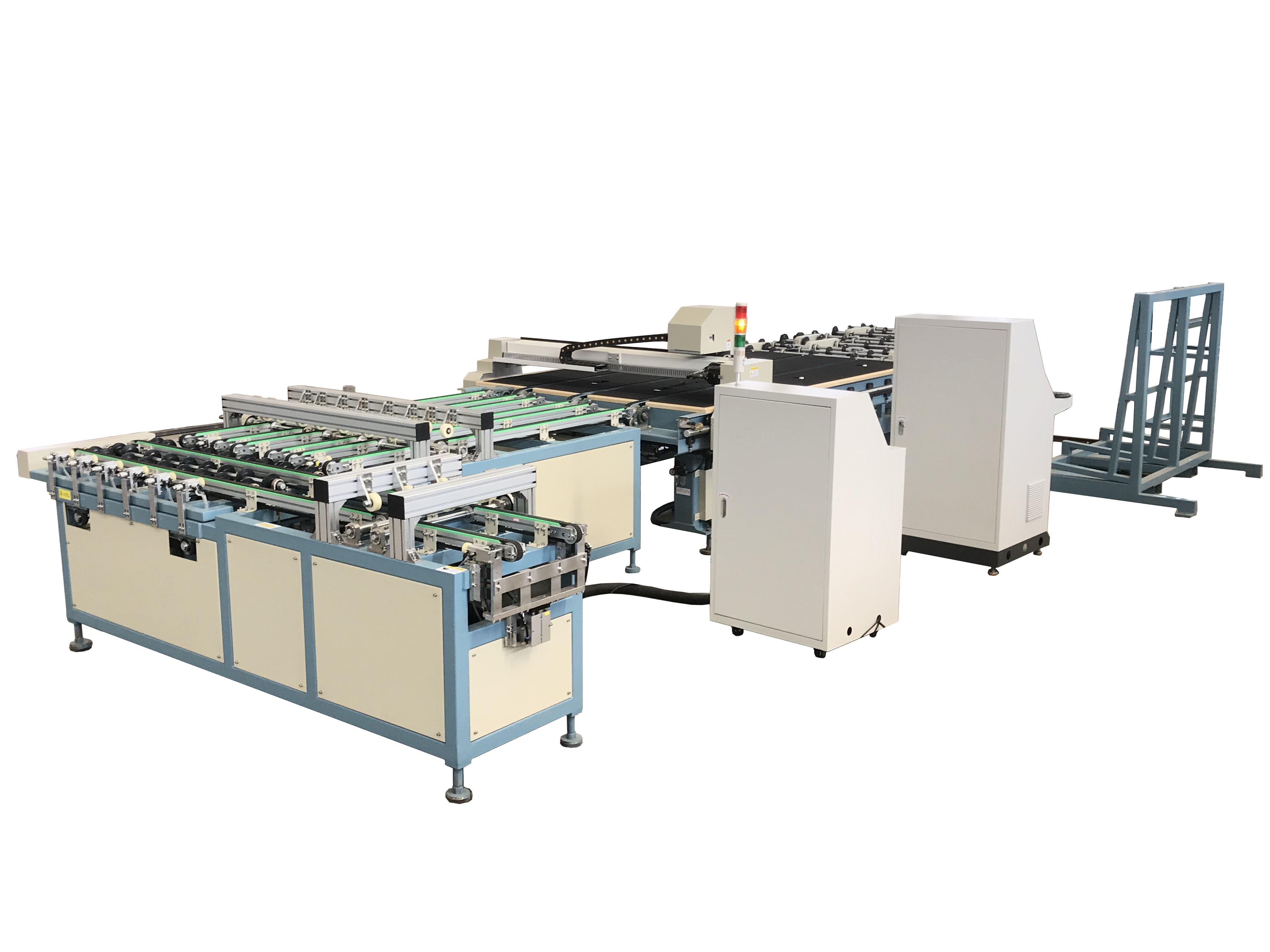

Production line composition:
SY-1813-U double flips single station full automatic sucker-type loading machine
SY-1813-C Full Automatic CNC Glass Cutting Machine
X-Break-Out Full-Automatic Breaking Machine
Y-Break-Out Full-Automatic Breaking Machine
Equipment detailed introduction:
SY-1813-U double flips single station full automatic sucker-type loading machine
1.1, mechanical configuration
Reverse sprocket chain: special high-precision reinforced transmission rubber wheel: imported PU material
Vacuum suction cup: Imported butadiene rubber material (double-adsorption structure) Transmission / turning motor: Domestic variable speed motor speed control
Vacuum pump: domestic-specific vacuum pump
1.2, electrical components
PLC controller: Taiwan Delta
Inverter: Taiwan Delta
Proximity switch: cable energy
Control cable: flexible shielded cable
AC contactor: CHINT
Pneumatic originals: The main originals are from Taiwan AirTAC
Positive and negative pressure sensor: Japan SMC
Touch screen: Taiwan Delta
1.3 Technical parameters
Minimum loading size: 1500 * 1200mm
Maximum loading size: 1830 * 1220mm
Loading thickness: 1.5-10mm Loading cycle: 40-60 seconds (adjustable)
Transmission speed: 0-40m / min (adjustable) Maximum suction pad depth: 600mm
Maximum loading load: 300KG Number of loading arms on one side: 3
Number of single-arm suckers: 3pcs
Upper flip arm: both sides
Loading station: single station
Installation power: 380V / 50HZ (special circumstances can be adjusted according to customer requirements)
Installation power: 8KW
Compressed air: 0.3Mpa-0.5Mpa
Vacuum pressure: -70- -90Kpa (adjustable according to glass thickness)
SY-1813-C Full Automatic CNC Glass Cutting Machine
2.1 Structure Introduction
Horizontal structure; rack and round guide drive; servo motor drive; X-Y-Z three-axis motion, motion control card control, computer operation.
2.2 Processing parameters
Maximum cutting size: 1830 * 1220mm Minimum size after cutting: 200 * 200mm
Cutting thickness range: 1.5-10mm (Cutter wheels of different thickness need to be replaced and the pressure is reset)
Straight parallelism: ≤ ± 0.2mm / m Diagonal accuracy: ≤ ± 0.45mm / m (The above accuracy is subject to the accuracy of the cutting line before the cymbal)
Cutting bridge speed: 0-120m / min. (Adjustable) Cutting bridge acceleration ≥3.0m / s²
The speed of the machine head is ≤160m / min, and the acceleration of the tool head is ≥6.0m / s²
The conveying speed of the belt is ≥40m / min, the positioning accuracy error of the cutting head is ≤ ± 0.15 mm
2.3 Power / Power
Installation power requirements: 380V / 50HZ
Equipment actual power: 8KW
Compressed air: 0.6PA
2.4 Mechanical configuration
Frame: square tube welding
Platen: Imported waterproof / fireproof plate (flatness of table surface ≤ ± 0.20mm / m)
Rack / rail: Japan KHK
Transmission belt / pulley: high quality domestic
Knife wheel / wheel clamp: Japan TOYO
2.5 Electrical configuration
Using Microsoft Windows interface, brand assembly computer
Motor: Three axes are selected from Japan's Yaskawa servo motor
Proximity switch: Yangming, Taiwan
Control card: American Galil motion control card
Main electrical parts: Zhengtai
Pneumatic proportional valve: Japan SMC
X-Break-Out Full Automatic Horizontal Separator
3.1 Product Features
This machine uses the upper straddle cutting line roller to hold, and the lower ejector mechanism. Up and down are pneumatically controlled. According to the collected data signals, the cut glass is cut off. The broken glass is transferred to the second section of the machine. After fully entering the second section, the side transfer rubber roller is lifted to transfer the glass to the longitudinal film machine.
3.2 Product configuration
Frame: National Standard Square Tube Welding
PLC: Taiwan Delta
Touch screen: Taiwan Delta
Transmission motor: Taiwan Delta Servo
Cylinder: domestic adjustable cylinder
Pressure wheel: Homemade POM wheel
Transmission timing belt: high-quality domestic
Holding: Polyurethane rubber wheel
3.3 Processing parameters
Original film processing range: ≤1830 * 1220mm
After the cymbal range: 456 * 404mm (can be designed according to the requirements of the customer)
Equipment installation power: 3kw
Beat: meet the entire line of beats
Y-Break-Out automatic longitudinal film machine
4.1 Product Features
This machine uses the upper straddle cutting line roller to hold, and the lower ejector mechanism. Up and down are pneumatically controlled. According to the collected data signals, the cut glass is cut off. The broken glass is transferred to the second section of the machine. After fully entering the second section, the side transfer rubber roller is lifted to transfer the glass to the next machine.
4.2 Product configuration
Frame: National Standard Square Tube Welding
PLC: Taiwan Delta
Touch screen: Taiwan Delta
Transmission motor: Taiwan Delta Servo
Cylinder: domestic adjustable cylinder
Pressure wheel: Homemade POM wheel
Transmission timing belt: high-quality domestic
Holding: Polyurethane rubber wheel
4.3 Processing parameters
Original film processing range: ≤500 * 1220mm
After the cymbal range: 456 * 404mm (designed according to the requirements of the buyer)
Equipment installation power: 3kw
Beat: meet the entire line of beats
