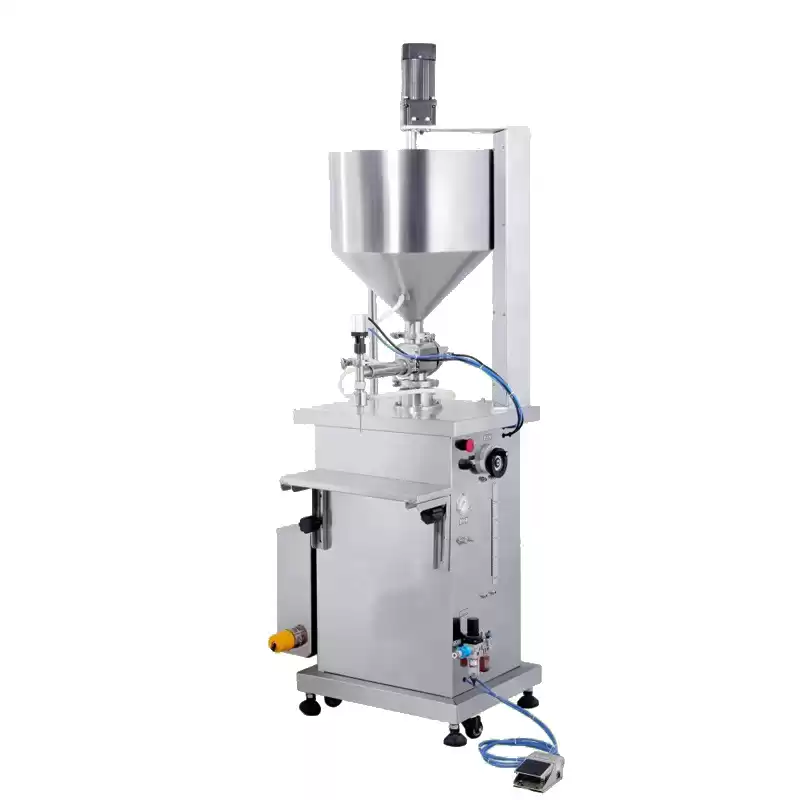

Automatic heating mixing cream paste filling machine

 Heating mixing filling machine is suitable for filling liquid, paste, cream and other high vicosity product which need heating while filling materials.



Automatic heating mixing cream paste filling machine

Customized And OEM Service Available

heated filling machine



Product Decriptions:

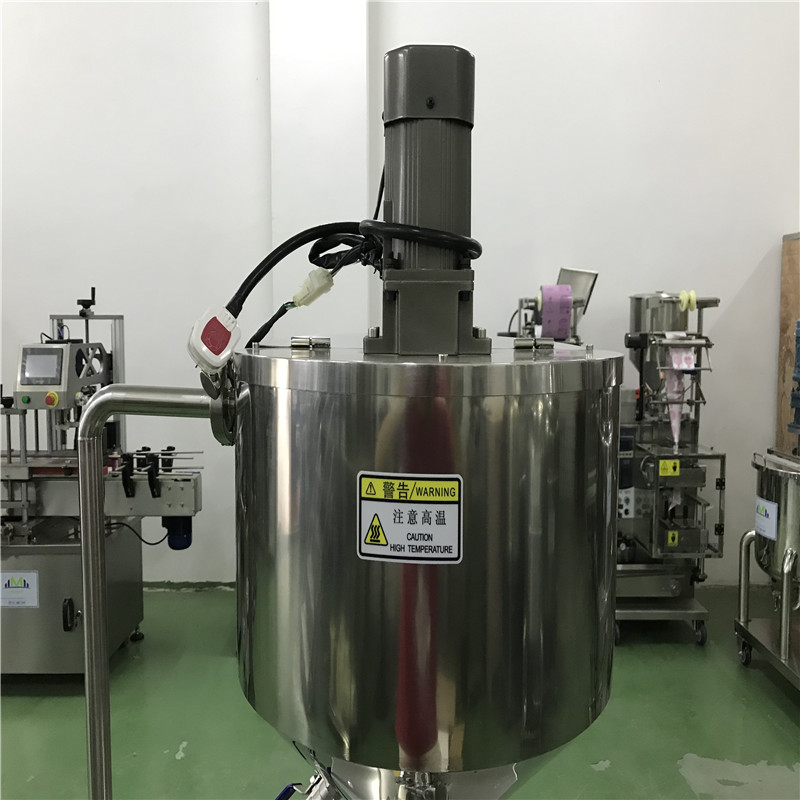

This Heated liquid filling machine is suitable for filling paste materials with high viscosity and poor fluidity. Its filling is pneumatic, and its hopper and barrel are insulated by electrically heated circulating water.

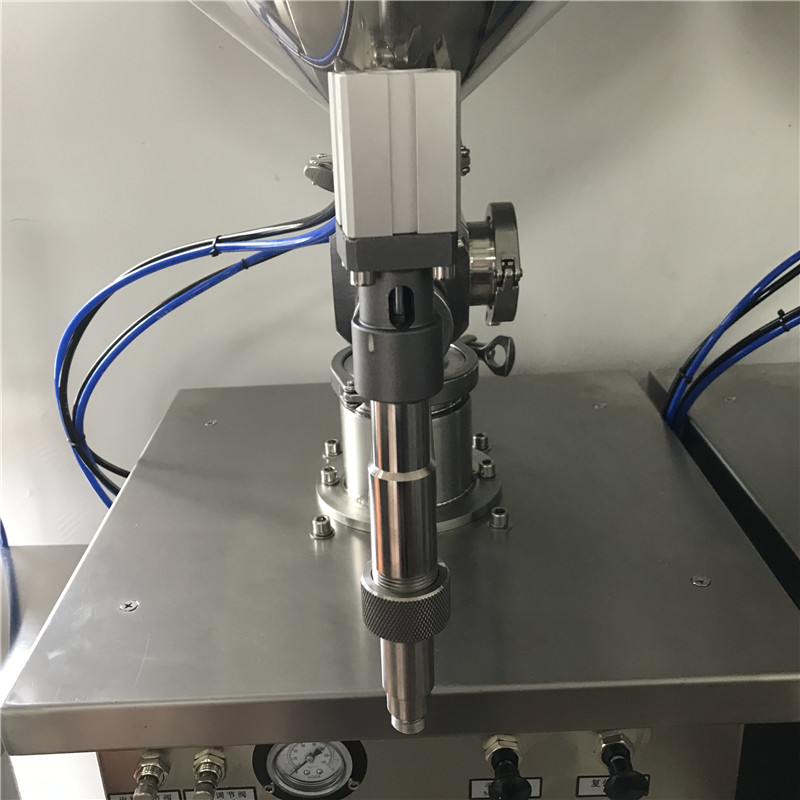

The hopper of this Vertical mixing filling machine is equipped with a frame mixing system and heating function. The machine is very clean, beautiful, easy to operate and meets GMP standards. Pneumatic components use Taiwan Air Tac brand piston, Japan SMC. Cylinder piston and material The cylinder is made of four polyethylene and 316L stainless steel.



Technical Parameter

Model

MZH-FH

Mixing power

220V  0.09(kw)

Raw water pump power

220V  0.37(kw)

Heating power

                   5000 (kw)

Filling volume

100gm-1000gm(can be adjusted as customer request)

Filling mouth

1

Dimension

650×580×2100(mm)

Bottle height

adjustable(mm)

Bottle diameter

adjustable(mm)

Capacity

20-40bot/min

Filling precision

±1.5%

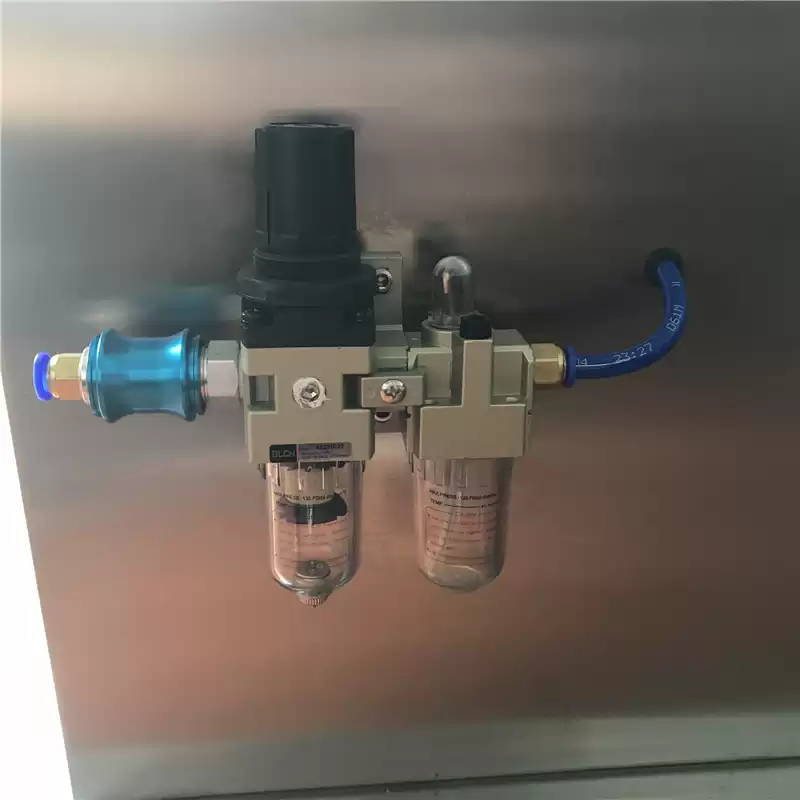

Air source pressure

0.8Mpa

Working pressure

0.6 MPa≦

I. Main parts detail

Piston

Airtac- Taiwan

Temperature Controler

Omron -Japan

Electric elements

Schneider-France

Heating Motor

China Joint venture brand

Body material

316 L GMP standard

Stamp Press

STNC-Shanghai
