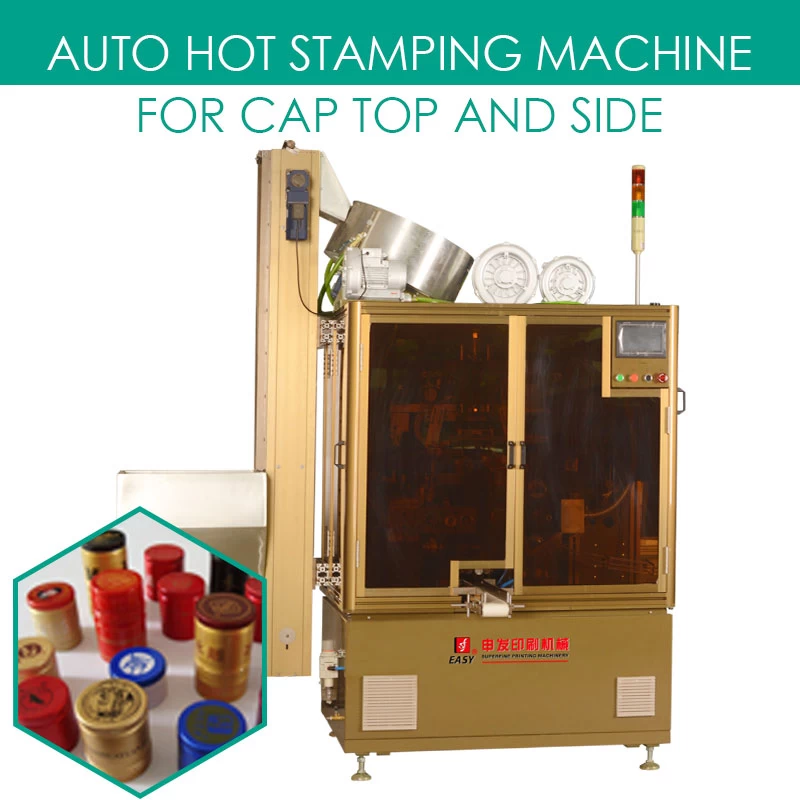

Automatic Hot Stamping Machine for Cap Top and Side

This series Automatic hot stamping machine design for different kinds of caps, like plastic caps, aluminum caps etc. It can be choose the cap side stamping or both side and top stamping function as customer need.

SF-AHR80B Automatic hot stamping machine for cap side stamping

SF-AHR80T Automatic hot stamping machine for cap top stamping

SF-AHR80BT Automatic hot stamping machine for cap side and top stamping



Feature

◆ The series stamping machine can stamping cap body or top or both of them together, adopted Indexer rotating design, equipped auto loading and unloading system, combined with PLC control.

◆ Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical  parts made by CNC directly from CAD design.
◆ Adopted touch screen interface. Quick setup & quick toolings change over.
◆ Adopted with No-object No-printing system, auto counter, safety guard, out of working alarm device.

◆ Heat transfer unit: servo motor right-left registration, automatic loading system, auto hoper for caps and other customizations due to order.


Technical Data

Model: SF-AHR80BT

Product size:φ(22-45)x (25-70)mm

Max. speed:60pcs/min

Air pressure:5-7bar

Power:AC380V 50/60Hz 8Kw

Dimensions:2300x1800x1800mm

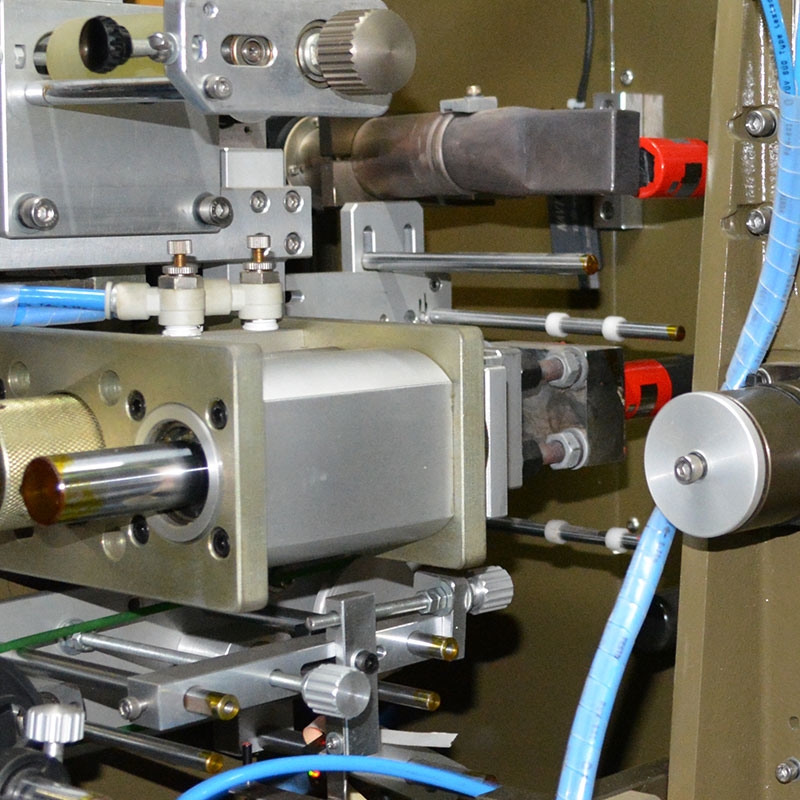

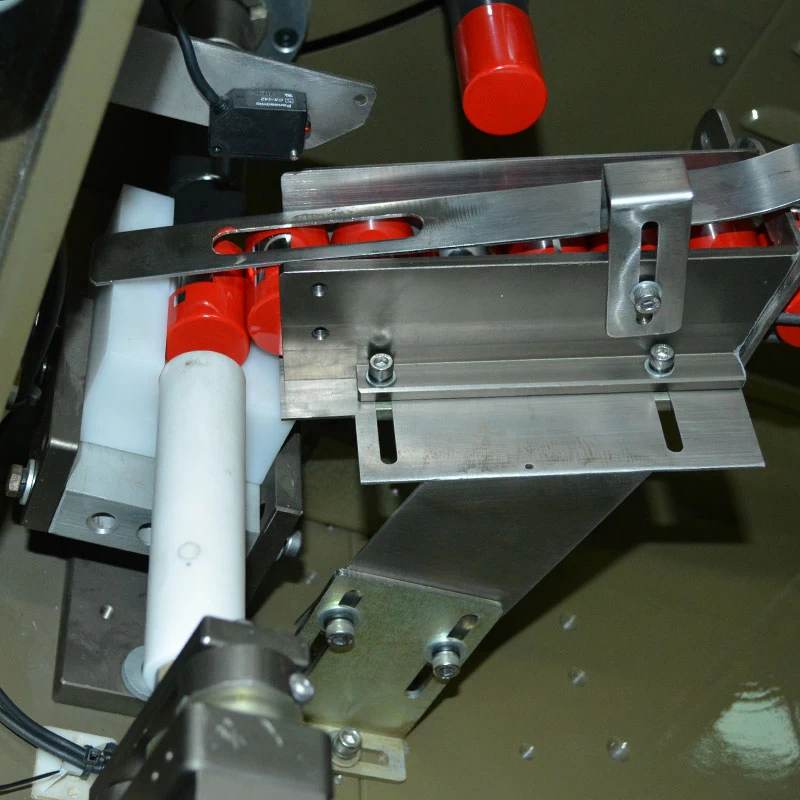

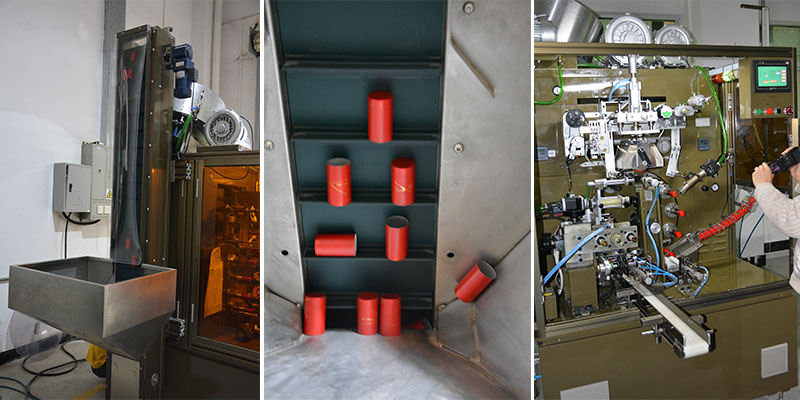

Auto loading system

Auto loading system

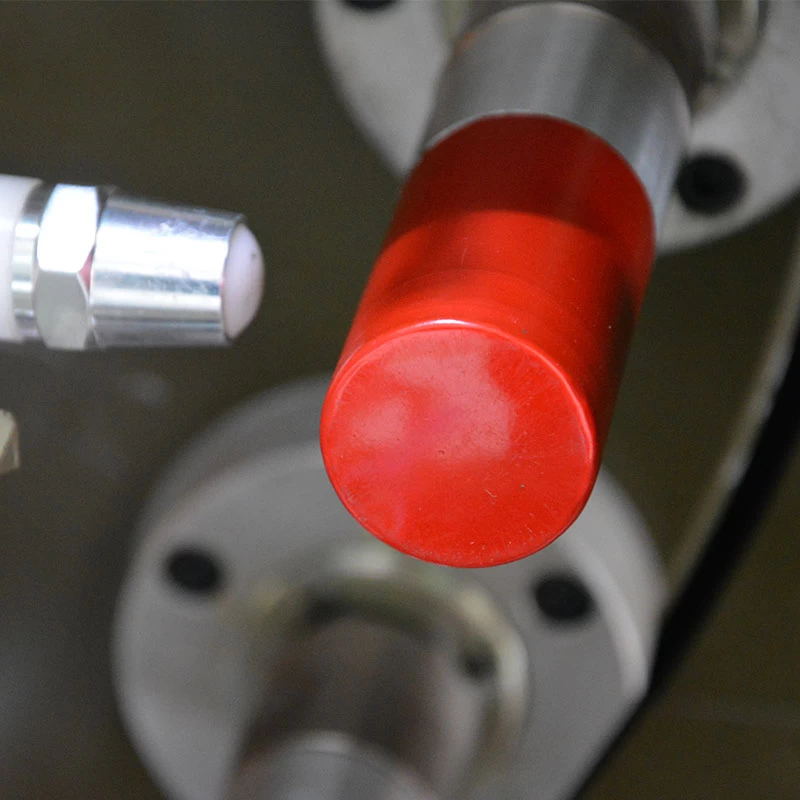

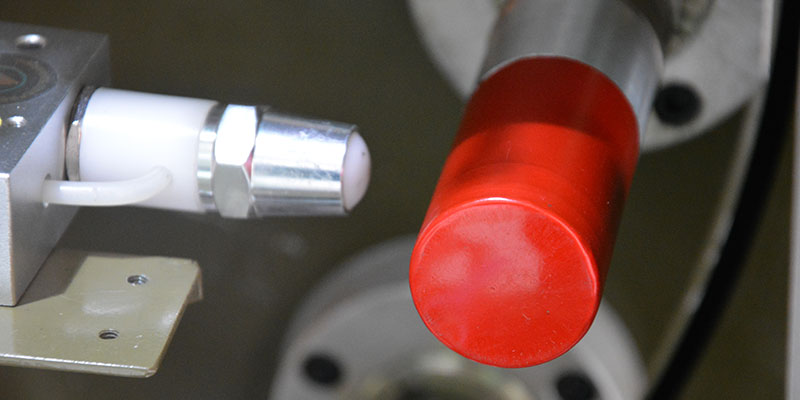

Anti-static System

Anti-static System

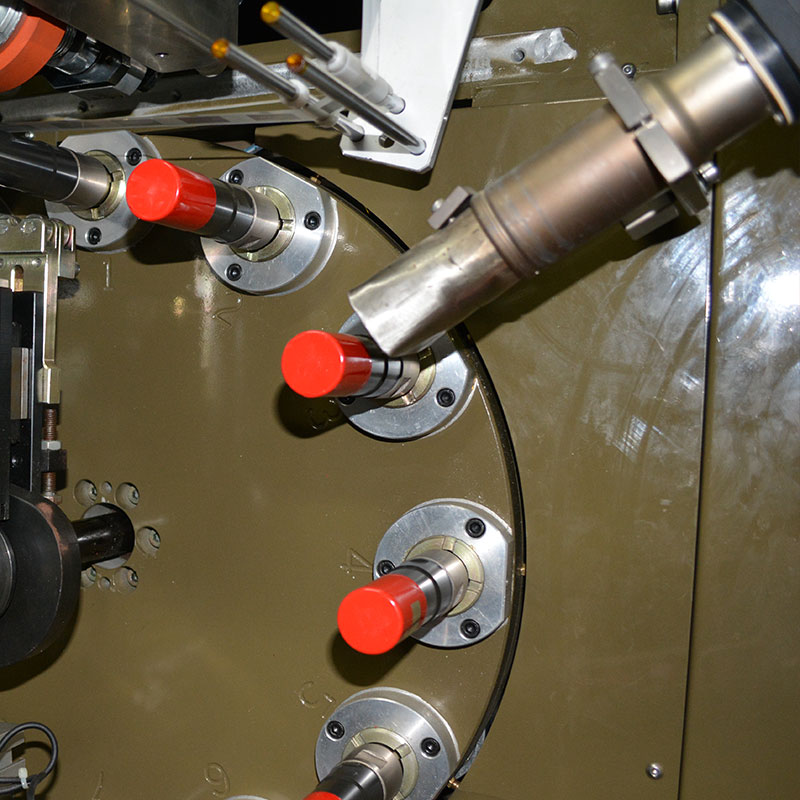

Hot air device

Hot air device

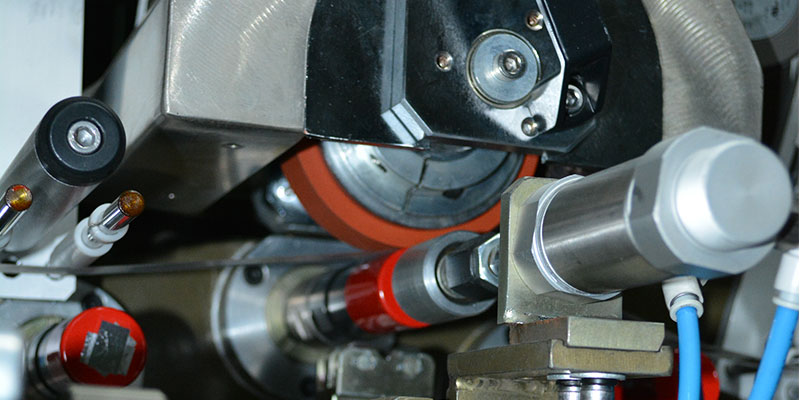

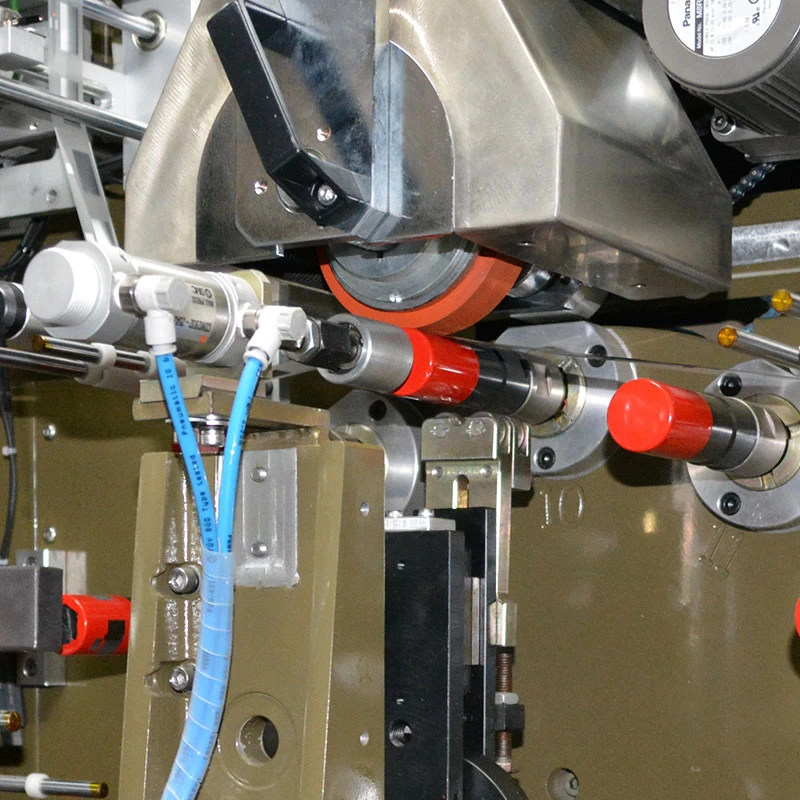

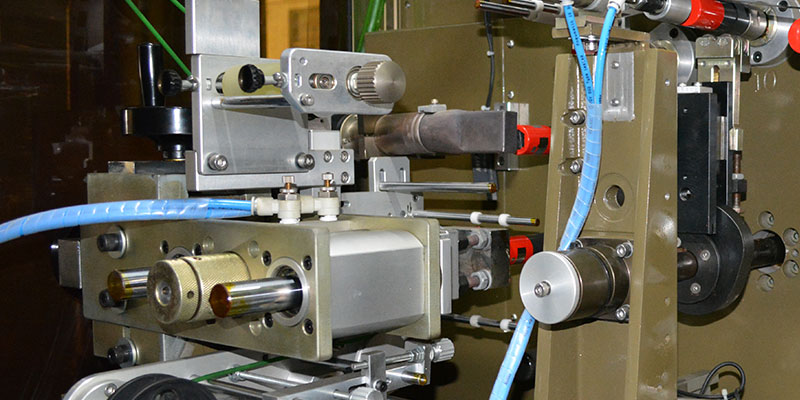

Cap Side Hot-stamping

Cap Side Hot-stamping


Cap top Hot-stamping

Cap top Hot-stamping

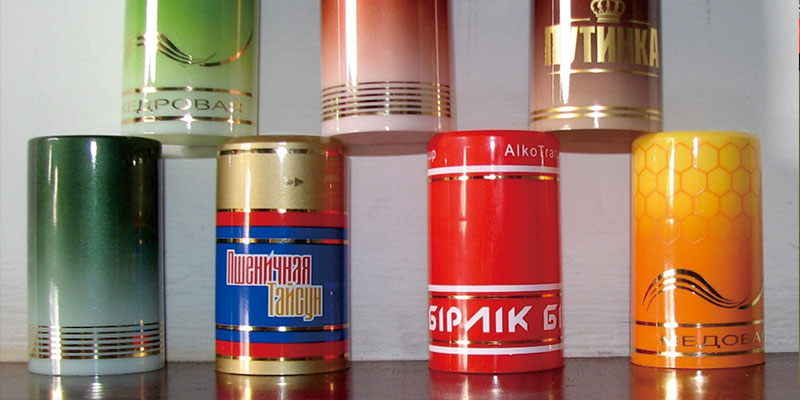

Printing sample

Printing sample


Machine running video
