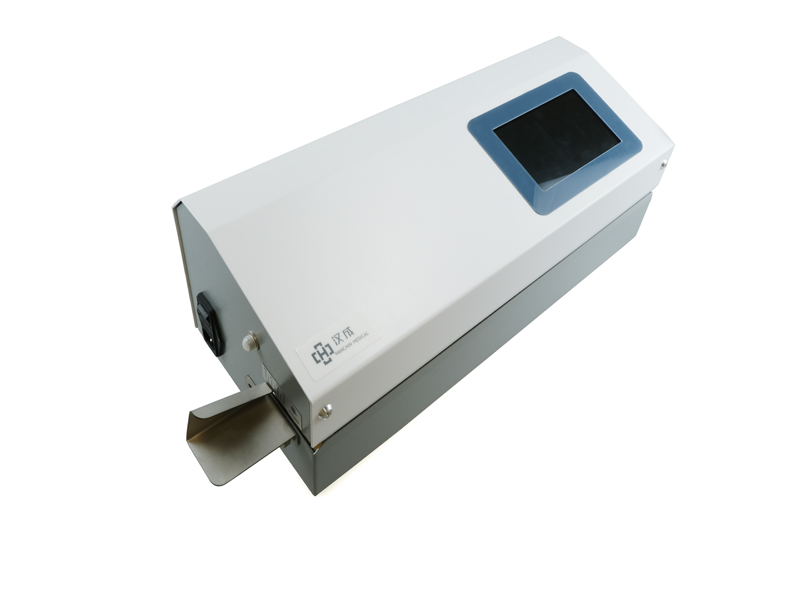

Automatic medical heat sealing machine with printer

Hanchin sealing machine with built-in printer are specially designed to meet the demand of  high volume operations in hospitals and medical device industries.


Common sterilization packaging processes require traceability of sealed pouches to ensure patient/medical device safety and control all time. The built-in printer Sealers ensures the end-user that all essentials data needed for traceability can be printed on the back side of the pouch.



Technical Parameter:

Sealing speed: 10±0.5 m / min

Sealing margin: 0~35 mm adjustable

Working temperature: 60~220℃adjustable

Temperature control accuracy:≤ ±1%

AC power supply: 220V±10% 50Hz

Sealing width: 12 mm

Maximum current: 3.2A

Insurance wire: 5A×2

Power: 500 W

Dimensions: 560×260×220mm


Printing system functions:

  • With dual operating systems in Chinese and English, can be switched at will. It can print Chinese characters and symbols under the Chinese operating state, and in English operating state, it can print English and symbols;
  • Chinese, English, numbers, and special character printing functions in accordance with "YY0466-2003 Medical Devices Used in Medical Device Labeling, Marking, and Information-Providing Symbols" can meet the sterilization date, expiration date, and sterilization batch required by the Ministry of Health , Sterilizer number, operator code and other printing functions;
  • The sterilization date and expiration date can be adjusted automatically according to the settings, and the leap month and size month can be adjusted automatically;
  • It comes with Chinese and English printing system for sealing machine, built-in a 24-pin printer, clear printing, easy and fast to set printing items, adjustable printing font width, convenient for printing more content to relatively narrow bags, printing function Key close can also close an item as needed, flexible, convenient and fast;
  • The system will give the print width value according to the selected print content, automatically calculate the minimum printing bandwidth, help the operator determine the number of items before printing to select the appropriate paper-plastic bag, and realize the reminder before sealing when the paper-plastic bag width is insufficient.
