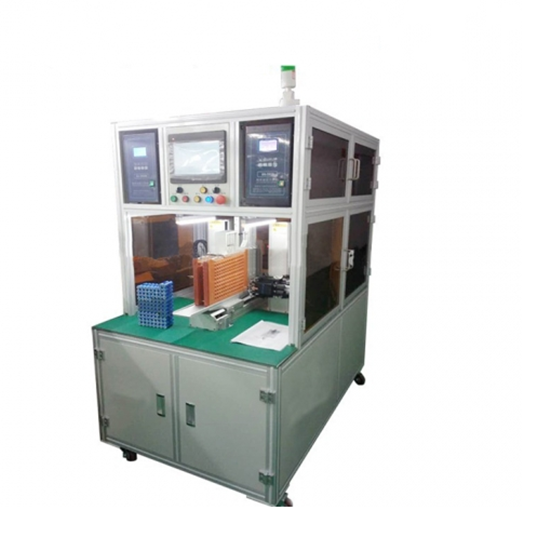

Automatic Numerical Control Double Sides Spot Welder for 0.1-0.25mm Nickel Strips Welding for E Bikes Battery


This machine is used for 18650 battery pack automatic spot welding, it can weld both side together with high speed and good effect.

FEATURE

1. Support breakpoint start, support automatic start and manual start mode conversion.

2. It has a false spot welding and out of spot welding alarm function.

3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4. Welding needle replacement forecast reminder.

5. Own welding current monitoring system, real-time monitoring of welding current.


SPECIFICATION

Model

TMAX-DH-20000

Y-axis travel

500mm

Z-axis travel

400mm

Spot welding speed

0.3s / point; 5000pcs / h

Maximum speed of motor drive

1000mm/s

The maximum number of batteries loaded

300pcs (standard 18650 lithium battery)

Number of groups for storing files

999 groups

Operating system

Embedded system + man-machine screen

Transmission

Stepper + imported precision linear guide (optional servo + screw)

Power supply

Single-phase  220V ± 10% / 50Hz ± 10%

Air supply

0.3 ~ 0.4Mpa

Weight

400KG

Dimensions

900mm*1100mm*1800mm
