AUTOMATIC PALLETIZING SYSTEM
AUTOMATIC PALLETIZING SYSTEM CAPACITY LIST
Brick specifications
|
Pallet size and Capacity
|
Pallet size and Capacity
|
Pallet size and Capacity
|
|
Solid brick
240x50x115mm
|
size for each layer: 960*960mm
76 pieces per layer, 52 pieces perforated layer;
15960 pieces per hour, 888 pieces per 12 layers
|
size for each layer: 1200*1200mm
120 pieces per layer, 96 pieces perforated layer;
20160 pieces per hour, 1216 pieces per 12 layers
|
|
|
Color brick
100x200*60mm
|
size for each layer: 800*800mm
32 pieces per layer, 20 pieces perforated layer;
6720 pieces per hour, 692 pieces per 22 layers
|
size for each layer: 1000*1000mm
50 pieces per layer, 35 pieces perforated layer;
10500 pieces per hour, 1085 pieces per 22 layers
|
size for each layer: 1200*1200mm
120 pieces per layer, 96 pieces perforated layer;
25200 pieces per hour, 1416 pieces per 22 layers
|
|
concrete Block
390x190*190mm
|
size for each layer: 800*800mm
8 pieces per layer, 6 pieces perforated layer;
1680 pieces per hour, 54 pieces per 7 layers
|
size for each layer: 1200*1200mm
18 pieces per layer, 12 pieces perforated layer;
3780 pieces per hour, 120 pieces per 7 layers
|
|
|
With brick
190x50x115mm
|
size for each layer: 950*950mm
95 pieces per layer, 65 pieces perforated layer;
19950 pieces per hour, 1210 pieces per 12 layers
|
size for each layer: 1140*1140mm
132 pieces per layer, 96 pieces perforated layer;
27720 pieces per hour, 1548 pieces per 12 layers
|
|

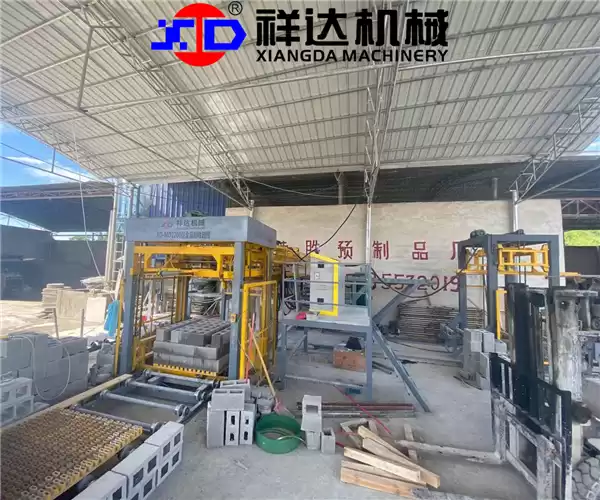

AUTOMATIC PALLETIZING SYSTEM DETAILS SHOW

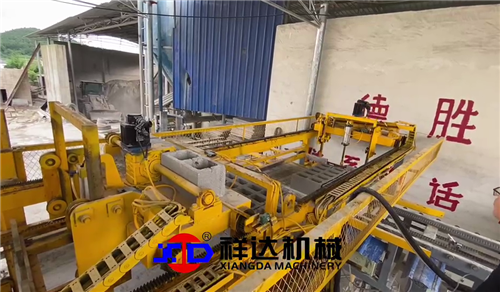

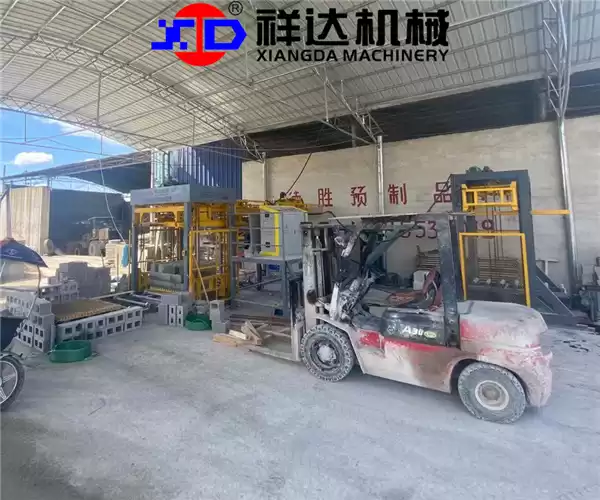

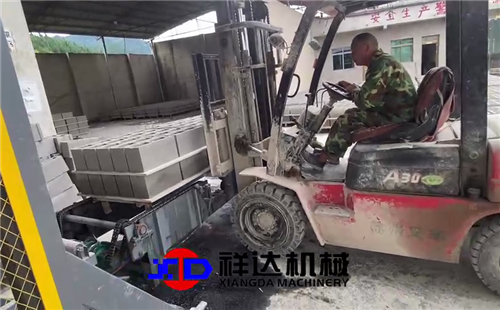

Used forlift put the block on the machine and The lifting machine will take the block into the palletizing system

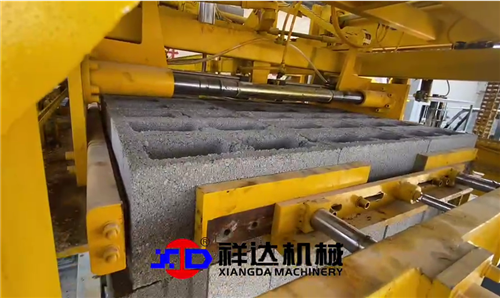

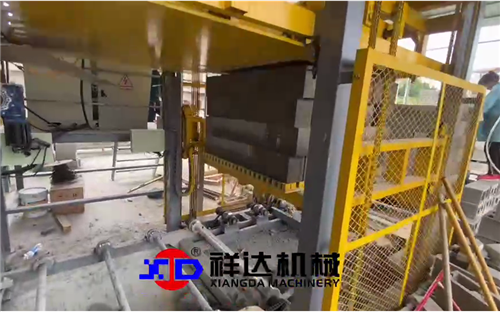

The First push ,make the block and pallet separate.

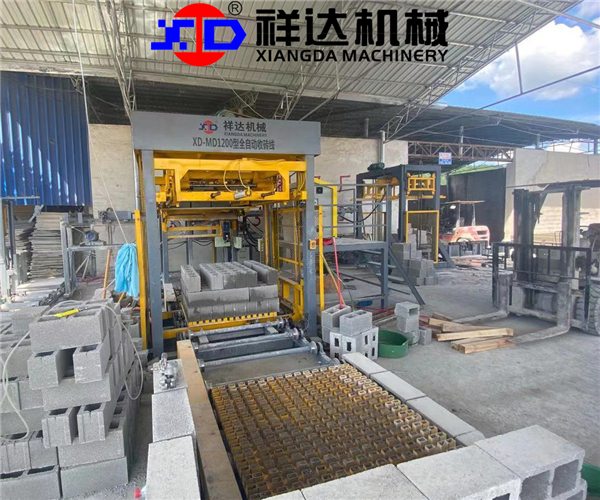

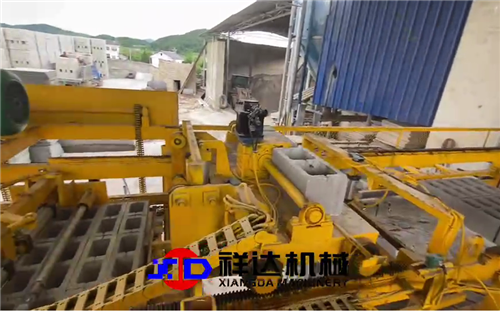

The second push, CNC programming intelligent segmentation and go into the turntable

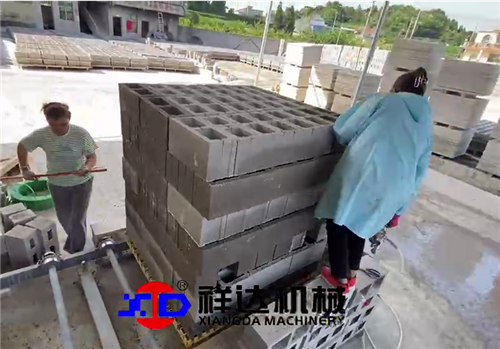

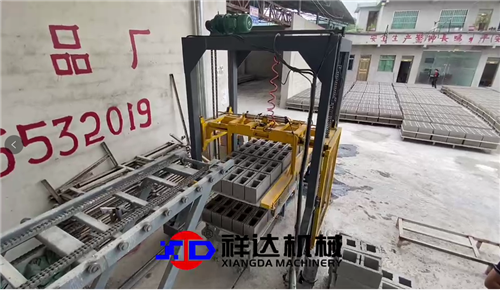

After the machine finish palletizing ,two worker will assist to packing the block with PP tape.

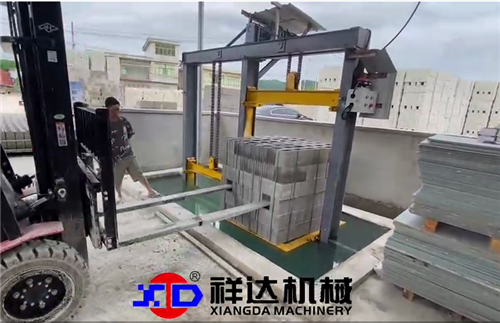

Then forklift take to the water pool for maintenance.

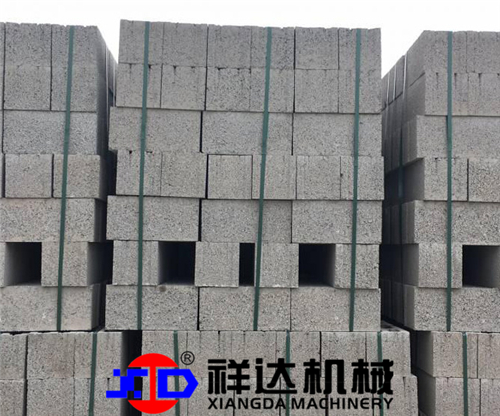

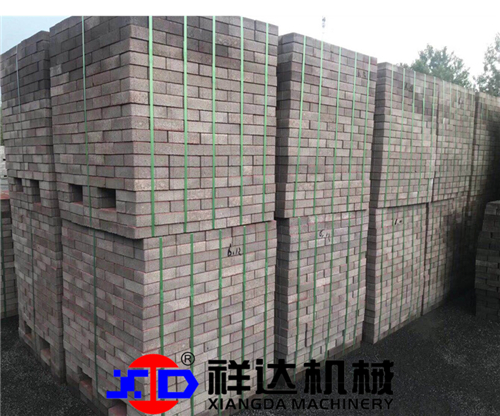

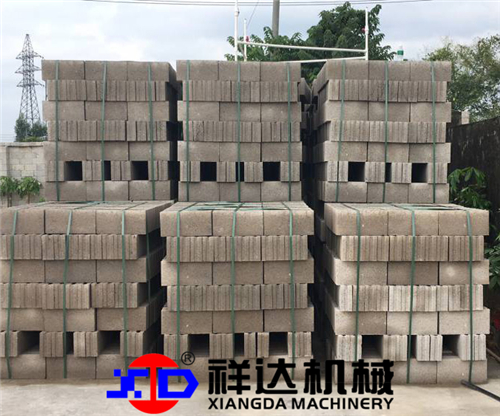

AUTOMATIC PALLETIZING SYSTEM FINAL PRODUCT SHOW
