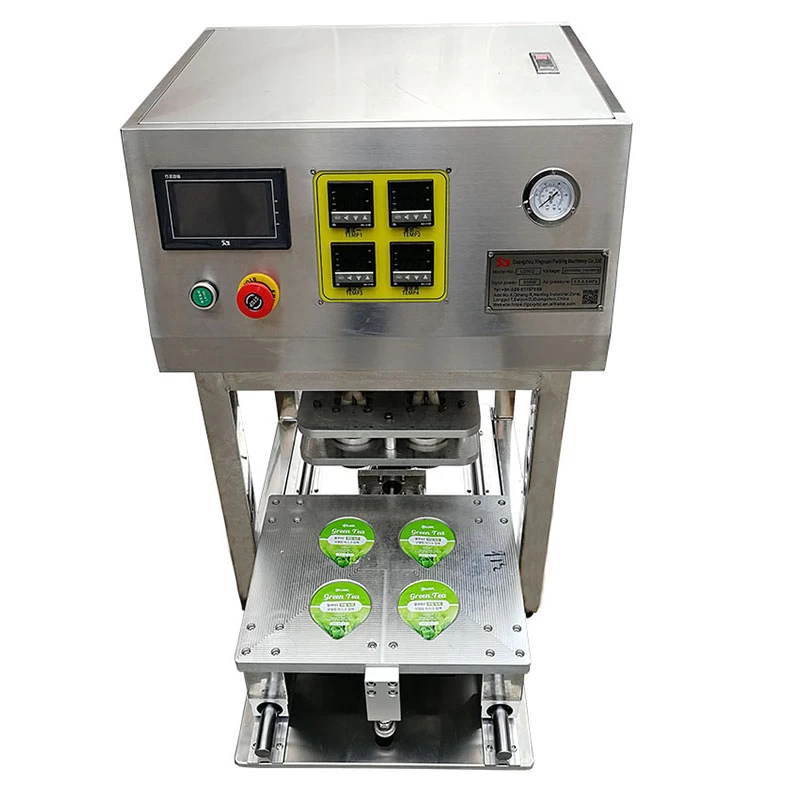

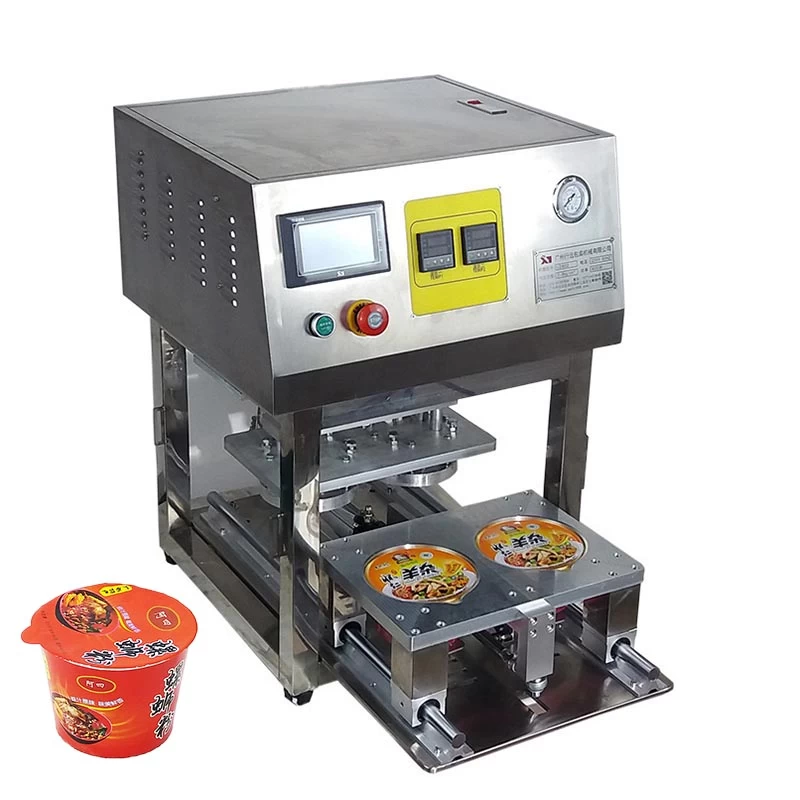

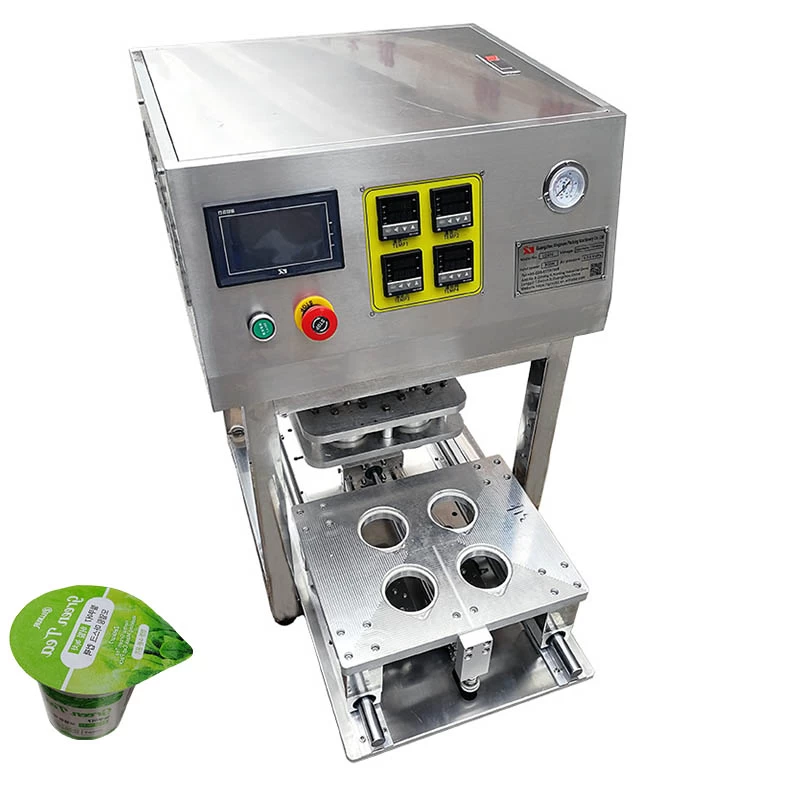

Automatic paper cup top heat sealing lid machine

Automatic paper cup top heat sealing lid machine for packing  paper  bowl/cup top with foil lids.



Product Item:Automatic paper cup top heat sealing lid machine

Automatic paper cup top heat sealing lid machineAutomatic paper cup top heat sealing lid machine

Automatic paper cup top heat sealing lid machineAutomatic paper cup top heat sealing lid machine

Description

What features of Automatic paper cup top heat sealing lid machine?

  1.     Special produced according to customer’s requirement.
  2.      All stainless steel construction.
  3.      Highly automation: auto cup sealing,auto mould push/pull out-in.
  4.      Easy operation, high sealing precision.
  5.      Screen touch control panel.
  6.      Pneumatic and heating seal.



Operation:

  1.    Take cups into the mold cavities by hand,manual put lids.
  2.     Piston system:remove into seal automatic.
  3.     Take out: Slide out sealed cup automatic.
  4.     Sealing temperature and time adjustable via control panel.



What applications of Automatic paper cup top heat sealing lid machine ?

  1.     Container can be round,rectangular,square, paper cup or plastic cup possible.
  2.     Widely use in food industries, beverage, pharmaceutical ,cosmetic.



Options:

  1.    Stainless steel can be 201,304,316.Standard is SS201 .
  2.     Lid type :pre-cut lid,aluminum foil, paper.



Why choose us ?

  1. We are China leading Packing Machines Manufacturer ,over 17 years in this field.
  2. Alibaba Assessed Gold Supplier.
  3. 100% QC inspection before shipment.
  4. Best Quality &Best Service with Competitive Price.
  5. Fast delivery time.
Technical parameters

Technical Specifications

Model

LD802B

Voltage(V)

AC110-220V/50-60Hz

Power(W)

500-1000W

Cup sealing size (mm)

50-250mm as customer's requested

Packing speed(cups/hour)

400-800

Sealing materials

PP,PE,PET,PS and etc.

Working temperature

0-300 ℃

Air pressure range

0.5-0.8Mpa

Net Weight(kg)

90kg

Machine dimension(mm)

850*600*750mm
