Product Introduction
1. The fuselage mechanism is more compact: it is smaller than the traditional automatic grinding type, reducing unnecessary space waste!
2. Higher production efficiency: grinding and throwing and speeding into the board, the daily output can reach 800-1000 square meters!
3. Grinding and polishing is more attractive: with the right abrasive, the gloss can easily reach 100 degrees!
4. Low production cost: the diamond cutter head can be quickly loaded into the grinding head without brazing, which not only saves the time of grinding head replacement, but also saves the cost of brazing!
5. Stable performance of equipment: The main originals are all famous brands, the moving auxiliary guide rail is high-precision linear guide rail, the grinding and polishing pressure is directly driven by the main shaft, and the service life is longer and smoother.
6. High degree of intelligence: automatic memory function makes it possible to continue the work of the original station after restarting after abnormal stop in the middle, automatic fault alarm and prompt the fault location and solution!
7. Simple operation: Using the touch screen interface, whether it is parameter setting or equipment abnormal work report, user operators can easily realize man-machine dialogue!
Technical Parameters
|

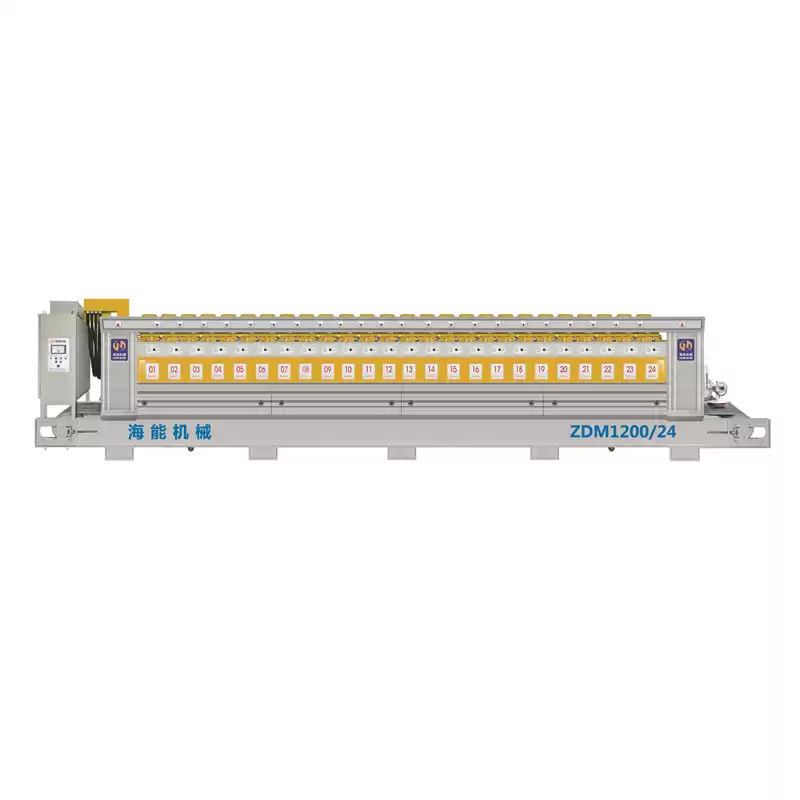

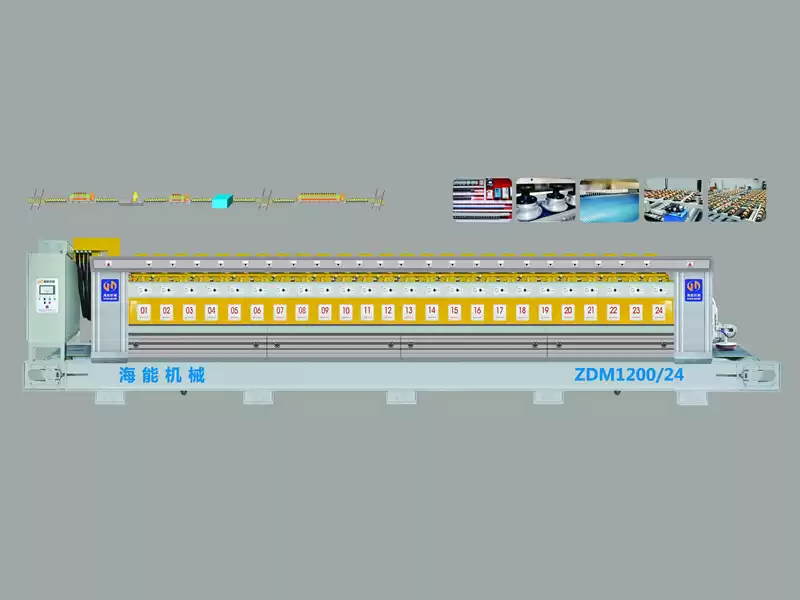

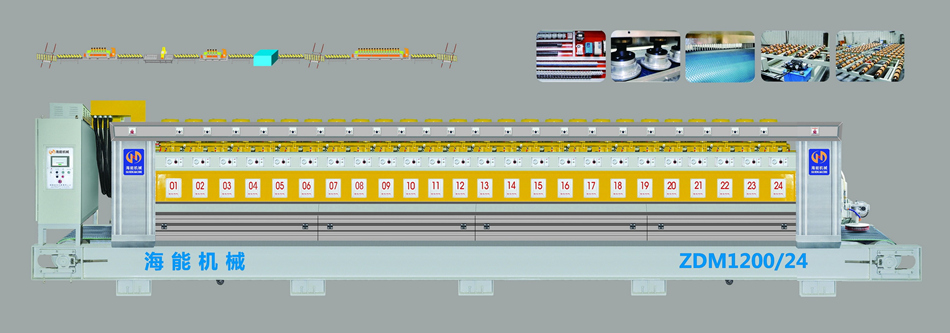

Automatic Polishing Machine For Granite
|
|
Type
|
unit
|
ZDM1200/08
|
ZDM1200/12
|
ZDM1200/16
|
ZDM1200/20
|
ZDM1200/24
|
|
No. of grinding head
|
pcs
|
8
|
12
|
16
|
20
|
24
|
|
Grinding head diameter
|
mm
|
Φ200
|
Φ200
|
Φ200
|
Φ200
|
Φ200
|
|
Grinding plate width
|
mm
|
1200
|
1200
|
1200
|
1200
|
1200
|
|
Grinding plate depth
|
mm
|
10-60
|
10-60
|
10-60
|
10-60
|
10-60
|
|
Beams swing speed
|
m/min
|
3-35
|
3-35
|
3-35
|
3-35
|
3-35
|
|
Speed into the boards
|
m/min
|
1-4
|
1-4
|
1-4
|
1-4
|
1-4
|
|
Cooling water pressure
|
Mpa
|
0.1-0.15
|
0.1-0.15
|
0.1-0.15
|
0.1-0.15
|
0.1-0.15
|
|
Air supply pressure
|
Mpa
|
0.85
|
0.85
|
0.85
|
0.85
|
0.85
|
|
Power of main motor
|
kw
|
7.5
|
7.5
|
7.5
|
7.5
|
7.5
|
|
Total power
|
kw
|
7.1
|
101
|
132.5
|
170
|
194
|
|
Water consumption
|
m³/h
|
12
|
18
|
25
|
31
|
37
|
|
Dimension (L×W×H)
|
mm
|
5300×3200×2500
|
6600×3200×2500
|
7900×3200×2500
|
9200×3200×2500
|
10500×3200×2500
|
|
Total weight
|
kg
|
12000
|
13000
|
14000
|
15000
|
16000
|
|

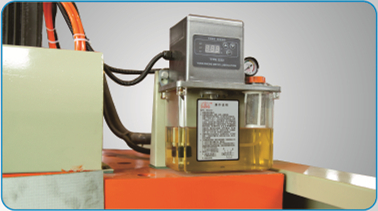

1. Automatic oil supply system. All machinery lubricating parts of this machine can be freely set the needed for oil lubrication intervals and the oil supply time on the setting list of the grinding head on the touch screen.
|
|

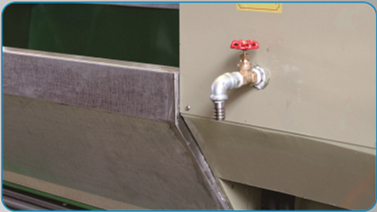

2.Add linear guide rail oil outlet. Customers can change oil fast after using a period of time, so that you can always keep track the cleanliness of the pool, to effectively extend the life of the linear slide.
|
|
3.Add night-lighting facilities, Lighting facilities of this machine has the three characteristics of explosion-proof, waterproof and dustproof. Lamps support angle can be adjusted according to the customers’ requirement;

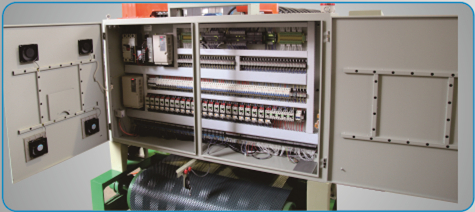

Electric thermostat system. The electrical box using the double suction and double exhaust type cooling fan, making various electrical accessories in the box working always in a constant state. Greatly extend the service life.
|
|

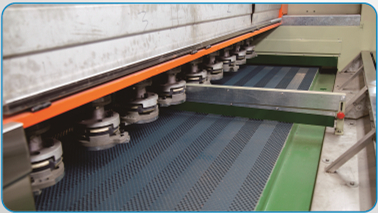

4.Grinding head water separation mechanism. This structure can be adjusted freely to meet the 15-55mm plates in the effective water separating frictionless through.
|
|
5.Air conditioning cleaning agencies. This hair dryer is used in multi-blade centrifugal fan, its emissions of up to 3000m/h, making the plates dry and clean when coming out.
|
|
6.Automatic testing system for detecting switch. The machine satisfy customers any adjusting for the plates of different thickness between 10-100mm.
|
Loading photos
