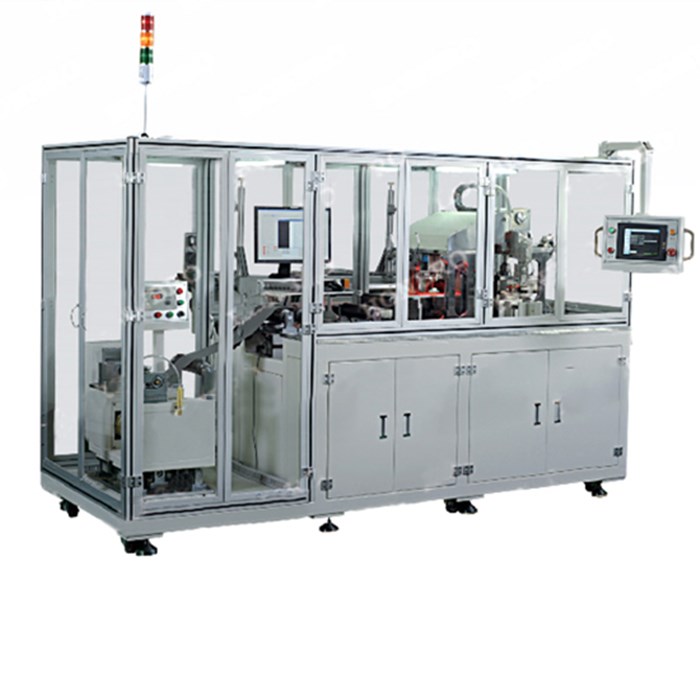

Automatic Pouch Cell Lithium Battery Electrode Die Cutting Machine
Functions
● This equipment is suitable for lithium ion battery gap coating, separated rolling she atically stacked in the feed box;
Highlights
● Adopts frequency conversion motor automatically put volume, and with functions of rectification
● Floating roller tension closed-loop control material, and storage of material function
● High precision color optical testing positioning, fixed-length feeding servo for roller, and strip anti-skid functions
● Sheet piece by cutting mold and sheet mold blanking forming at one time
● Dual manipulator auto stacked sheet piece into the slot
● Timely according to the height of laminated manger
● Capacity: 25 to 40 times/min
● Die adopts aviation aluminum alloy, reducing mold weight, decreasing mold impact
● Adopt independent fixed feeding roller compaction, tear open outfit and convenient maintenance
Technical Parameters：
|
ITEM
|
HBCQJ-200
|
HBCQJ-350
|
HBCQJ-450
|
|
Measure
|
1950*1350*1950mm
|
2200*1700*1950mm
|
2200*2200*1950mm
|
|
weight
|
About 1.5T
|
About 2.2T
|
About 2.8T
|
|
rate
|
3.5KW
|
3.5KW
|
4KW
|
|
power
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
|
Air source
|
≥0.6Mpa,260L/s
|
≥0.6Mpa,300L/s
|
≥0.6Mpa,350L/s
|
|
Vacuum source
|
≤-0.09Mpa,10L/Min
|
≤-0.09Mpa,10L/Min
|
≤-0.09Mpa,10L/Min
|
|
Applicable range
|
Length 90-350 width 40-200mm
|
Length 100-350 width 60-350mm
|
Length 100-350 width 80-450mm
|
|
Equipment capacity
|
20-40times/Min
|
20-40times/Min
|
15-35times/Min
|
|
Equipment optimal rate
|
≥98%
|
≥98%
|
≥98%
|
|
Burr precision
|
≤0.019mm
|
≤0.019mm
|
≤0.019mm
|
|
Mould life
|
Above 300 million times
|
Above 300 million times
|
Above 300 million times
|
