Introduction

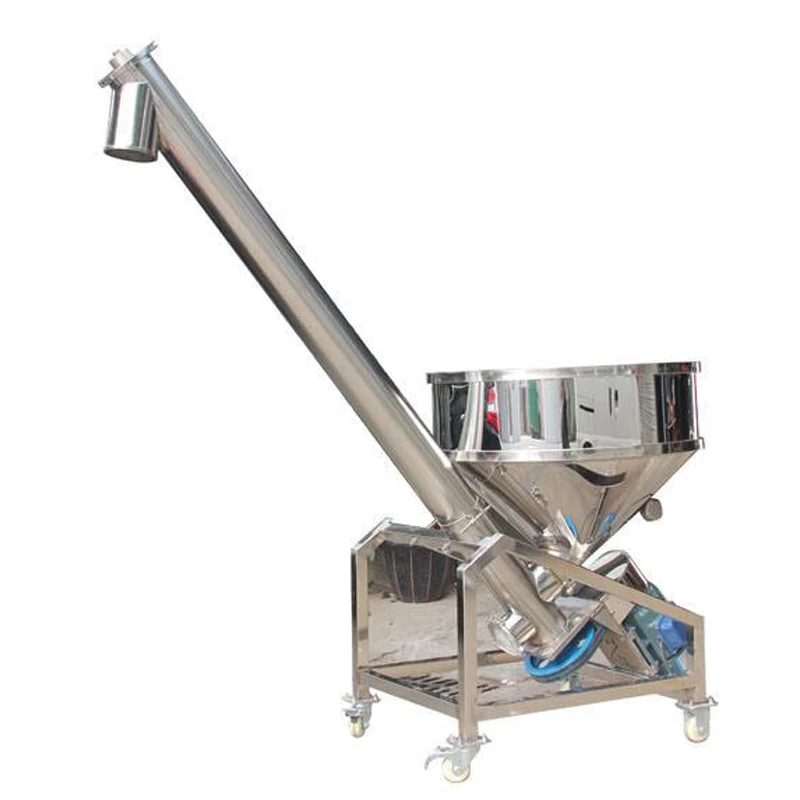

The Powder Conveyor Screw Feeder is inclined screw elevator applied to transport powder product from one station to the other!
Features
- Power Supply: 3 Phase 208-415V 50-60Hz
- Charging angle: Standard 45 degree, 30~60 degree are also available.
- Lifting Height: Standard 1.85 meters,1 – 5 M could be designed and manufactured
- Food grade Conveying screw, Mixer and power box are optional.
- Standard hopper volume 200L, 50-500L are optional.
Specifications
|
Model
|
DH-S2-2K
|
DH-S2-3K
|
DH-S2-5K
|
DH-S2-7K
|
DH-S2-8K
|
DH-S2-12K
|
|
Charging Capacity
|
2m3/h
|
3m3/h
|
5 m3/h
|
7 m3/h
|
8 m3/h
|
12 m3/h
|
|
Pipe Diameter
|
φ102
|
φ114
|
φ141
|
φ159
|
Φ168
|
Φ219
|
|
Total power
|
0.61KW
|
0.81W
|
1.56KW
|
2.26KW
|
3.06KW
|
4.06KW
|
|
Total Weight
|
100KGS
|
130KGS
|
170KGS
|
200KGS
|
220KGS
|
270KGS
|
|
Hopper Volume
|
100L
|
200L
|
200L
|
200L
|
200L
|
200L
|
