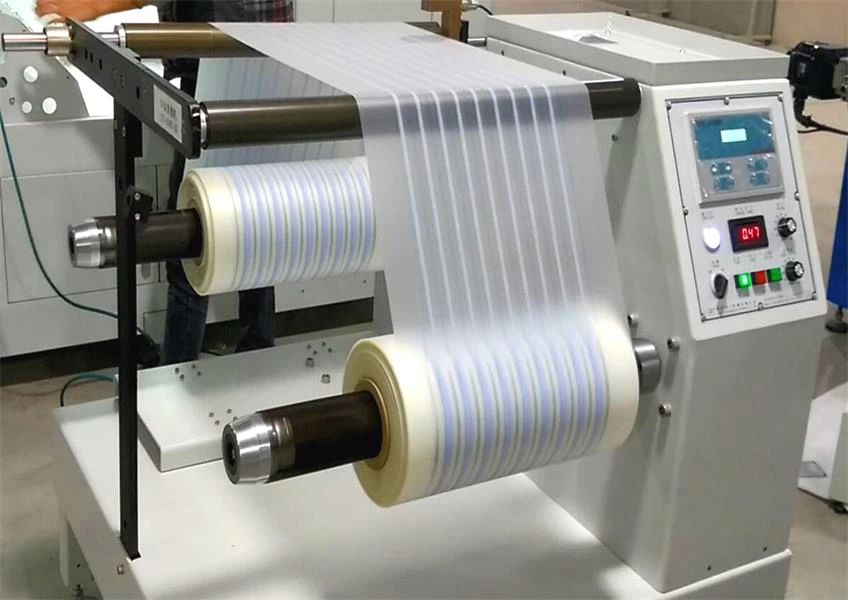

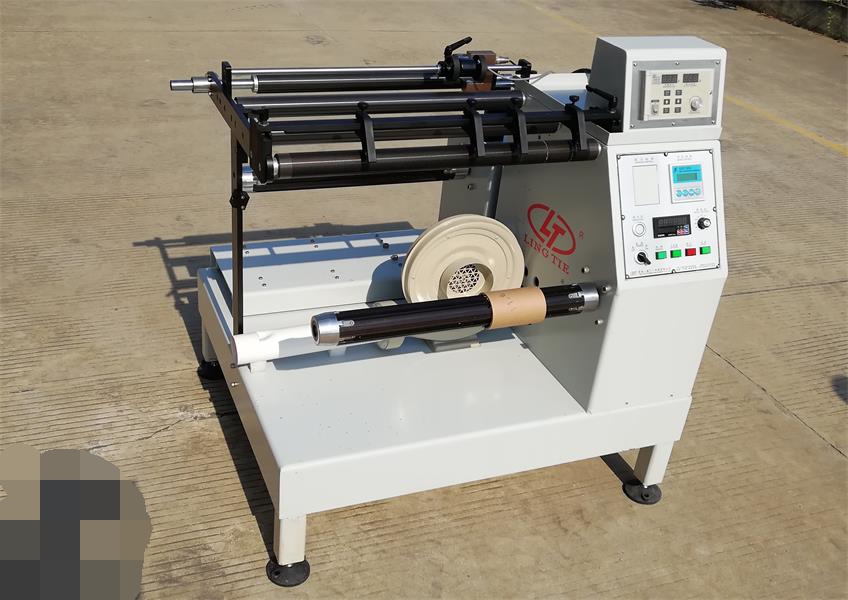

Automatic Rewinding Machine with Web Guide Introduction

1. Unwinding & rewinding air shaft 3" diameter.

2. Air shaft for max.roll width 600mm, max.roll diameter 500mm, max.roll weight 70kg.

3. Sensor adopted for web guide. It works for transparent and non-transparent materials.

4. Magnetic powder brake is used for tension control during rewinding process.

5. Machine automatic stop when the rewinding finish.

6. Count meter function, slitting function, dust cleaning function and corona function are available for option.

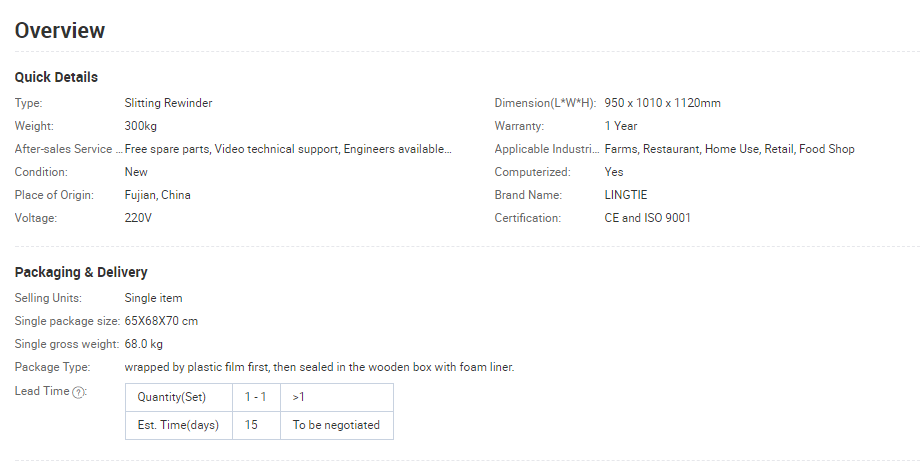

Model:                        LTD -600B

Maximum web width :           600mm

Power voltage:           220 V

Power:                       1 kw

Machine weight:         300 kg

Machine dimension:   950 x 1010 x 1120 mm

Application :

This automatic rewinding machine with web guide is widely used to rewind various soft materials in roll form, such as plastic film, paper, medical gauze, non-woven fabric , aluminum foil, etc.

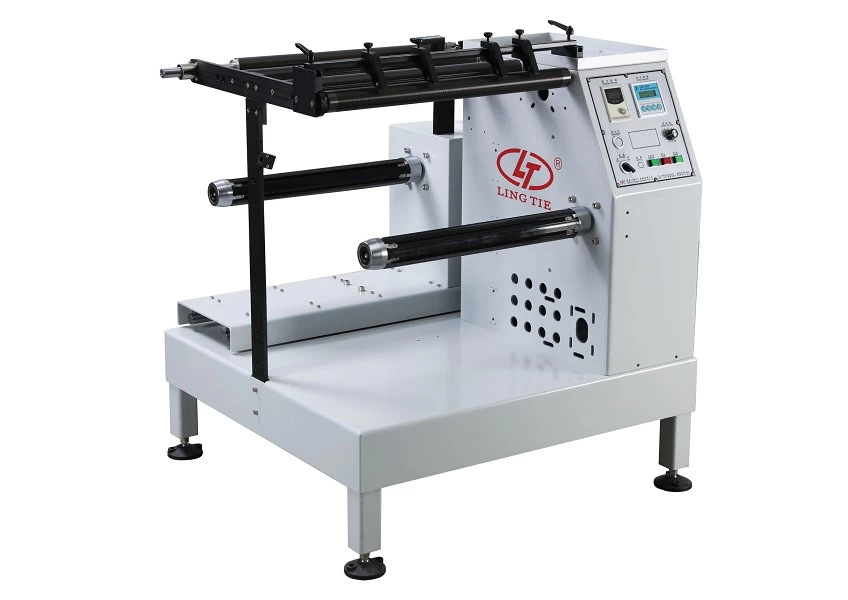

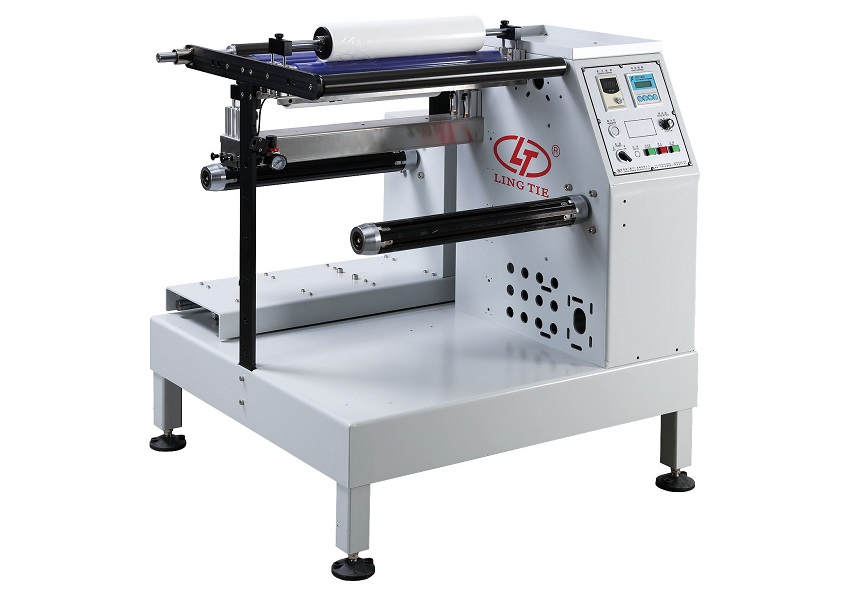

Automatic rewinding machine with web guide and count meter function

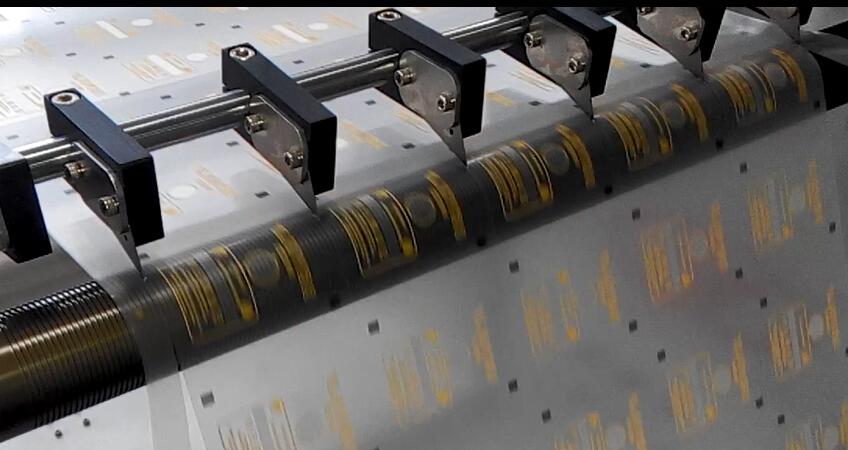

The Slitting Function adding on the Rewinding Machine

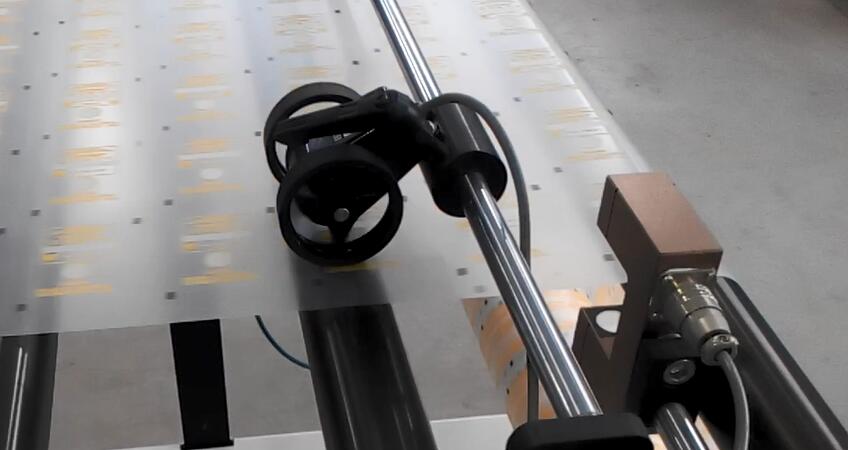

The Ultrasonic Sensor and Counter Function on this Mini Slitter Rewinder Machine
