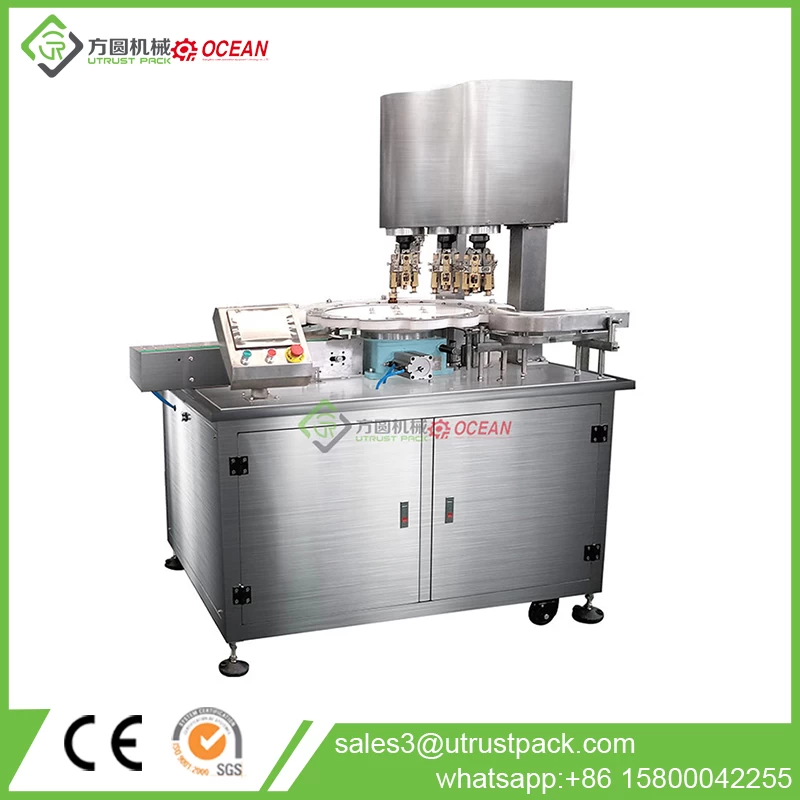

Automatic Roll-On Bottle Cap Sealing Machine For Pilfer Proof Cap

Automatic Roll-On Bottle Cap Sealing Machine For Pilfer Proof Cap is suitable for screw cap / Ropp cap/ crimping cap sealing on the glass bottle. It is widely used in wine, syrup, oral liquid, pesticides, pharmaceutical vial industries.



Automatic Roll-On Bottle Cap Sealing Machine For Pilfer Proof Cap


Specification For Automatic 75cl Wine Filling Capping Machine

Material
Stainless Steel
Sealing number
1
Sealing Speed
60-80 bottles/ min
Sealing Height
35-320 mm (Adjustable)
Bottle diameter
12-33 mm (Adjustable)

















Feature For Screw Ropp Cap Sealing Machine:

1. The seaming rollers & chuck head are made of Chromium steel with hardness, rust proof and excellent sealing performance.

2. Each sealing head is equipped with multiple hardened steel rollers to form the shell precisely to the bottle finish, assuring a secure, leak proof, tamper evident package.

3. It uses Quick-disassembly lock cap mould, which can be easily replaced in different size bottle caps.

3. Full PLC control (Mitsubishi), once set the parameters into the Touch screen, could just press 1 button to on / off, also 1 more Emergency button for protection, save unnecessary labor cost.

4. All the components of the equipment are well-known international brands: the pneumatic part adopts Taiwan AIR TAC brand, the air switch, circuit breaker and contactor adopts French Schneider brand, the photoelectric switch and intermediate relay adopts Japanese Omron brand, and the PLC adopts Taiwan Delta brand, so that the equipment has high reliability.

5.It is widely used for oral liquid, wine, medicine, daily chemical, suitable for screw cap, stelvin closure, Ropp cap sealing & capping.

Configuration

Automatic vibrating caps feeder

There is a pulse electromagnet under the hopper of the machine, which can make the hopper vibrate vertically.

The hopper is driven by an inclined spring sheet to twist and oscillate around its vertical axis.

The bottle cap in the hopper rises along the spiral track due to this vibration.

In the process of rising, through a series of track screening, the bottle caps are automatically arranged into a uniform pattern and exported to the bottles passing through the production line. The main body of the equipment is made of high quality 304 stainless steel.

Feature:

1. The machine is equipped with an automatic detection device, that is, when the cap is full, the cap is automatically stopped, and when the cap is missing, the cap is automatically opened.

2. The machine has a capless automatic alarm device, that is, when the inner cap of the capping machine is about to run out, the machine automatically buzzes to alarm, reminding operators to add the cap as soon as possible to ensure normal production.

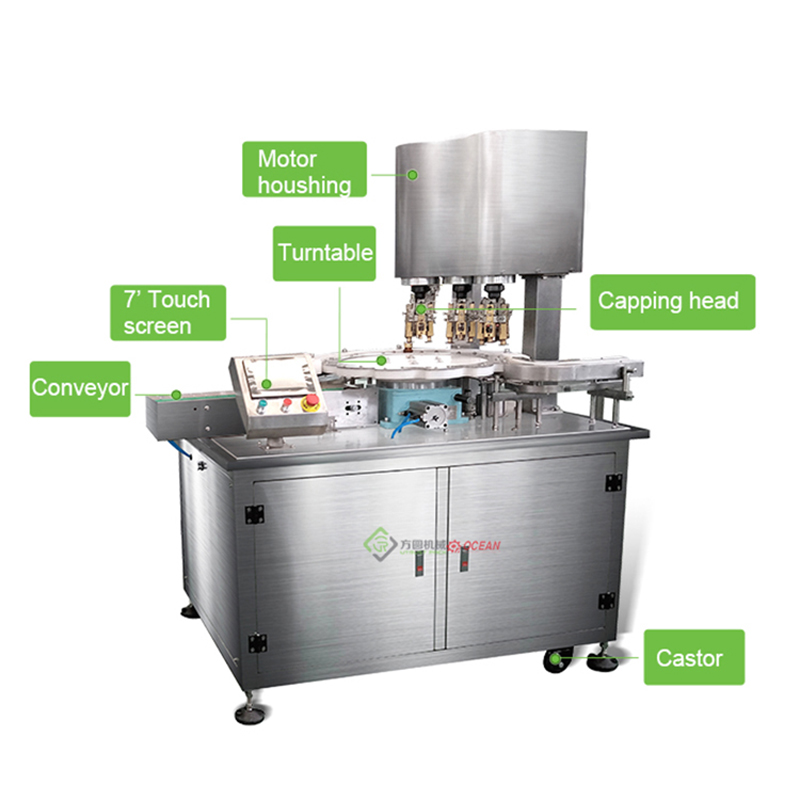

Construction For Glass Bottle Screw Cap Machine

automatic screw capping machine


Applications For Automatic Stelvin Screw Cap Capper


Contact Us



Production Procedure for Wine Bottle Screw Cap Sealing Machine


Our Services on Stelvin Closure Screw Capping Machine

Pre-Sales Service

Inquiry and consulting support.
Sample testing support.


After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.


FAQ
1, What is your Installation Services for Automatic Screw Ropp Cap Machine For Wine?
2, What about your Guarantee of quality?
User manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well
The wine screw cap machine is 1 year warranty, all machine part can be replaced within 1 year if broken (not including man made)
3, If we have very special request for the production line,could you help me to do the design?
4, Can I visit your factory?
Experienced mechanical designer customized-design provided.
Yes, welcome please.
5, If we have samples of new products, can you help to analysis and design bottle cap sealing machine?
6, Do you have certificate?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Yes, we have some, like CE / SGS.
