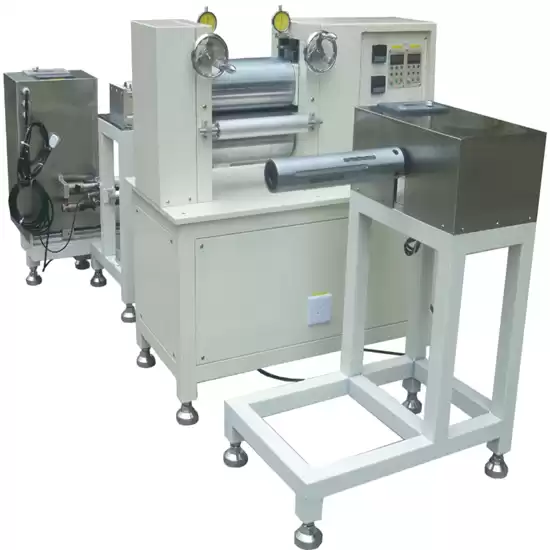

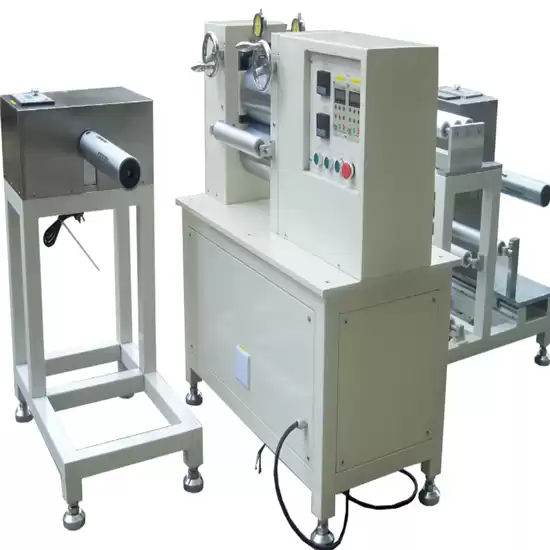

Automatic Roll To Roll System Rolling Press Machine Calendering Machine for Battery Production Line

TMAX-roll250  is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials less than 250mm wide. It enables the automatic R2R film calendering on

SPECIFICATIONS:

Working Voltage	208 - 240 VAC, 50/60Hz, Single Phase 110V -220V AC Power plug is not included
Max. Power Consumption	300W
Front Panel & Tension Control	Infinite switch for various tension control 0~20N Tension adjustable torque motor for active reeling Friction resistant passive unreeling
Motor Type	The use of brushless motor ensures no sparking in the Ar gas environment
Reeling Width	< 200mm width for flexible substrate material
Traverse Speed	The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min
Roller's O.D	3 inches
Reeling/Unreeling Roll Diameter	Max. 300mm
Compliance	CE certified
Warranty	Two years limited warranty with lifetime support
Net Weight	350kg
