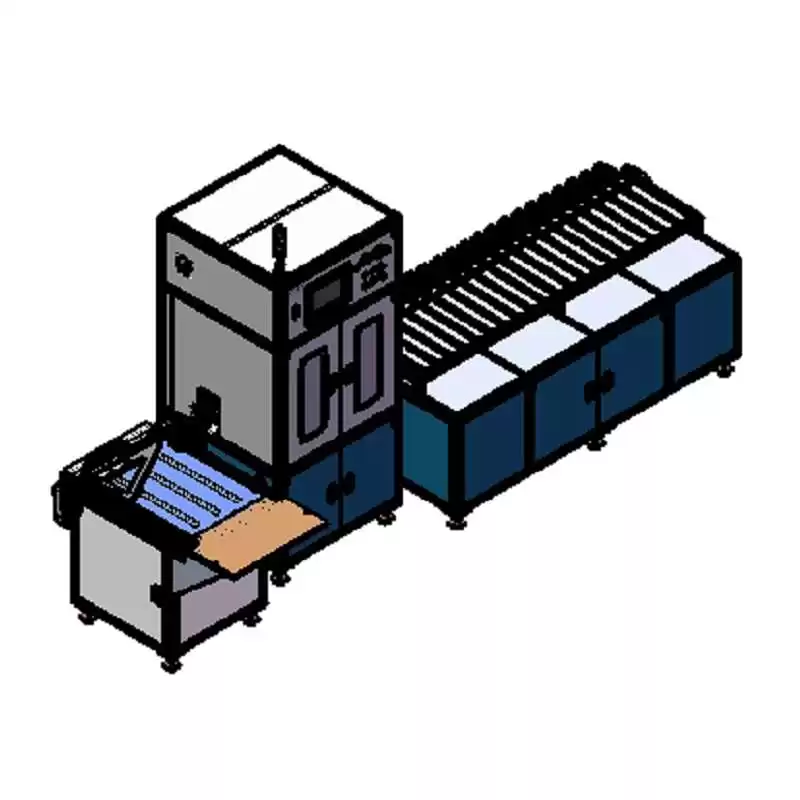

Automatic Roller Dimension Detection Machine is an automatic detection system integrates roller feeding, detection and sorting. The Rollers are erected on the feeding machine, pushed by a cylinder one by one to the transition belt to the detection machine. The detection machine brings the roller to detection station through its rotating disk. After detection, the rollers are transferred to the sorting machine through the belt and be divided into different feeding slots according to the different specifications detected.

Technical parameter ：

Detection Object：All kinds of rollers for Bearings Outer size, DiaØ10-30

Request：Cleaning surface without impurity as iron scraps etc.

Speed：60~120pcs/min

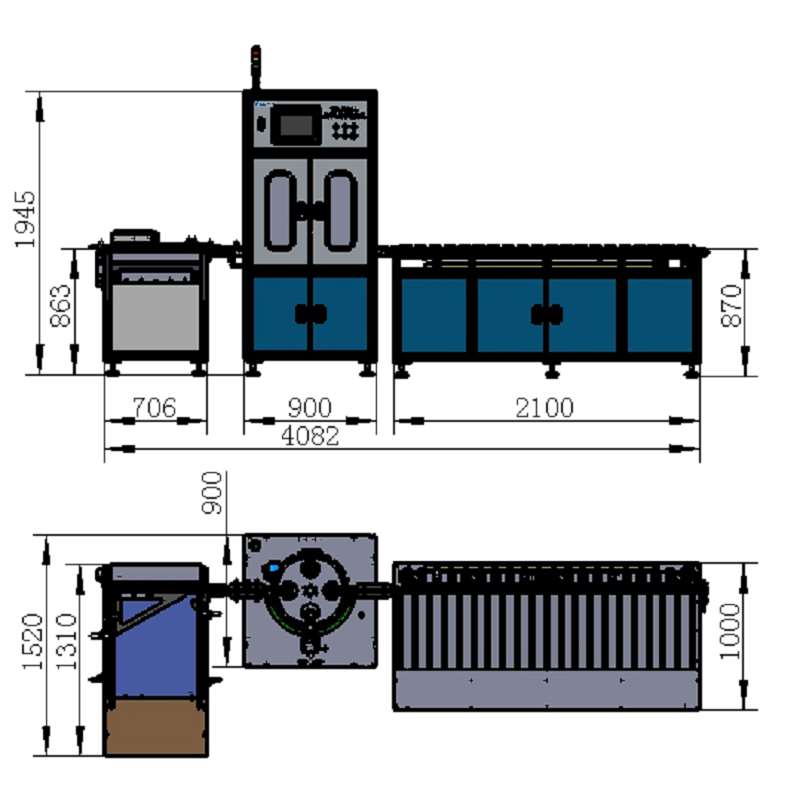

Size/Weight：4080*1520*1950mm/750kg
