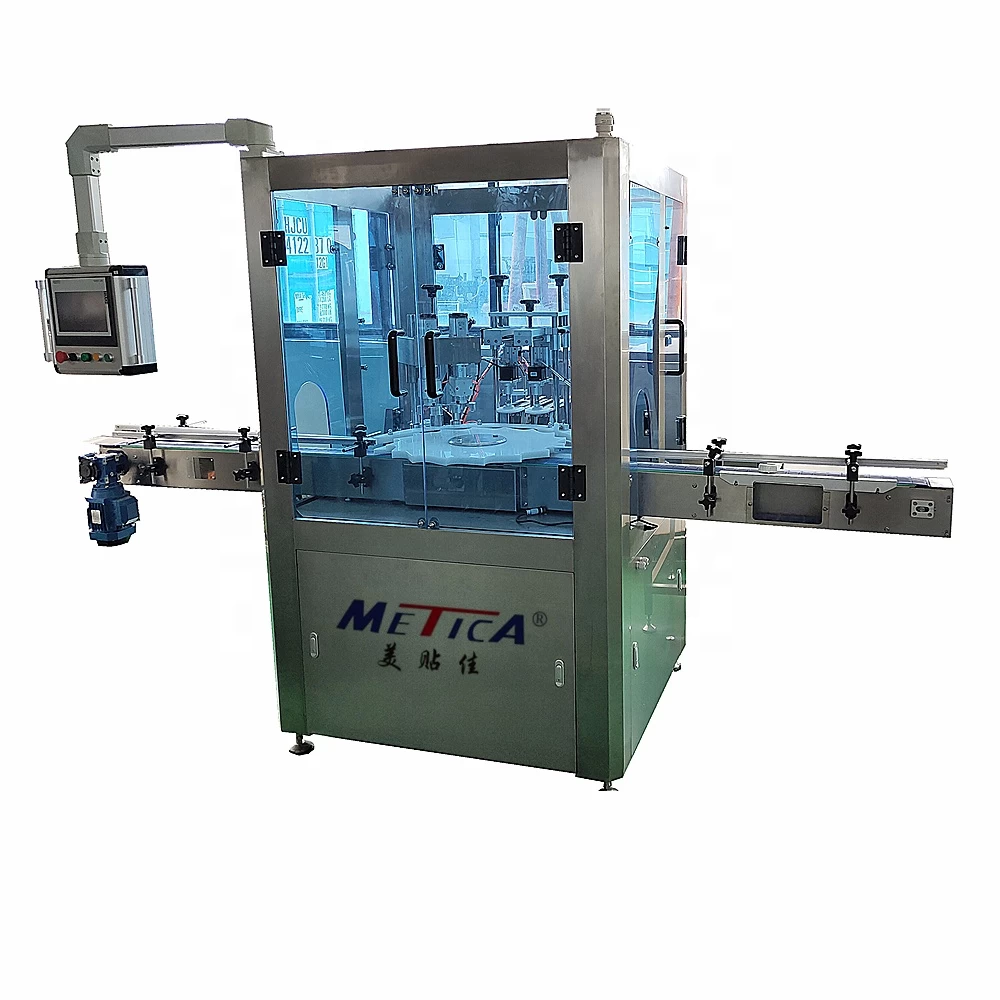

Automatic Rotary Type Capping Machine with Cap Feeder MTCP-100-2D for Screw Cap and Press Cap

Auto Feeding and Capping Machine for Packaging Line

Applicable for Screw Caps, Pump Caps, Theft Proof Caps, Lug/twist off caps





Automatic Rotary Type Capping Machine with Cap Feeder MTCP-100-2D for Screw Cap and Press Cap



Auto Capping Machine Application

  • MTCP-100-2D automatic bottle screw capping machine is our new designed product recently.

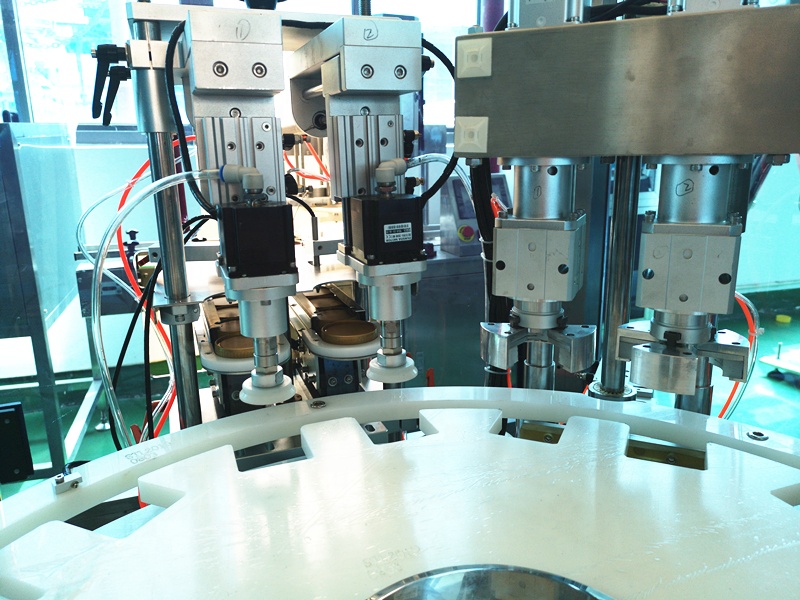

  • Automatic capping machine adopts rotary plate to positioning the bottle and capping.
  • The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
  • The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.

  • It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.


Capping Machine Features

  • Automatic Feeding with Feeding Plate or Vibration bowl and Feeding Track
  • Automatic Capping for all kinds of caps, such as lug/twits off caps, plastic screw caps and so on

  • We can also design machine according to customer's special requirements.


 Auto Capping Machine Technical Parameters

 Speed 3000-4000 BPH
 Capping accuracy  >99%
 Caps applicable  Screw caps or press caps
 Caps size range

 20-80mm (can be customized)

 Power supply  220V 50/60Hz, 2KW
 Air supply  0.6 MPa
 Machine size  240*135*173 cm
 Bottle applicable  a wide shape range
 Caps feeding  Lifter or vibration bowel

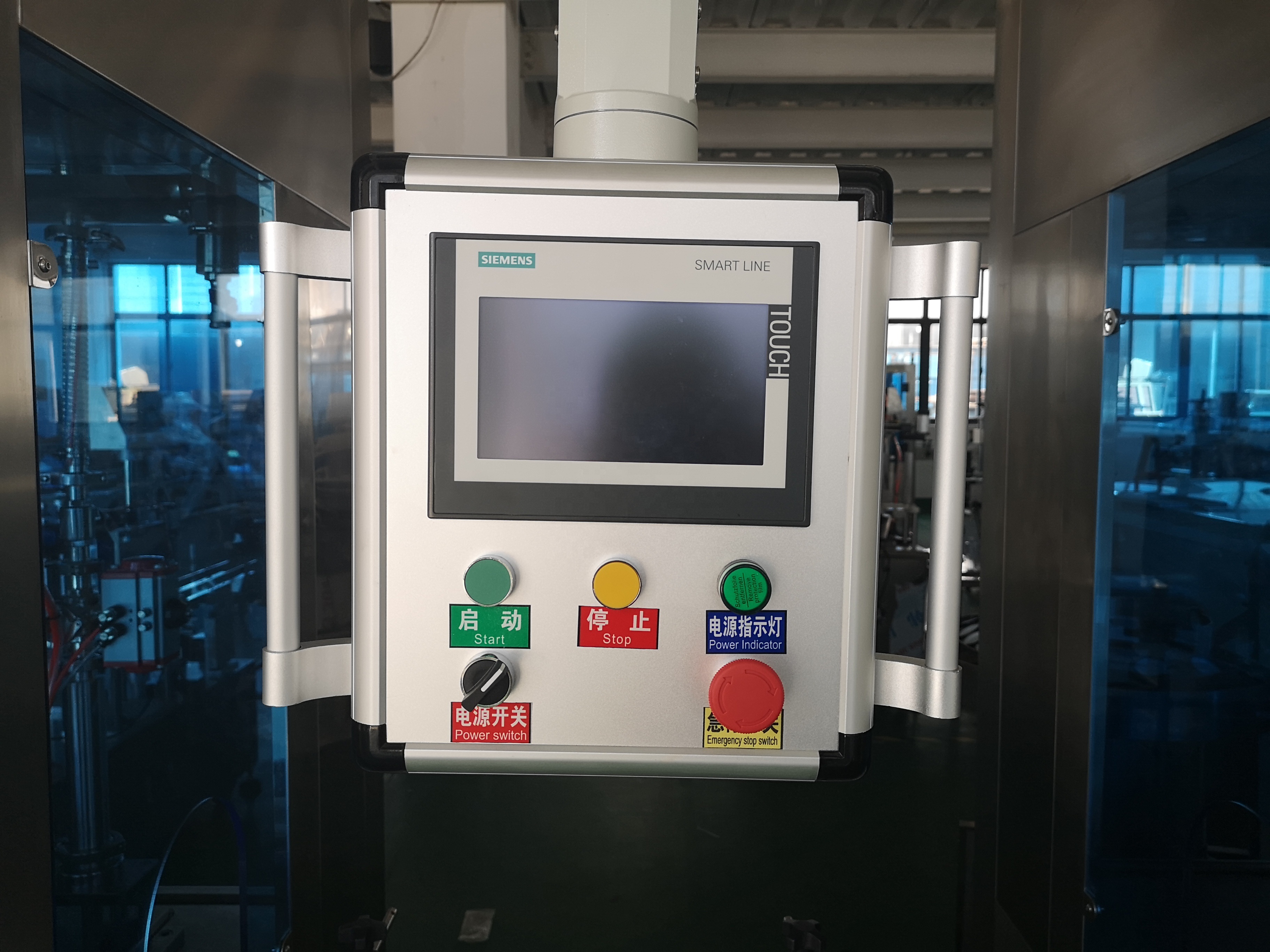

 Feature  PLC, touch screen, with clutch



Cap feeder device:

Lifter and vibration bowel for option
