Features
With rich experience in this industry and independent R&D control algorithm, successfully manufacture full servo automatic screen printing and hot stamping all in one machine.
To save more resources for customers while improving production efficiency, higher speed, accurate overprint and stable operation, convenient debugging.
High precision guide rail and servo control system to improve the product's printing & hot stamping precision and effect.
Combined screen printing and hot stamping functions, greatly reducing the workload of the operator, shorter debugging time, more relaxed work.
Technical Data
Model:SF-SHR460
Max Print Size(mm)： ∅(13-60)X(20-240)L

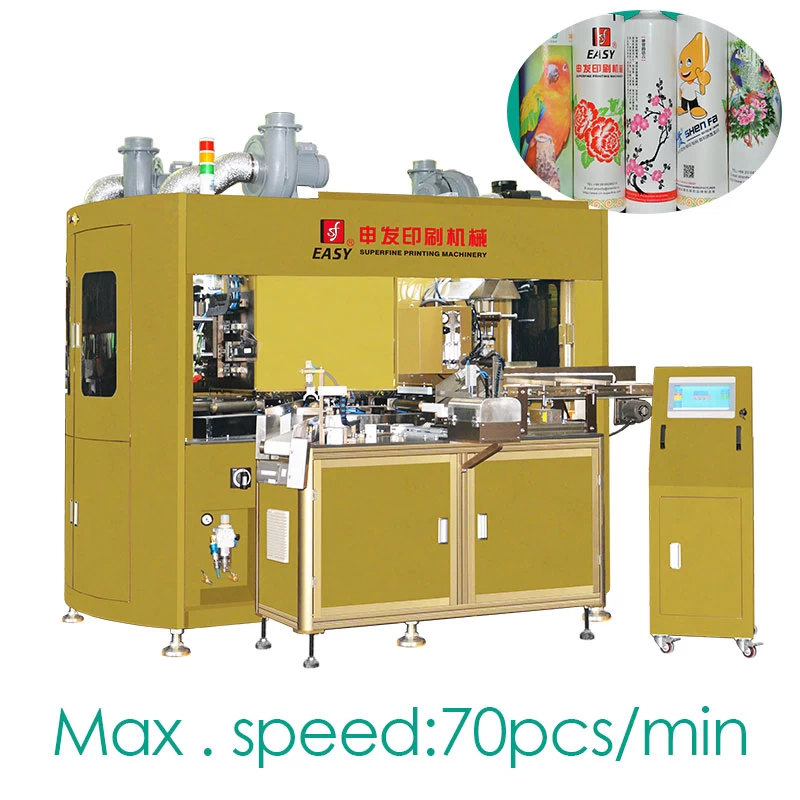

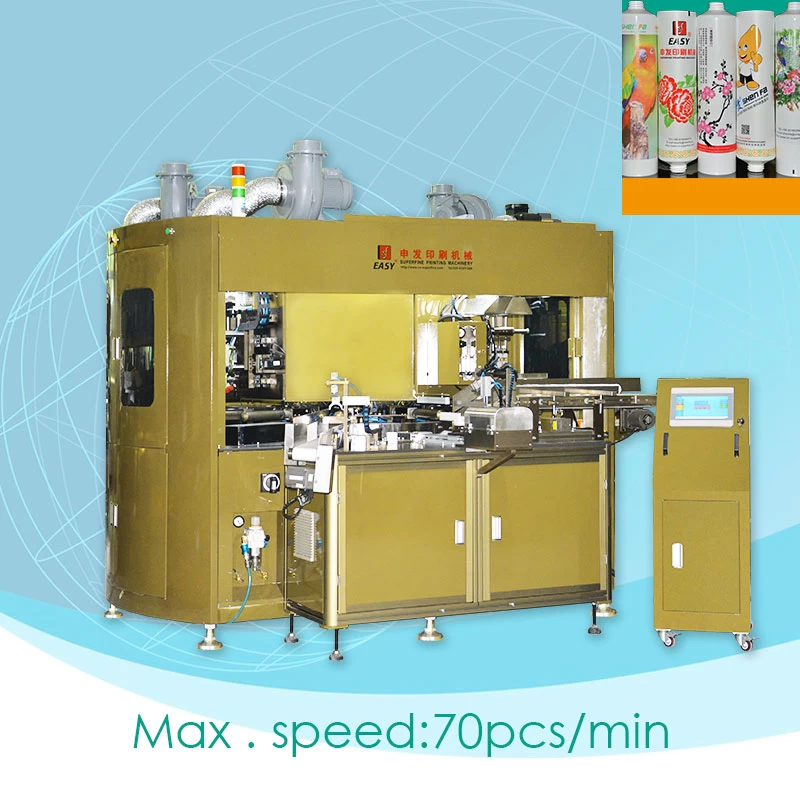

Max . speed(pcs/min)：70
Dimensions(mm)： L2900 x W2500 x H1900
Air Pressure(bar)： 6~8bar
Power： AC380 50/60Hz 32KW
Product highlight
1.Module design: The
equipment is modular design, according to customer needs, combined screen
printing and gold stamping function
2.This machine
adopts module design, can combine screen printing and hot stamping according to customer’s demand.
3. Four-color
screen printing & Three-color
screen printer plus hot stamping can be choose according to customer demand.

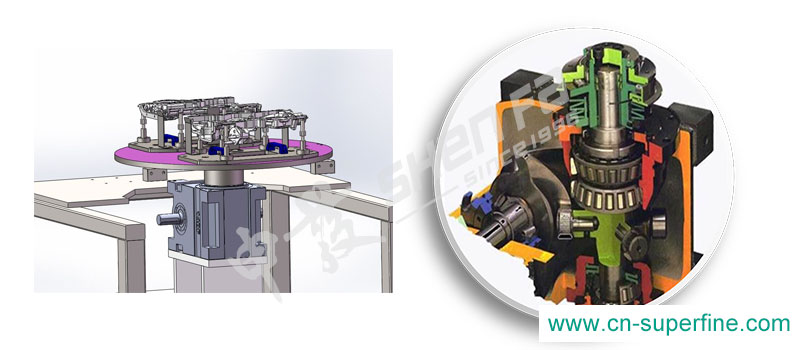

Divider
Use top German brand variable frequency divider, running smoothly to improve printing precision and stability

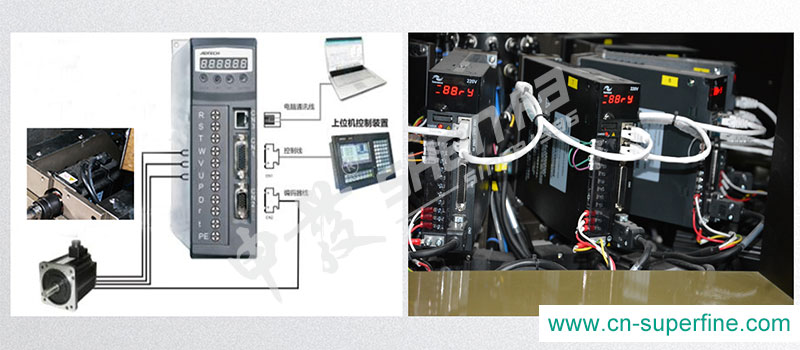

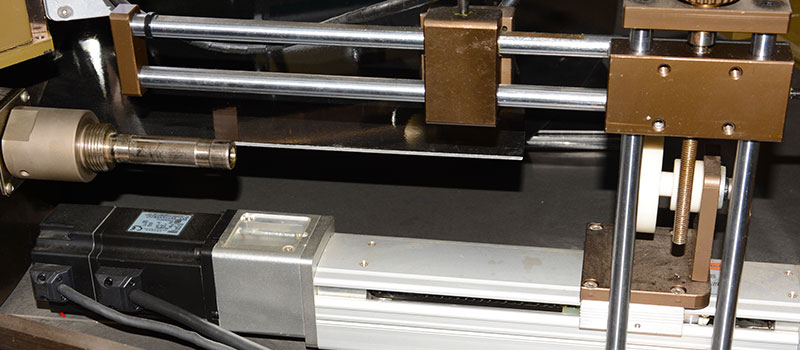

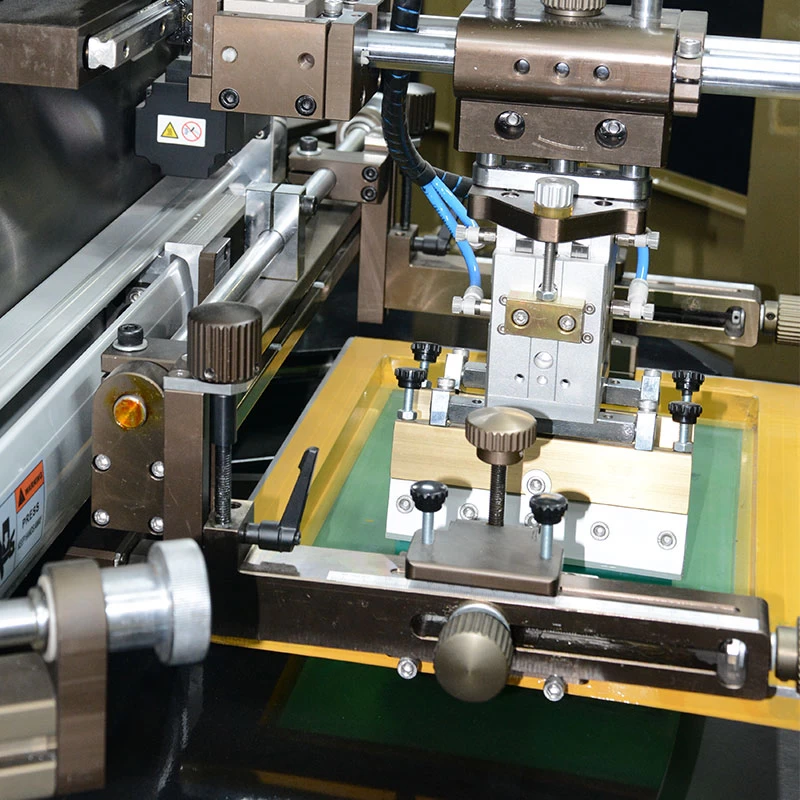

Full servo printing
The machine’s
full servo design can greatly reduce the workload of the operator during
changing for different products, the adjusting time of the machine is shorter,
and the work is easier.

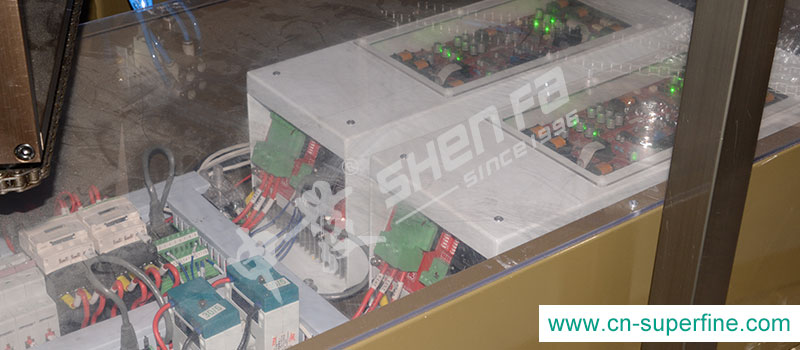

Intelligent UV power supply
High efficiency and energy saving, stable
and reliable, accurate control, small volume, light weight
Bluetooth technology
Convenient for the operator to control the machine at
a long distance
The touch screen console adopts the latest wireless Bluetooth
technology to facilitate the operator to control the equipment at a long
distance to reduce the labor intensity and improve the work efficiency

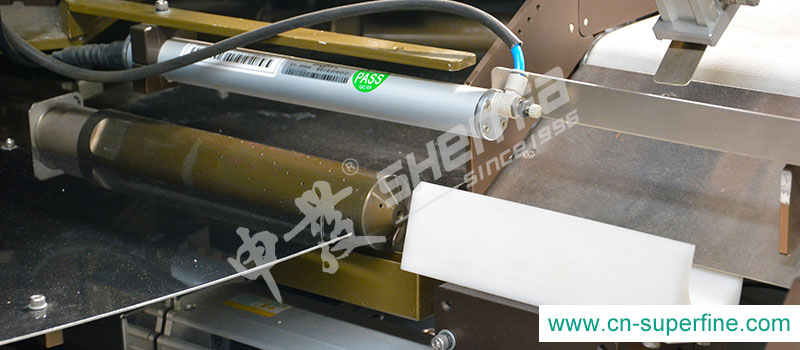

Servo system for loading and unloading
The loading and unloading are controlled by servo
system, the speed is faster and more stable.
Front and back positioning system
Front and back positioning system, more accurate
positioning, faster speed.

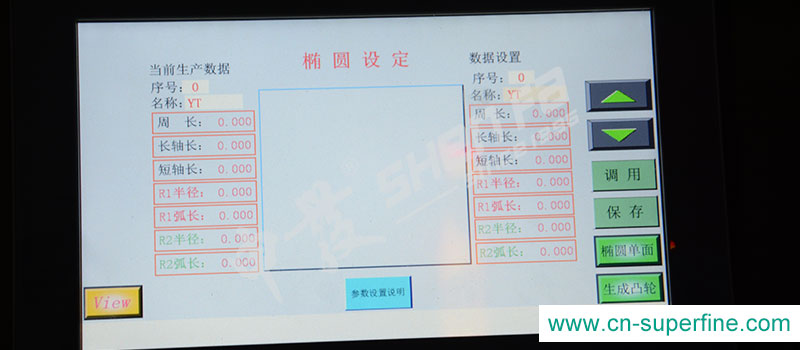

PLC convenient to set up
For different products, just need to input the
corresponding parameters. It can greatly reduces the workload of the debugger.
Printing samples
Machine Running Video
