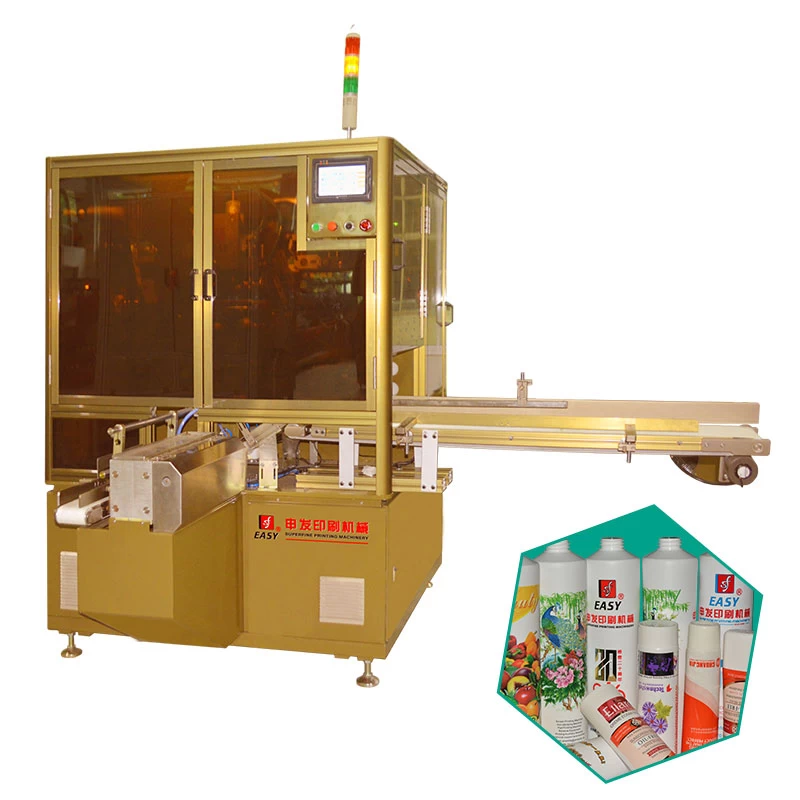

Automatic Screen Printing Machine for Tube

SF-SR12B/UV/L single color automatic screen printing machine for daily chemical and cosmetic industry, Main for soft tube screen printing.



Features

◆ The screen printing machine can print  wine caps in barrels or lipsticks in single color(can be overprinting according to customer requirement), equipped with auto loading system, treatment before printing, printing system and IR oven or can be exchanged with UV curing Etc.

◆ Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical  parts made by CNC directly from CAD design.
◆ Adopted PLC control system, touch screen interface. Quick setup & quick toolings change over.
◆ Adopted with No-object No-printing system, auto counter, safety guard, out of working alarm device.

◆ Magic hand loading & unloading unit, auto coading system and other customizations due to order.


Technical Data

Model:SF-SR12B/UV/L

Product size:φ(16-60)x (50-220)mm

Max. speed:60pcs/min

Air pressure:5-7bar

Power:AC380V 50/60Hz 5Kw

Dimension:2340x1850x1800mm


Loading Device

Loading Device


Anti-static System

Anti-static System


Flaming System

Flaming System

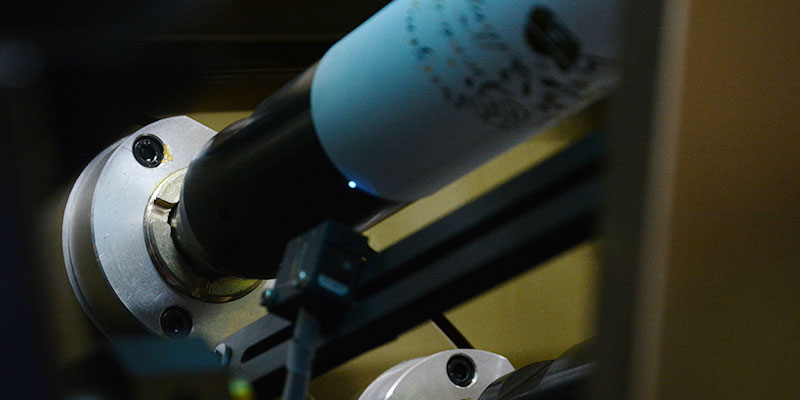

Auto optical registration device

Auto optical registration device

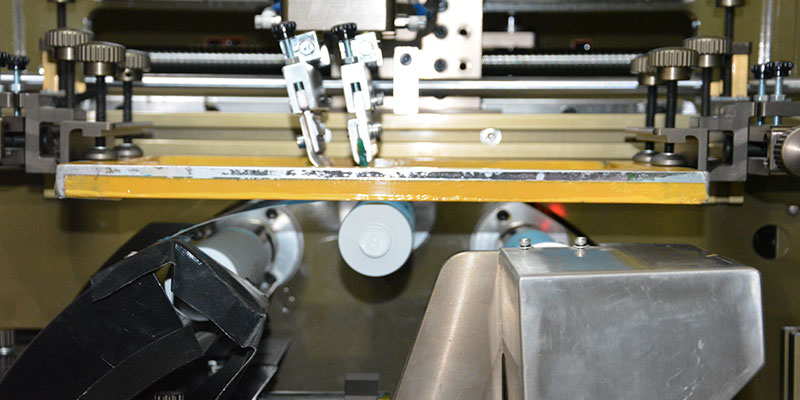

Screen printing System

Screen printing System


Printing samples

Printing sample


Machine running video
