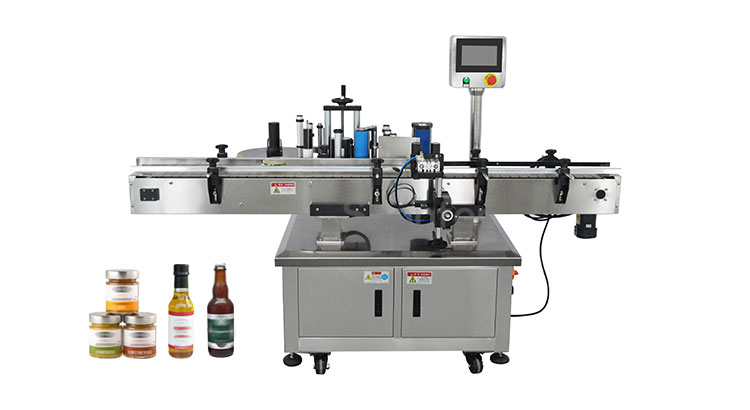

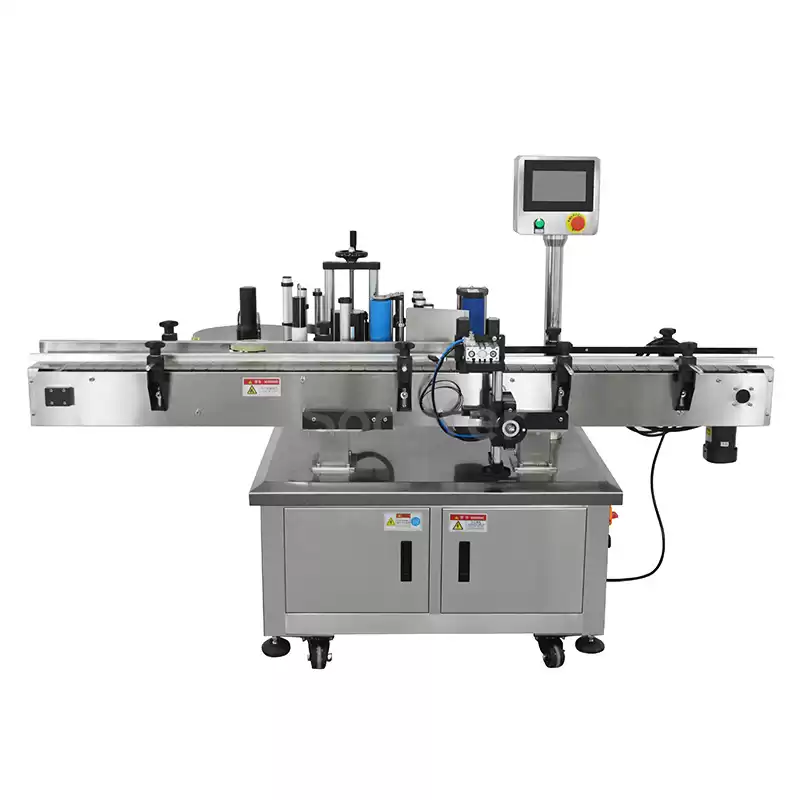

Automatic small water wine round bottle sticker labelling machine
Application of bottle labelling machine
This machine is suitable for circle labels of round bottles.The belt type label rubbing mechanism is the best feature of this machine, and the running speed is fast. High versatility, suitable for all kinds of round bottles.
Specification of bottle labelling machine
Labelling speed
|
Max120 pieces/min
|
Labeling accuracy
|
±0.1mm
|

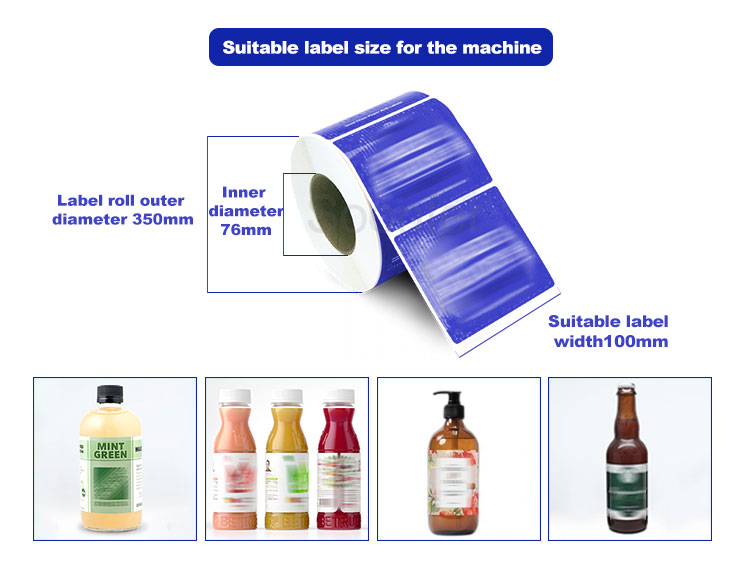

Max label width
|
100mm
|
Applicable product size
|
Φ30-Φ80m
|
Applicable inner diameter of paper
|
Φ76mm
|
Applicable outer diameter of paper
|
Φ350mm/MaxΦ350mm
|
Dimension
|
2000*800*1650mm
|
Weight
|
300KG
|
Features of bottle labelling machine
1.Simple structure, easy to operate and maintain.
2.Change different bottle sizes no need to replace any spare parts, because the separation kit is versatile.
3.Servo motor drive labeling head, maximum labeling speed can up to 60m/min.
4.Advanced humanized interface and online help system.
