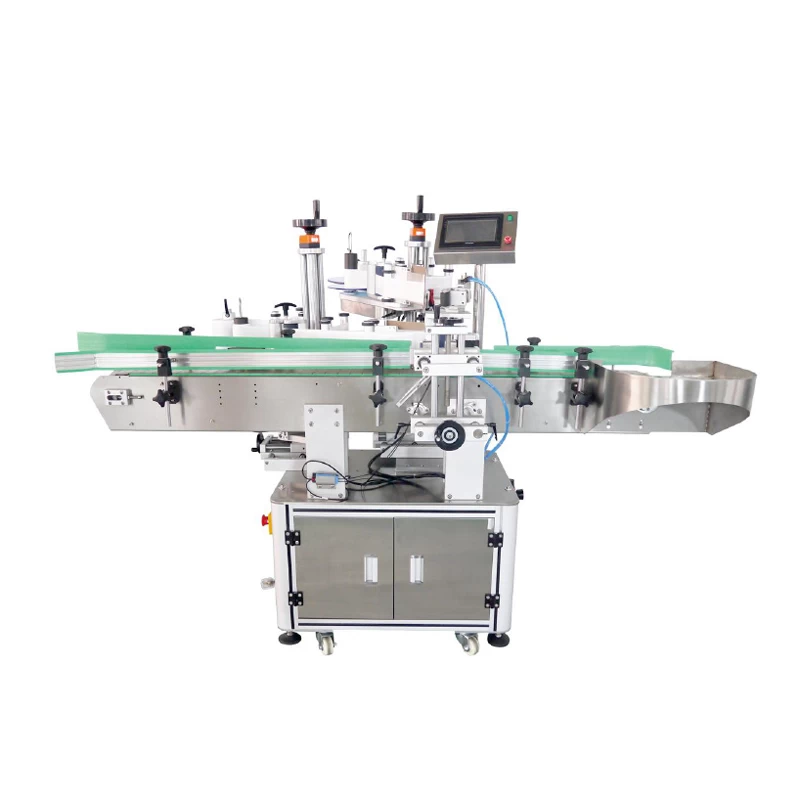

Automatic soy round bottle sauce upper and lower labeling machine

This automatic soy round bottle sauce upper and lower labeling machine applicable label, adhesive film, electronic supervision code, bar code (can be applied to two different labels at the same time label)



Automatic soy round bottle sauce upper and lower labeling machine


Customized And OEM Service Available

Round bottle labeling machine

Scope of application

This automatic soy round bottle sauce upper and lower labeling machine is suitable for round bottles of 40mm-90mm diameter, two labels and different height positions.

Applicable industries: widely used in cosmetics, wine, food, toys, medicine, daily chemical, electronics, hardware, plastic and other industries

Application examples: red wine bottle double label, cosmetic bottle double label, cocktail upright label, etc.

Functional characteristics

1. Powerful function, realize labeling in different positions and different labels of the cylinder at the same time, high speed, high efficiency, greatly saving labor time and cost;

2., a circumferential positioning detection device can be scheduled to achieve labeling at any position on the circumferential surface.

3., the application is flexible, it can be produced on a single machine, or can be connected to the production line to realize automatic production without automation.

4. High stability, high precision labeling, prevent bottles from collapsing and jumping, can be completed at the same time two different height position labeling;

5. use man-machine dialogue touch screen operation window, parameter modification is intuitive and clear, operation is simple and easy to understand;

6. automatic identification system, no matter no labeling, fault prompts and other functions.

7. The bottle labeling machine main material of the equipment is stainless steel and high-grade aluminum alloy, which meets the GMP production demand. The whole machine has firm structure and beautiful appearance.

8. It has the function of production counting, power saving (when there is no production in the set time, the equipment will automatically switch to the state of power saving standby), the function of production number setting prompt, the function of parameter setting protection (the parameter setting is divided into authority management), which is convenient for production management.


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model

MZH-L

Labeling speed

30~65pcs/min

Applicable label length

20~280mm

Conveyor speed

5~25m/min

Applicable label width

20~130mm

weight

220kg

Applicable product diameter

Ø50~Ø 90mm

Voltage

220V 50Hz

Applicable marking outer diameter

Ø280mm

power

1.47kw

Applicable to marking inner diameter of volume

Ø76mm

Air pressure

0.4~0.6Mpa

Labeling accuracy

±1mm

Conveyor direction

From left to right

Label out speed

5~25m/min

equipment size

1810*1300*1350mm
