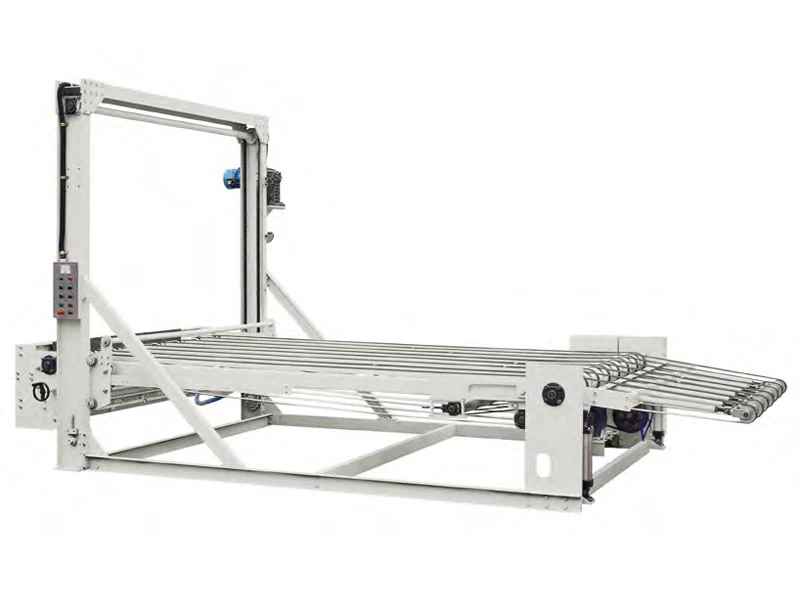

Product Name:Automatic Stacker firm and not easy to dump

Features：

When the total number of stacked corrugated cardboard reaches a predetermined value, stop the feeding of corrugated cardboard, place the corrugated cardboard neatly through stacking mechanism and splint, lift it through hydraulic cylinder, transfer and stack the stacked corrugated cardboard, and automatically stack the stacked layer of corrugated cardboard, which is firm and not easy to dump, is helpful. The improvement of production efficiency will facilitate the future inventory and reduce the cost of labor expenditure, and have a more obvious positive effect.

1. SheetCollecting Arm

The tension of sheet collecting arm conveying belt can be set separately without the limit by belt length featuring easiness, flexibility and quickness.

2. Collector Bed Elevation

1) Driven by a strong chain for smooth elevation and transverse movement;

2) 1600mm stacking height and the collecting bed is installed with auto locker;

3) Collecting bed elevation motor is attached with a brake to remain it at the position without sliding down.

3. Collection Baffle

1) Collecting plate is driven pneumatically and the stacking height is control by photocell;

2) Back baffle can be set manually in line with blank length;

3) The grained surface belt has fine friction to prevent it from slipping.

4) Stacker’s squaring system ensures neat stacking after printing.
