Automatic street lighting on off sensor control system

According to the Roads/Tunnel environment, it cooperates with the intelligent lighting centralized controller to automatically control the illuminance of the lamps according to the changing of environmental brightness, to achieve the purpose of intelligent management and control.




Illuminance Sensor

I:  Equipment Introduction

The STS-100 Environmental light Monitoring Equipment is independently researched and developed by our company. According to the Road/Tunnel environment, it cooperates with the intelligent lighting centralized controller to automatically control the illuminance of the lamps according to the changing of environmental brightness, to achieve the purpose of intelligent management and control.

Traditional street lighting, tunnel lighting and industrial lighting such as factory&warehouse lighting Switches Controlling Modes are generally divided into Loop Controlling, Sunrise & Sunset Controlling, the corresponding fixtures Loop Controlling in different time periods, although the controlling is mature and widely used, there are still many problems, such as: it cant be automatically adjusted Brightness at rainy, sandy weather , the adjustment range is fixed (only loop switch); moreover, it is impossible to know the ambient brightness of the project site in time. In response to these problems, our company launched this Luminance Collection Equipment. which integrates brightness collection, data processing, and data communication.

The equipment adopts the LORA communication, linked with our centralized controller to achieve auto-dimming.


II:  Electrical Specification


Item

Rating

Working Voltage

AC 220V±20%

Working Frequency

50Hz

Static Power

<10W

Range of light acquisition (when used as luminance meter)

0-5000cd/m2

Measurement Error

1%


Insulation



L/N-PE

1.75KV

L/N-DIM

3.5KV

Power Surge(L-N  L-PE  N-PE)

±4KV

Static Electricity

±8KV

Working Temperature

-25℃~ +60℃

Max. Operating Temperature

-40℃~ +70℃

Storage and Transport Tempt.

-40℃~ +70℃

Storage & working humidity range

≤85%


III:  Key Features:

1. Brightness Collection Function

Using industrial high-precision photoelectric sensor, complete set of lens, filter, aperture and other devices,  to collect the environment reflected light, through the internal high-speed data calculation unit, according to the algorithm for data conversion, using a unique fault-tolerant mechanism to ensure smooth and effective data, to ensure accurate and effective acquisition of optical brightness.



2. Communication Function

Using LORA communication mode, the distance can reach 1000 meters. Free wiring, convenient for construction.

It can be set as Active Reporting or Polling Communication type.



IV: Installing Dimensions

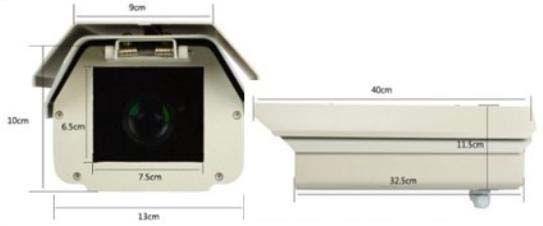

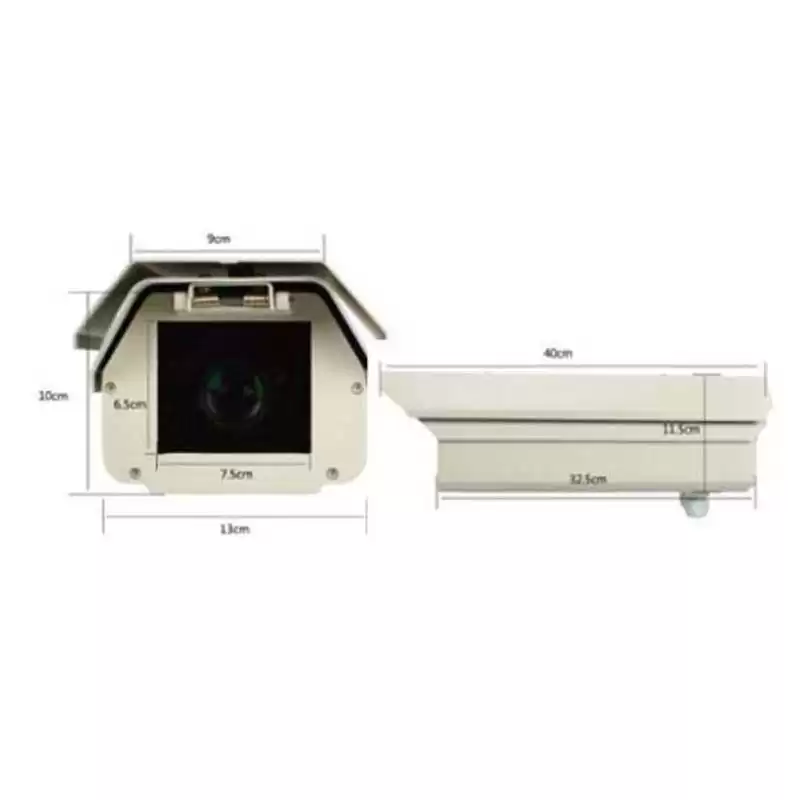

1. Dimensions

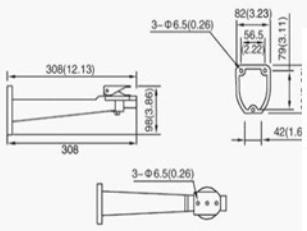

 2. Standard Mounting Bracket diagram

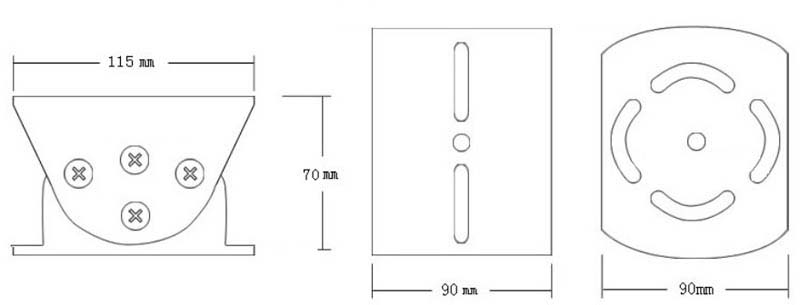

3. Multi-function mounting bracket diagram optional
