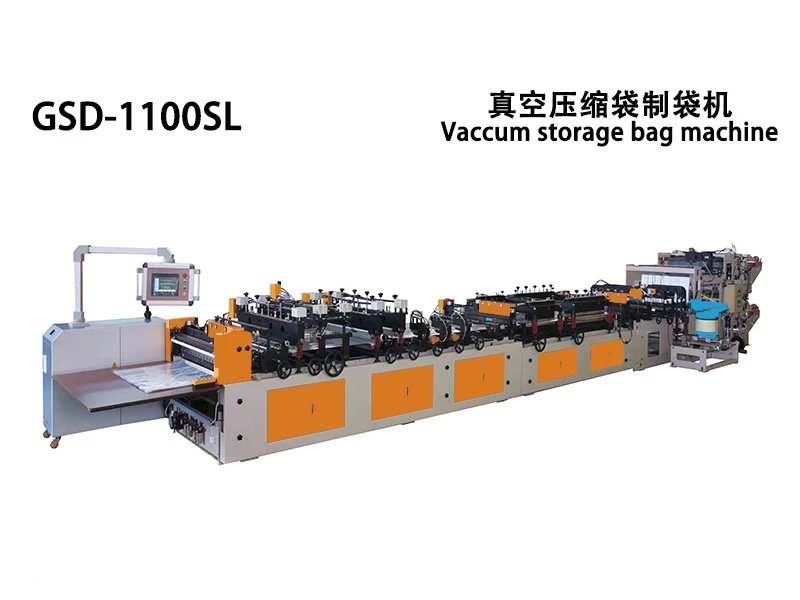

Automatic vacuum compression storage bag making machine

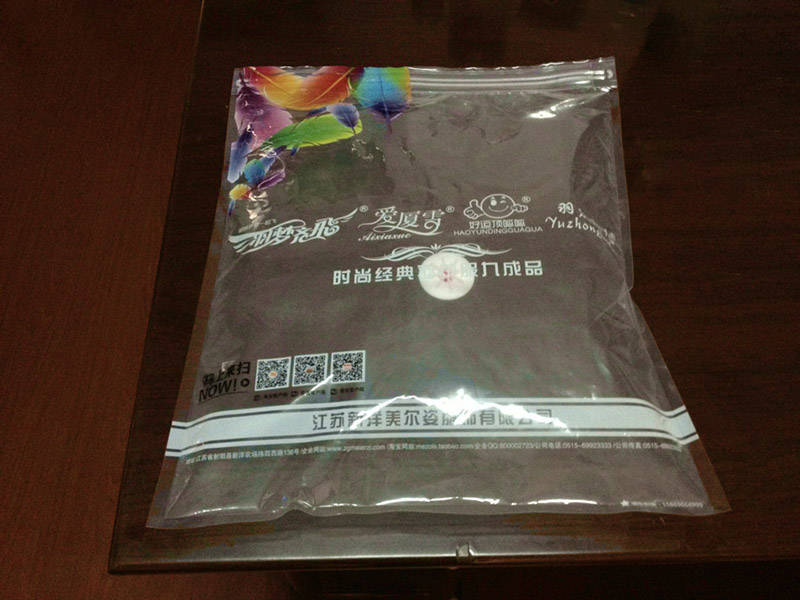

The vacuum compression storage bag (space save vacuum sealed storage bag) machine is used to automatically produce vacuum compression  bag  with high production speed.

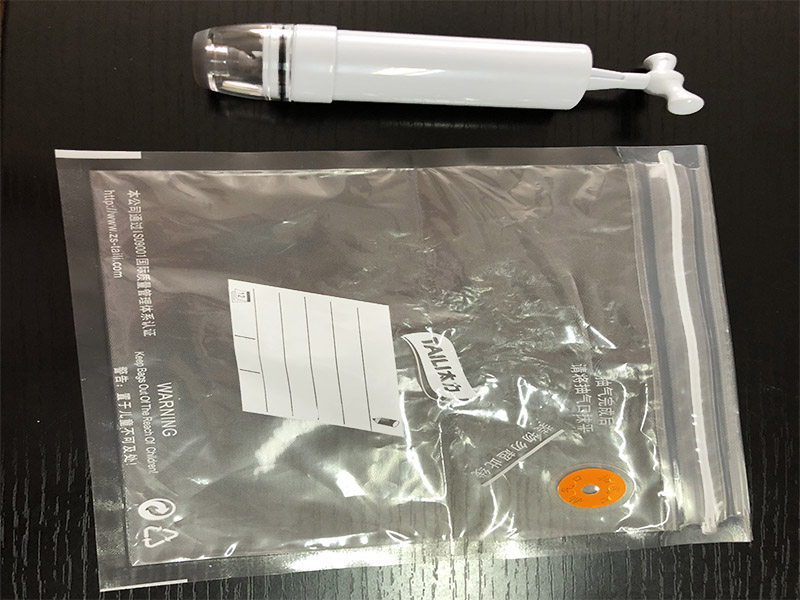

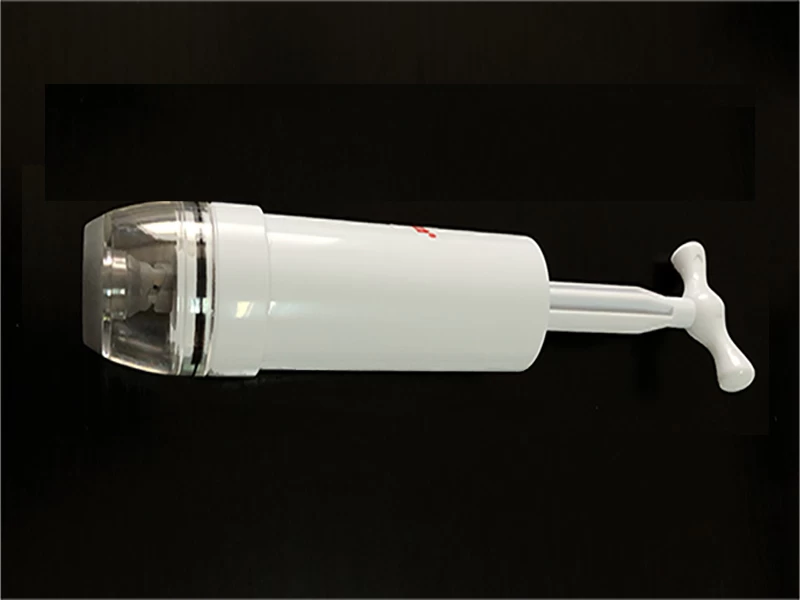

Hand Pump Vacuum Compression Space Bag Making Machine



Application:


Vacuum sealer plastic storage bag making machine is widely used to produce vacuum storage bag for household, tourism, shopping and business trip to save space and deposit more clothing, quilt and others. Through valve on bag, the air will be freely evacuated from space saving storage bag, made in our machine, which looks like a flat thin piece.

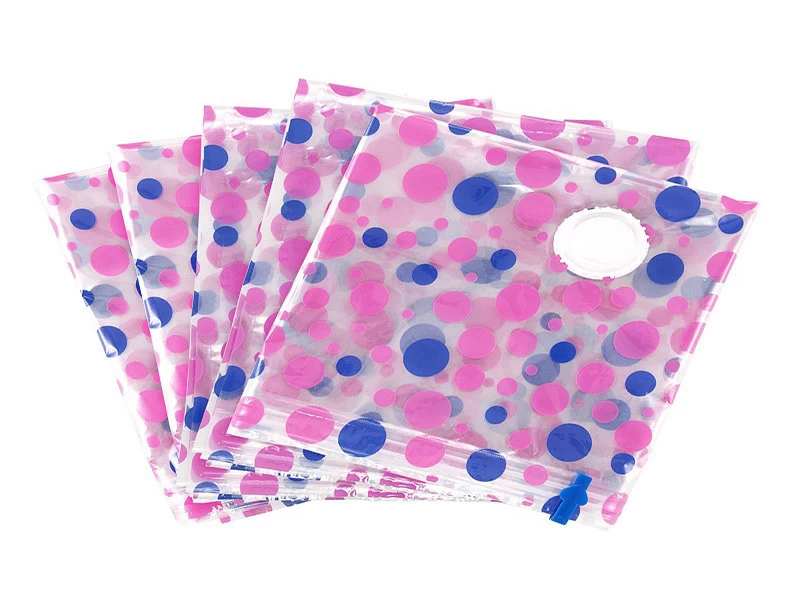

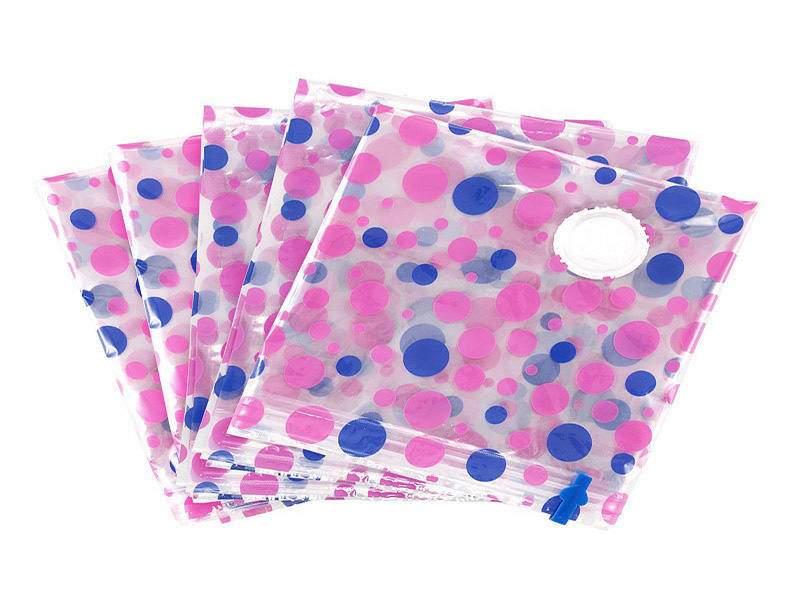

Vacuum compressed zip lock space save bag

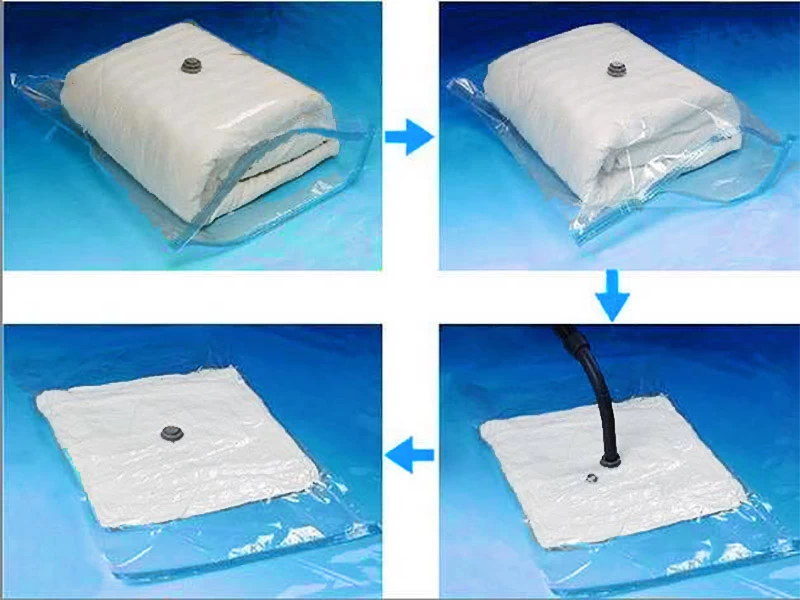

The working principle of vacuum sealer space bag is to take away the air inside the quilt clothing, so that the volume is reduced, and the original quilt and other items are flattened by atmospheric pressure to isolate the outside air to save space, to achieve  the effect of resistance of dust, mildew, moisture, and insect .

Raw material: PA +PE or PET +PE (The good quality is PA +PE. How to select good quality vacuum space bag?)

Specification of vacuum seal storage bag

Small (45*70cm, 40*60cm, 50*70cm) : for 6-8 sweater, down jackets, cotton coats etc.

Medium(70*90cm, 56*80cm,65*95cm,60*80cm):for 10-15 pc of clothing or pillow, thin quilts etc.

Large size (70*100mm,80*100mm):for 1.8*2m quilt (approx 6-8kg) or a dozen pcs of sweater or down jacket.

Extra large(90*110cm,100*110cm,90*130cm): for two 1.5*2m quilts or a thick quilt(8-10kg).

Hanging type :hanged in the closet after storage.

Three-dimensional (60*80*20cm 80*100*20cm): With a base, it is more convenient to place, you can put about 15 pieces of clothing plus two thin quilts;

Hand (sitting) pressure type (60*60*15): After the cotton quilt is placed, the hand is pressed or placed under pressure without the suction tool, and the storage capacity is referred to the medium compression bag;

Roll-on type (40*60 45*70 50*35cm): No need for suction tools, the clothes are placed after the bag is rolled to discharge the air inside the bag, suitable for traveling and carrying clothes;

Box-type compression bag (110*100*25cm 80*100*25cm): The storage box and the three-dimensional vacuum compression bag are combined into one, which is more convenient to place;


Automatic vacuum seal storage compression bag machine consist of the follows parts:

 Unwinding device:


●Unwinding motor: cycloid reducer for 750W (3 sets)

●Unwinding frequency conversion motor: 750W (3 sets)

●Deviation correction for unwinding: automatically double-line & ultrasonic correction for two sets

●Unwinding tension: two sets of automatically consistent tension, two rotary encoders and two magnetic powder brakes



Sealing device:


●Heating device for traverse-sealing: two groups with upper and lower electric hot plates in power of 4.6kw. And two groups hot knife  for width of 20mm and length of 1140mm installed in traverse sealing. Spot heating device for one group to heat upper and lower sides and spot  cooling device for one group to cool both sides. Knife will be customized by zipper offered by clients.

●Cooling device for traverse-sealing: one group with length of 1140mm to cool both sides

●Heating device for longitudinal-sealing: two groups to heat both sides with electric hot plate in power of 4kw and hot knife for length  of 1050mm

●Cooling device for longitudinal-sealing: two groups with length of 650mm

●Heating device for tip of spot heating: one group(dimension of tip will be provided by clients)

 Accessory:


●Main transmission structure: coaxial eccentricity

●Main motor: frequency conversion motor for 3700W made in Taiwan; gear reducer: i=30

●Traction: protraction with 3000W AC servo, mid-traction with 2000W AC servo and the servo adopted in backward traction keeps synchronous to mid-traction’s 2000W servo

●Automatic control systems with consistent tension for two sets

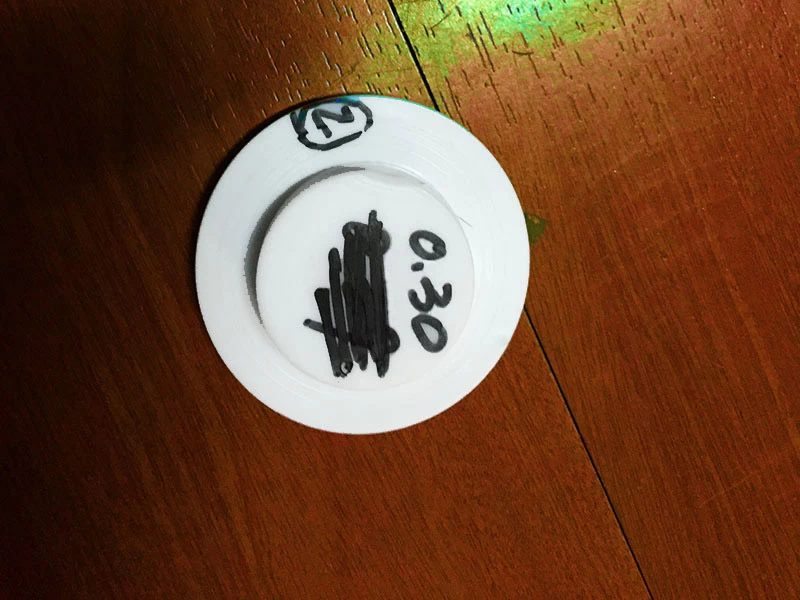

●Feed port: position of vibrating hopper (for one set) port can be lightly adjusted on basic place of 260mm. (Set customized position according to sample bags from clients who offer 400 valves.)

●Temperature control: PC control temperature in 16 lines

●Scrap rewinding machine: one set

●Cutting device: floating cutter

●Electrical control: Panasonic PLC control system & touch screen made in Taiwan

●Temperature control: precision of PC≤±2℃



Machine parameters:


Production speed :10-30pc/min

The speed is probably to be affeced by the raw material type and the cutting length.



Plastic film:

Max width:1320mm, max roll diameter:800mm



Vacuum compressed bag specifications;

Length: 30-620mm

Wdith :50-1260mm



Overall Dimension :13500 x 2800 x 1800(mm)

Total weight: 8000kg

 Special size can be customized according to customer’s requirement.
