Automatic Vertical Round Bottle Labeling Machine

This Automatic Round Bottle Labeling Machine is one of our hottest models, it is widely used, suitable for most bottles, no need to replace additional molds, easy to debug, high accuracy, and small errors.






This Vertical Round Bottle Labeling Machine is composed of stainless steel and aluminum. Meet GMP Standard. We can choose to add a ribbon printer to print the date and number of the product. The content can be up to 3 lines. If you need to enter the QR code, we recommend equipped with inkjet printer.


Main Features:

 ◆ This Round Bottle Labeling Machine is suitable for curcle labels of round bottles.

 ◆ The machine is made by 304 stainless steel and high quality  aluminum alloy.

 ◆ The belt type label rubbing mechanism is the best feature of the machine , and the running speed is fasty. High versatility, suitable for all kinds of round bottles.

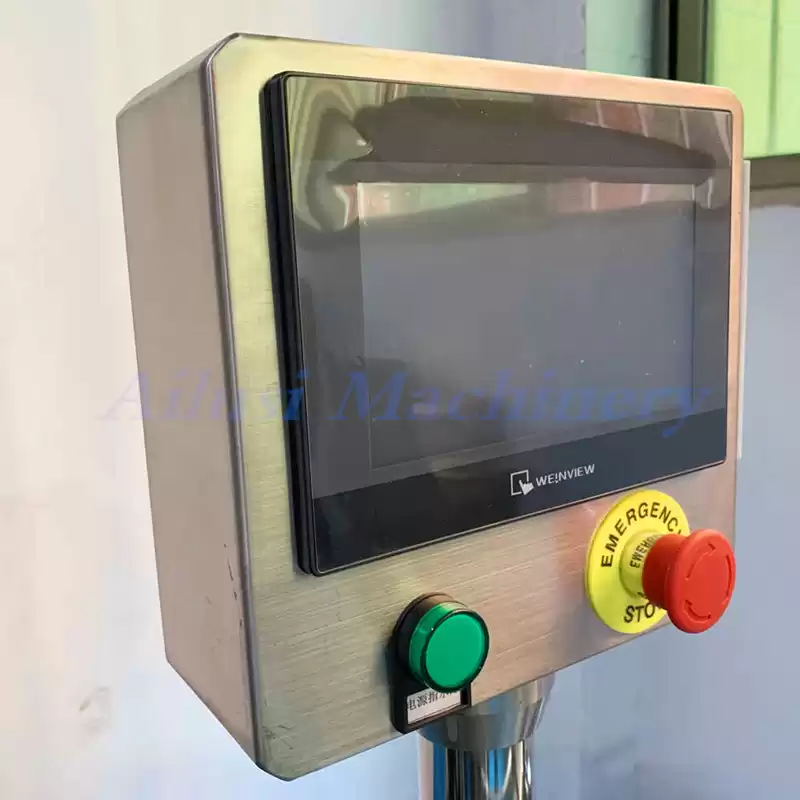

 ◆ Use PLC man-machine interface control system, which is easy to operate.

 ◆ Simple structure, easy to operate and maintain.

 ◆ Change differe bottle size no need to replace any spare parts because the separation kit is versatile.

 ◆ Servo motor drive labeling head, Max. Labeling speed can to 60m/ min.

 ◆ Advanced humanized interface and online help system.

 ◆ Movable wheels are installed at the bottom for easy movement.

 ◆ It can be labeled twice on the same bottle (must be in the same label roll).

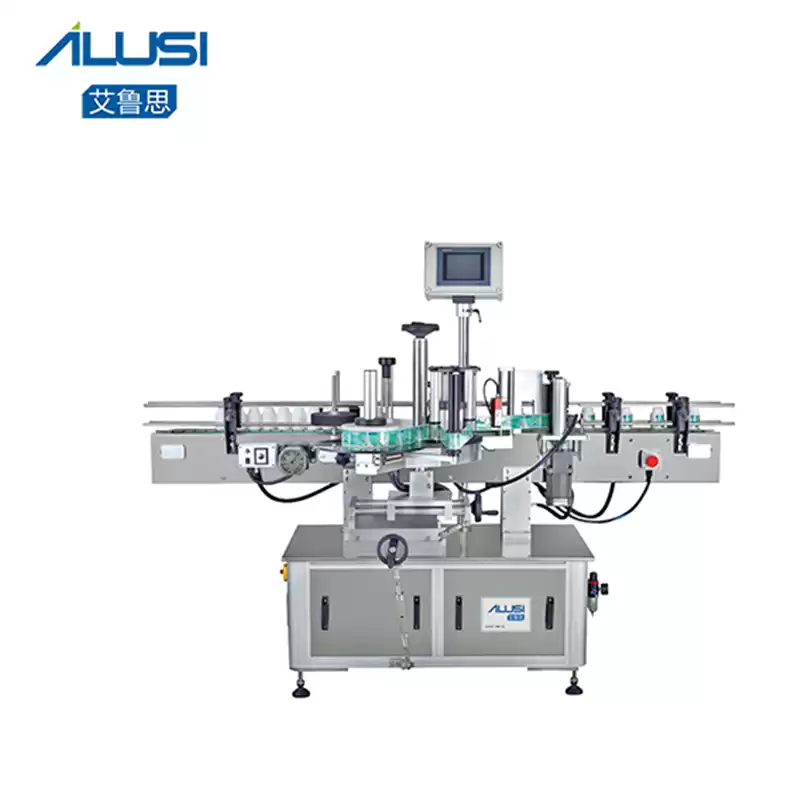

Automatic Round Bottle Labeling Machine

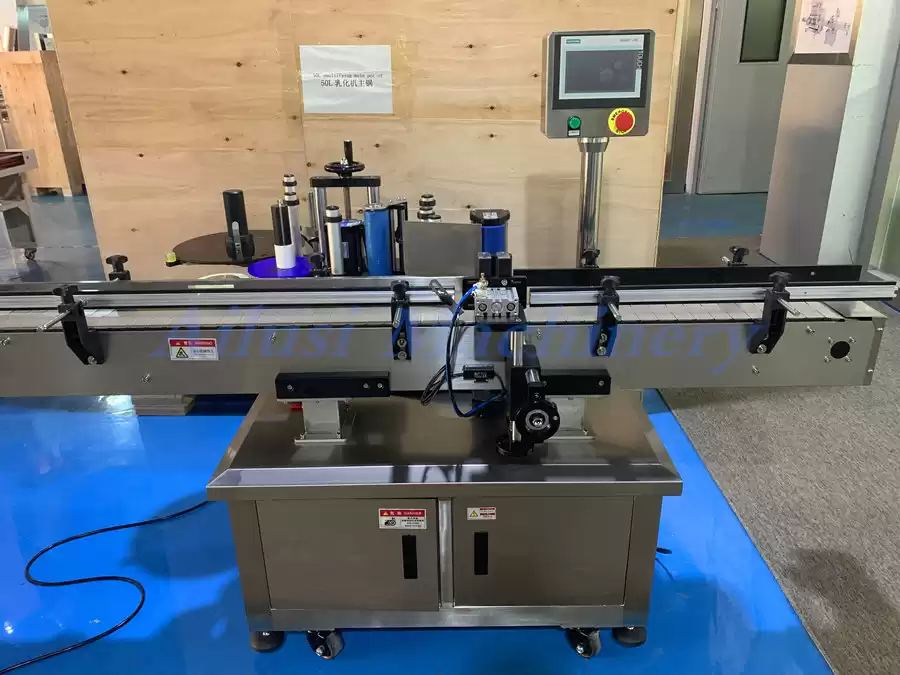

Vertical Round Bottle Labeling Machine

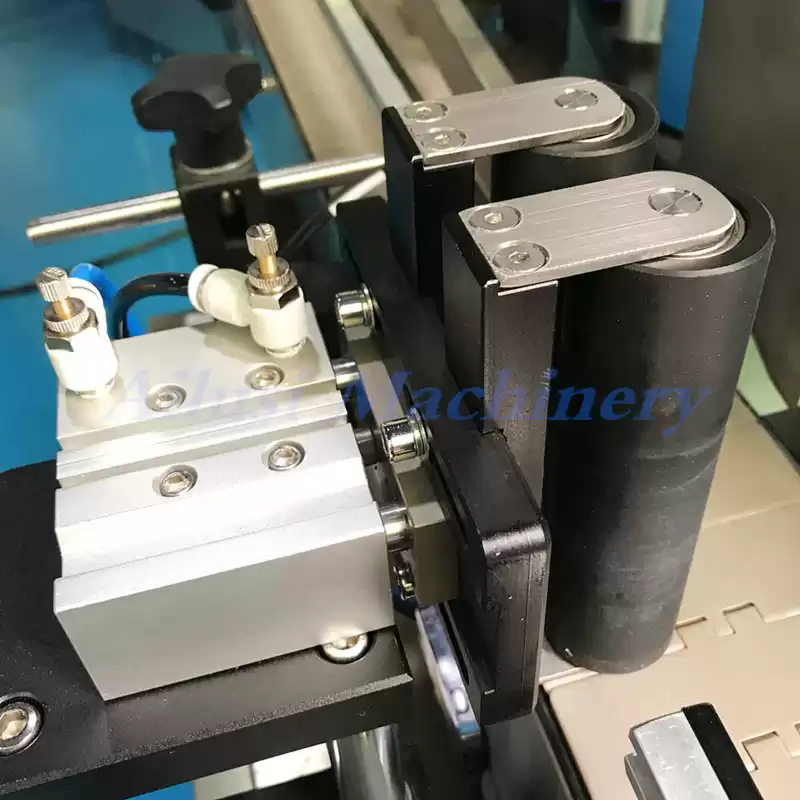

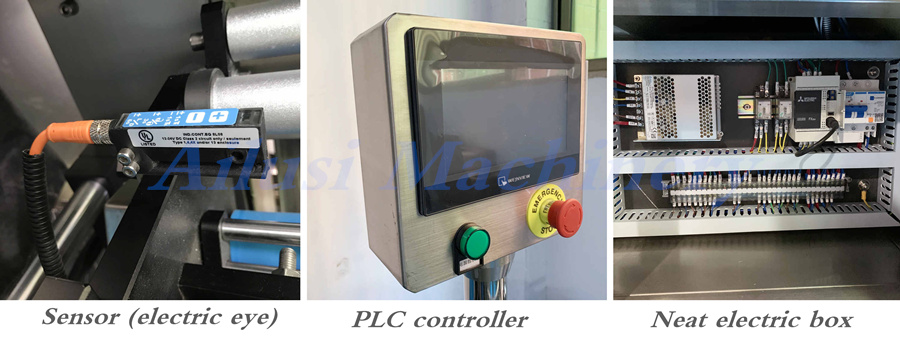

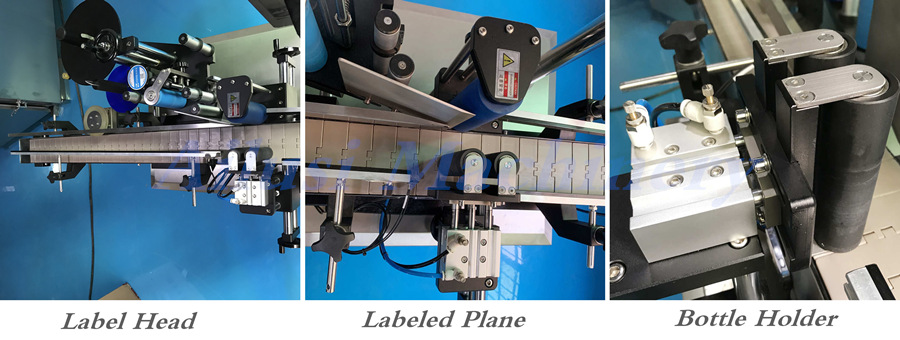

Details of Round Bottle Position Labeling Machine


Technical Parameters:

 1. Voltage: AC220V, Single Phase, 50Hz/60Hz

 2. Power: 1200W

 3. Labeling accuracy: ±1.0mm

 4. Labeling speed: Max. 120 bottles/minutes

 5. Max. Label width: 100mm ( can be customized)

 6. Applicable product size: Φ30-Φ80mm ( can be customized)

 7. Label roll inner diameter: Φ76mm(can be customized)

 8. Label roll outer diameter: Max Φ350mm

 10. Machine dimension: 2000mm(L)* 800mm(W)* 1500mm(H)

 11. Net weight: 300KG

 12. Printer is optional, recommend to match the Inkjet Printer.


Package & Delivery:

To ensure the quality of our service, we will follow the standard package upon delivery:

1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.

2. All products are packed in wooden boxes. Firmly fix the edge of the foot of the equipment to adapt the machine to the requirements of loading and uploading.

packing of Automatic Round Bottle Labeling Machine


Our Servers:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.

Ailusi for Automatic Automatic Round Bottle Labeling Machine
