Features
◆ The screen printing machine can print wine caps in barrels or lipsticks in single color(can be overprinting according to customer requirement), equipped with auto loading system, treatment before printing, printing system and IR oven or can be exchanged with UV curing Etc.
◆ Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical parts made by CNC directly from CAD design.
◆ Adopted PLC control system, touch screen interface. Quick setup & quick toolings change over.
◆ Adopted with No-object No-printing system, auto counter, safety guard, out of working alarm device.
◆ Magic hand loading & unloading unit, auto coading system and other customizations due to order.
Technical Data
Model:SF-12B/UV
Product size:φ（25-60）x(25-70)mm
Max. speed:60pcs/min
Air pressure:5-7bar
Power:AC380V 50/60Hz 5Kw
Dimensions:2430x1850x1800mm

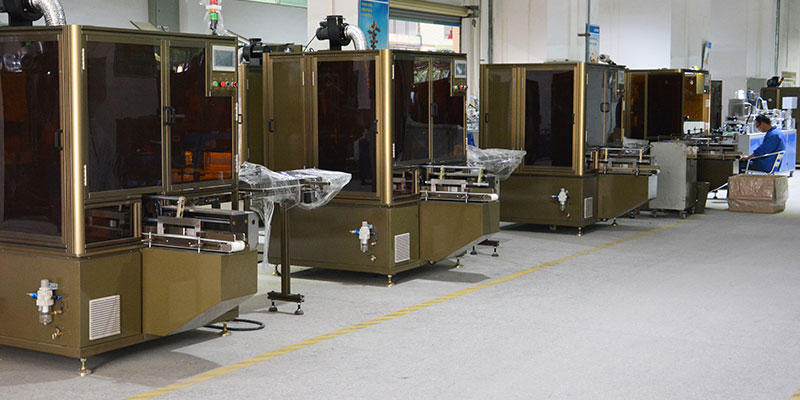

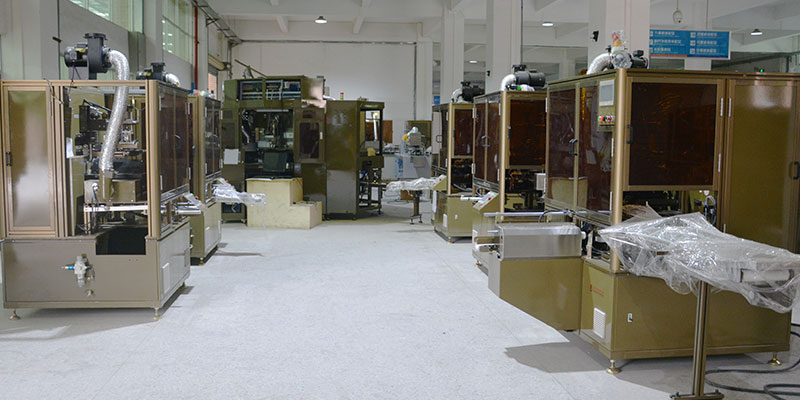

Production and assembly

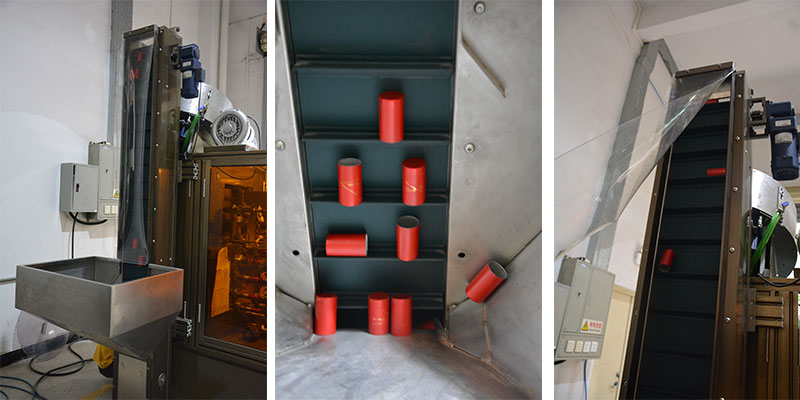

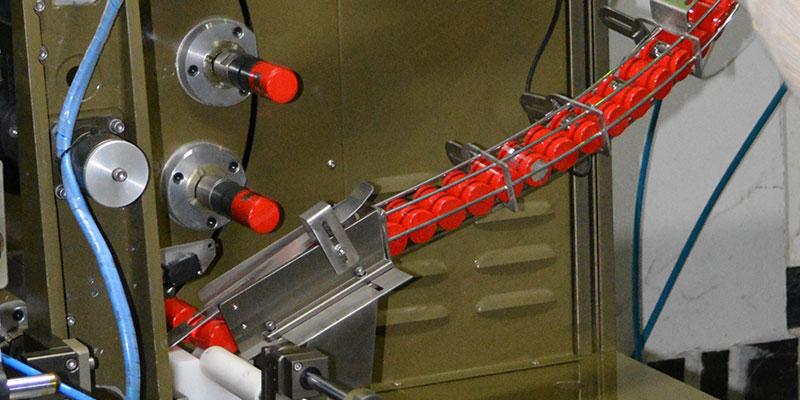

Loading Device

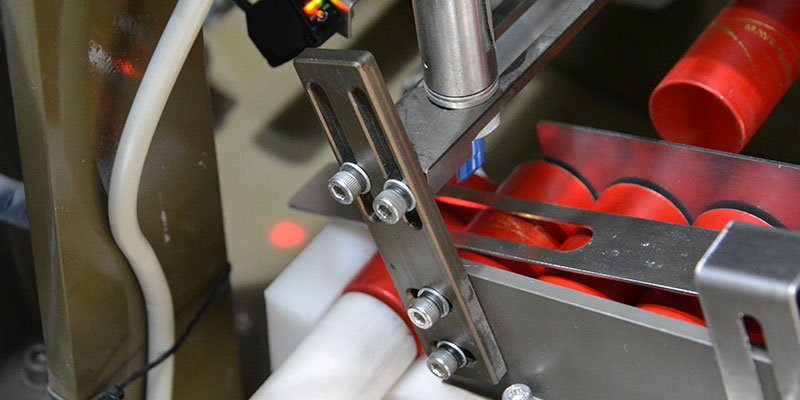

Anti-static System

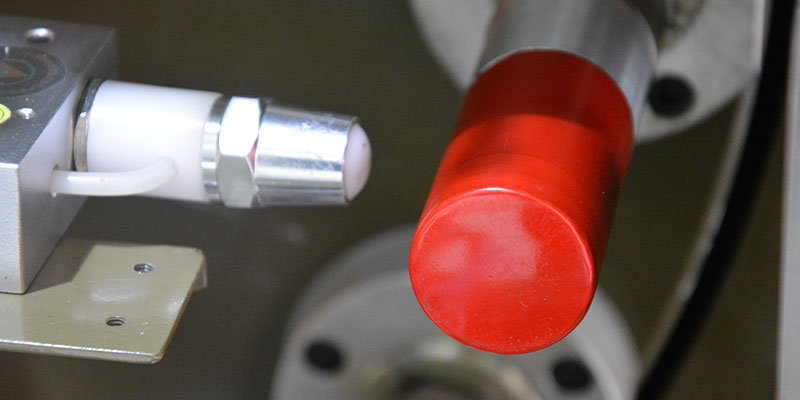

Hot air Device

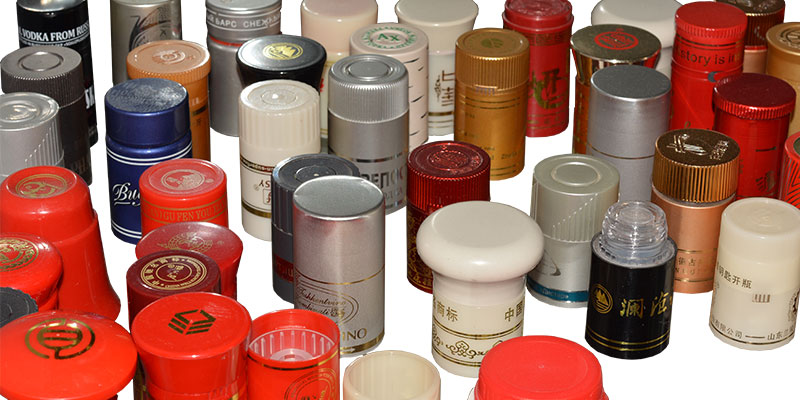

Printing sample
Machine running video
