Full Automatic Coil Production Line

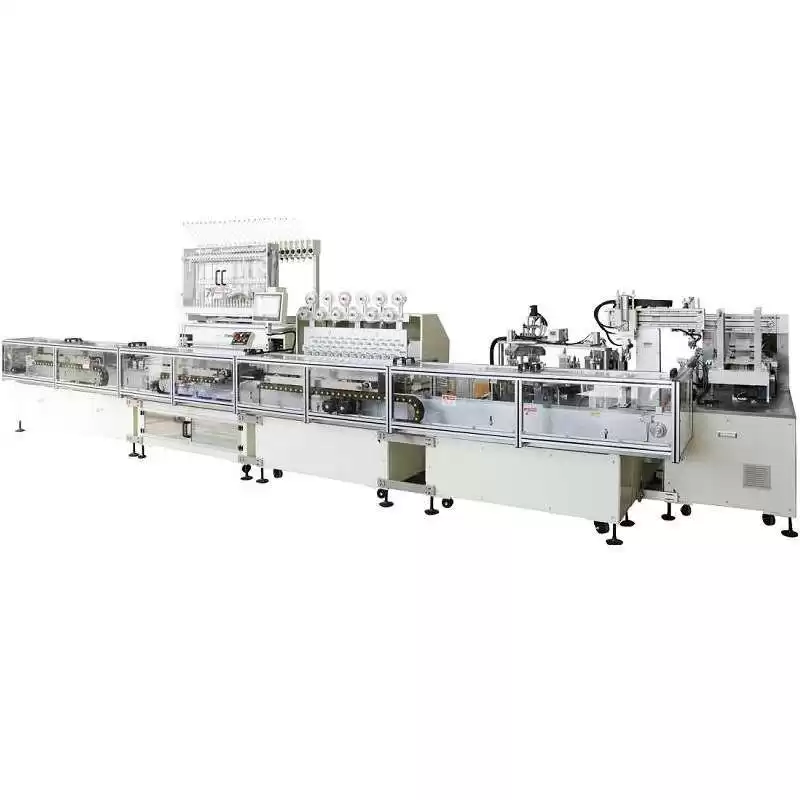

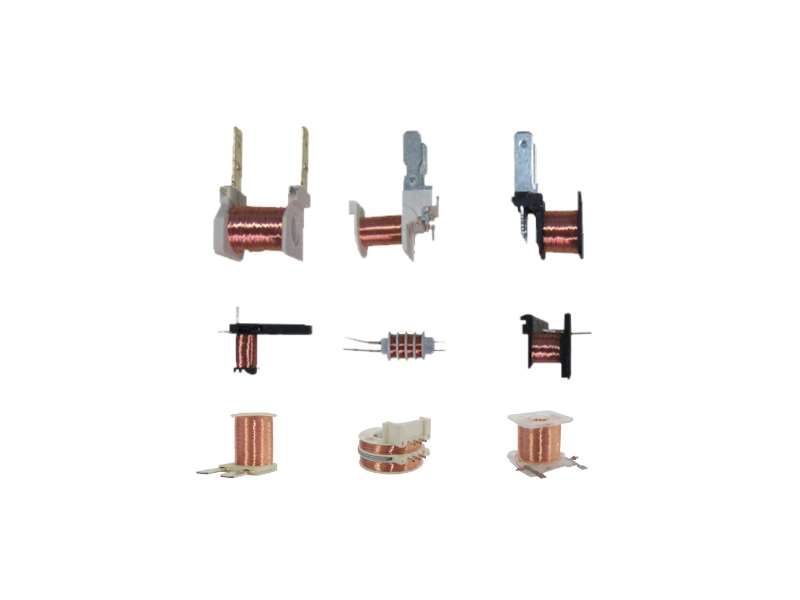

Multiple Automatic Winding and Wrapping Machines and one automatic plate swing machine form an assembly line. The first machine automatically loads the material through the vibrating plate, and the machine is rigidly connected between the machines to automatically flow the products from the previous station to the next station until the pan is completed, so that the entire production line is produced in the same cycle time. The Full Automatic Coil Production Line is suitable for the continuous production of multi-winding coils in large quantities and a single model.
Technical Parameter:
|
Model #
|
STC-1903
|
|
Control System
|
YASKAWA MECHATROLINK-II FCS (Fieldbus Control System)
|
|
Spindle Number
|
24
|
|
Spindle Pitch
|
36mm
|
|
Spindle speed
|
MAX.20,000RPM
|
|
Moving precision
|
±0.01mm
|
|
Wire range
|
0.02-0.5mm
|
|
Max. coiling diameter
|
Ф28mm
|
|
Max. coiling Width
|
40mm
|
|
Traverse moving range
|
X：80 mm，Y：60mm，Z：60mm
|
|
Revolution angle
|
± 1°
|
|
End processing number
|
Not limited
|
|
End processing speed
|
Max. 150/minute
|
|
End process angle
|
Vertical, Horizontal, 45 °as requested
|
|
Station number of soldering machine
|
8
|
|
Max. temperature of the soldering pot
|
520℃
|
|
Machine Size
|
3800(L)*2500(W)*1800(H)mm
|
|
Machine weight
|
2400kg
|
|
Power voltage
|
AC 380V 50HZ
|
|
Power consumption
|
7KVA
|
|
Air pressure
|
0.45-0.65Mpa
|
