Automotive Coolant DEF(Adblue) Refractometer ATC, Fahrenheit DEF Urea Concentration Tester for Coolant Battery Fluid

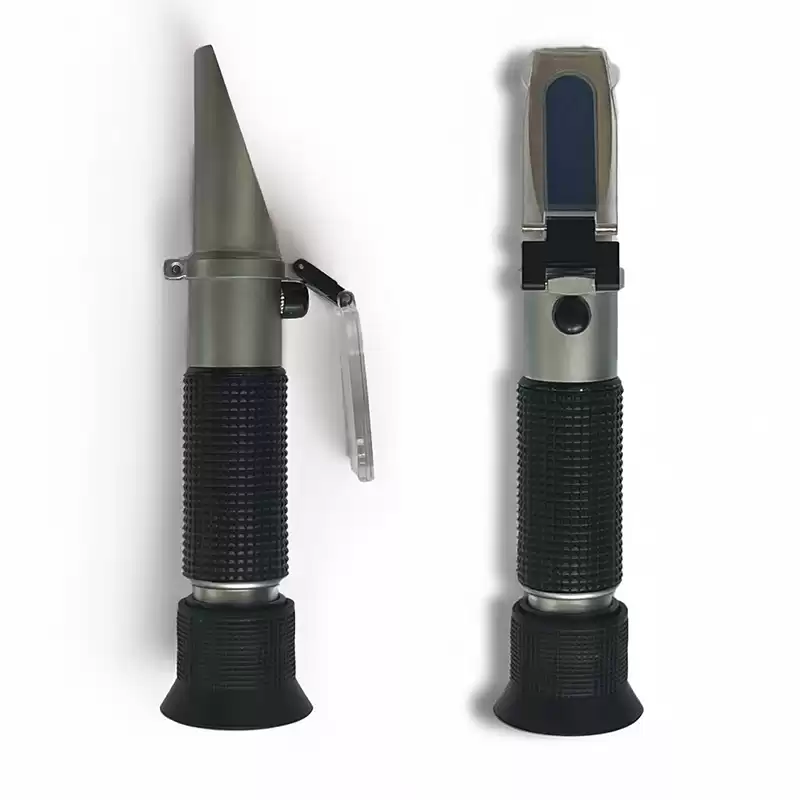

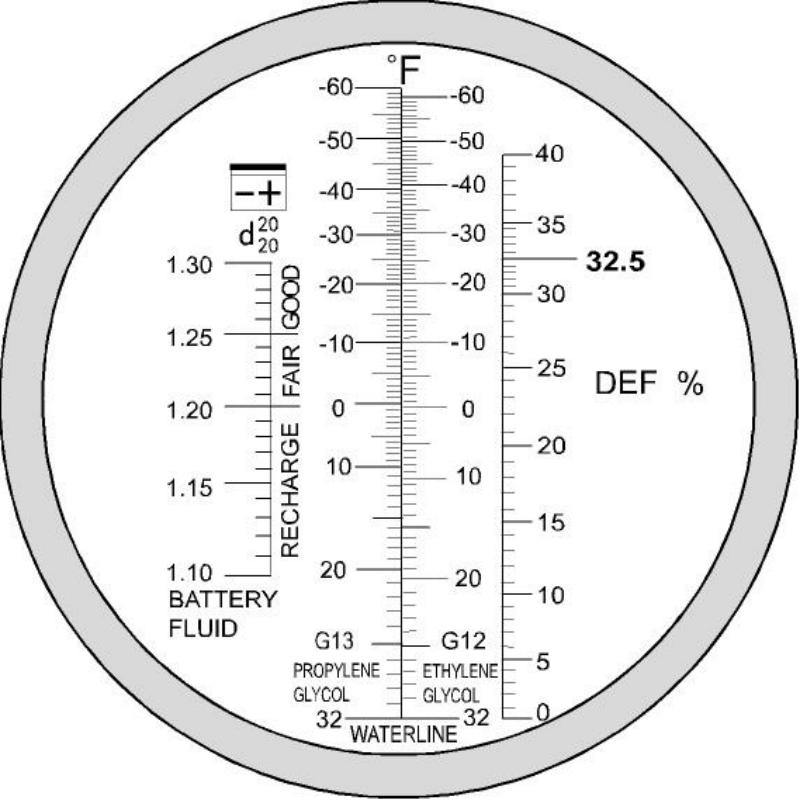

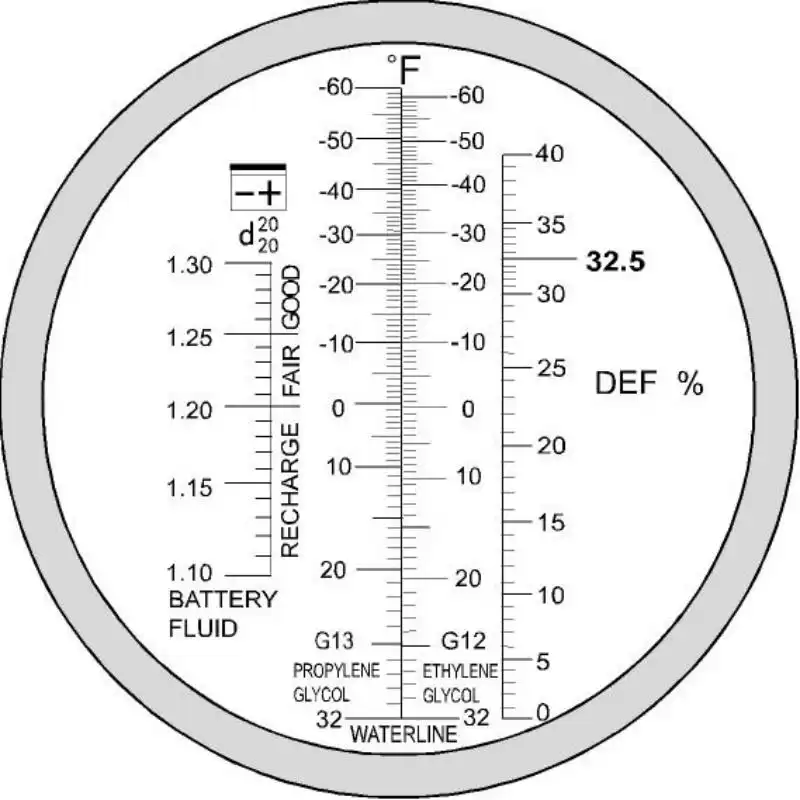

The RHAN-757A Handheld Antifreeze and DEF (Adblue) Refractometer has three functions:

1. It can measure the freezing point temperature of ethylene glycol or propylene glycol - based automotive antifreeze. The reading indicates the temperature at which the measured solution starts to freeze.
2. It measures the urea concentration of DEF (Adblue) to help manufacturers detect whether the concentration of vehicle urea solution products meets the exhaust emission standards.
3. It measures the specific gravity (SG) of battery acid. Specific gravity is the density ratio of battery acid to water, which is used to indicate the charging state of lead - acid batteries. The higher the specific gravity value, the more fully the battery is charged.

This model is excellent for automotive maintenance professionals, fleet service providers, and manufacturers who require a versatile, reliable tool for monitoring multiple fluid systems in vehicles. Its compact design, ease of use, and multi-functionality make it a valuable instrument in both workshop and field environments.

Product Features

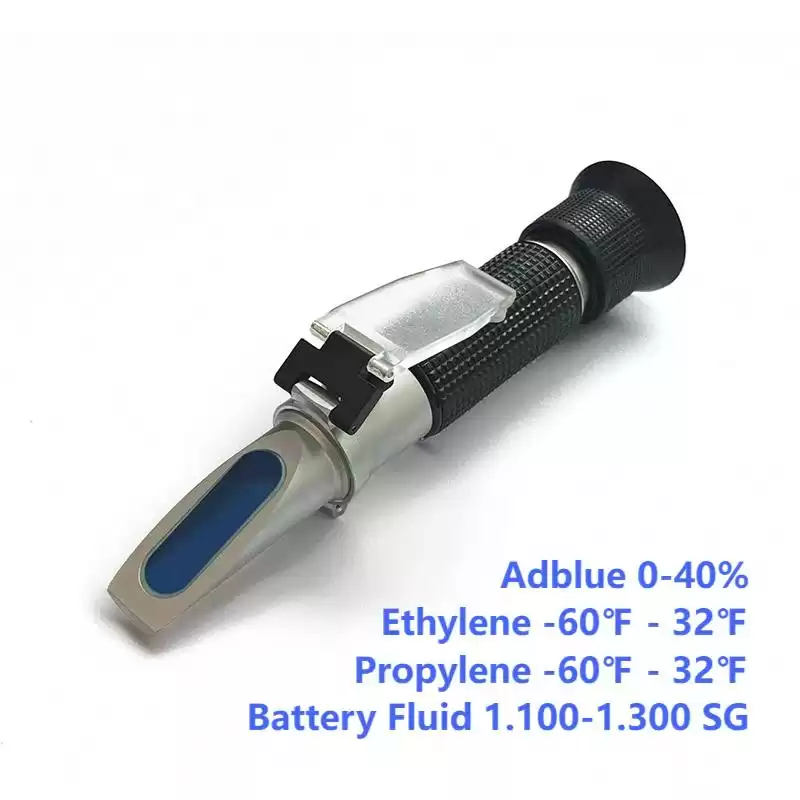

4 IN 1 Function Diagnostic Tool

 Combines coolant, DEF (AdBlue), and battery fluid testing into one compact and reliable instrument.



Automatic Temperature Compensation

 Ensures accurate readings without manual correction across varying ambient temperatures.

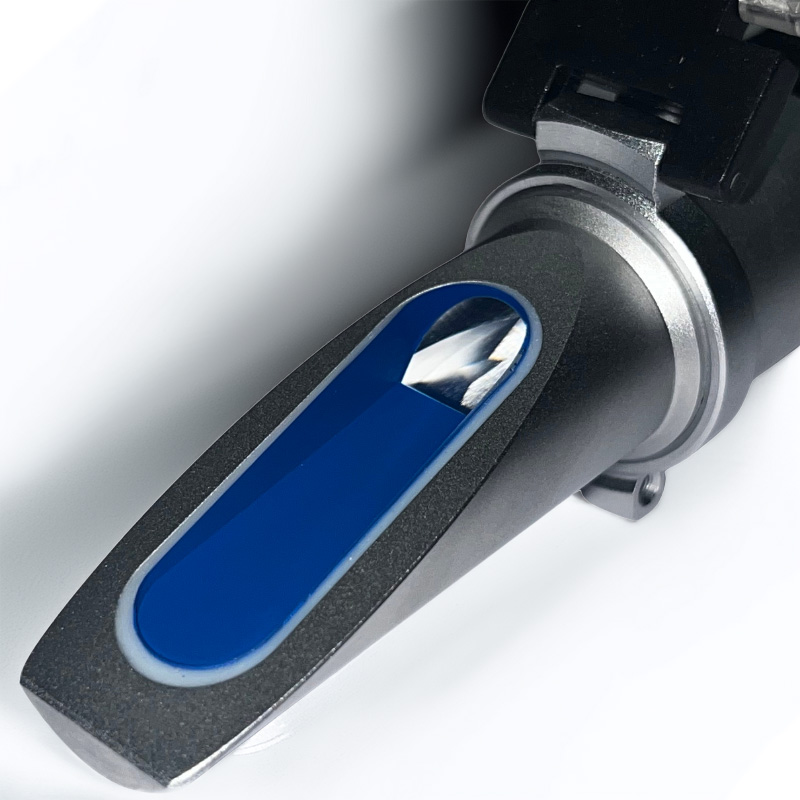

Crown Glass Prism

 Reduces refractive distortion and enhances clarity for precise fluid diagnostics.



Copper Body

 Provides exceptional durability and thermal stability for consistent accuracy in workshop and field use.







Typical Applications

- DEF (AdBlue) Quality Testing

 Verify urea concentration in diesel exhaust fluid to support SCR system performance and emissions compliance.

- Battery Fluid Servicing

 Evaluate specific gravity of battery acid to determine charge level and battery health.

- Routine Vehicle Maintenance

 Used by mechanics for fluid inspection during scheduled vehicle servicing.

- Coolant System Checks (°F)

 Measure freezing points of ethylene and propylene glycol to ensure proper engine protection.





Product Parameters

Model	RHAN-757A
Net Weight	0.25kg
Length	170mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC

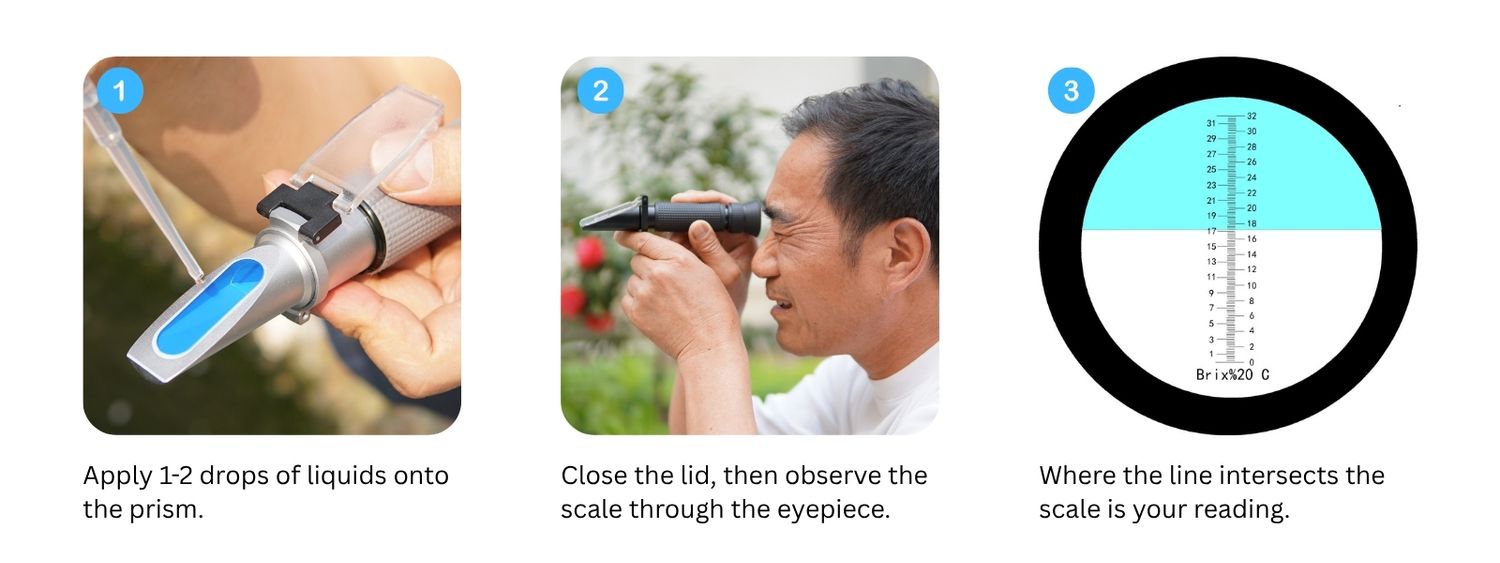

Instruction of Use
