Automotive Coolant Refractometer ATC, Celcius and Fahrenheit Battery Fluid Meter for Coolant Celcius and Fahrenheit

The handheld antifreeze and battery fluid refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

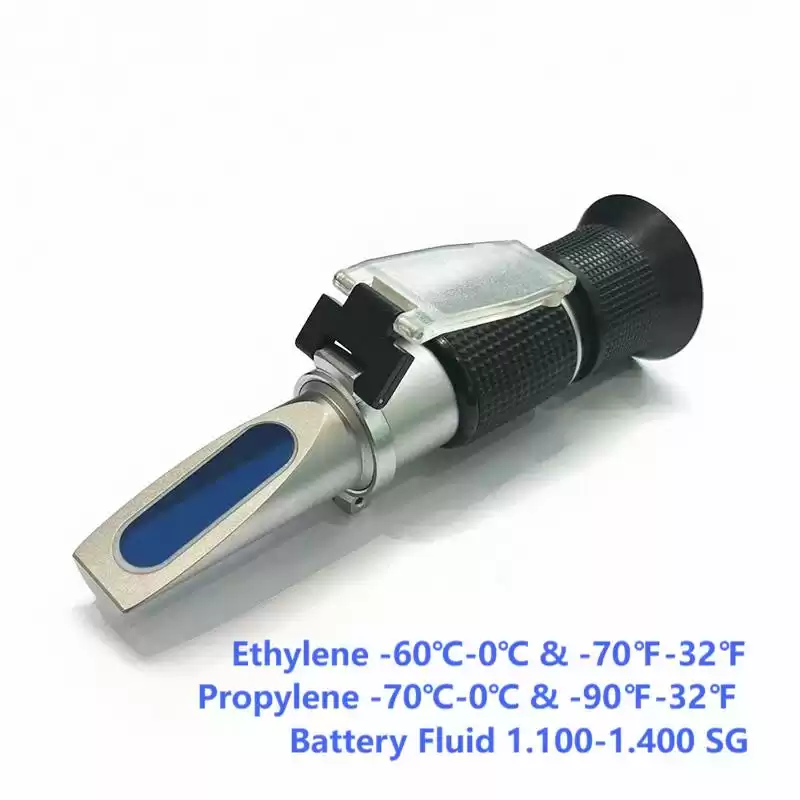

The RHA-787A model handheld antifreeze and battery acid refractometer has two functions.

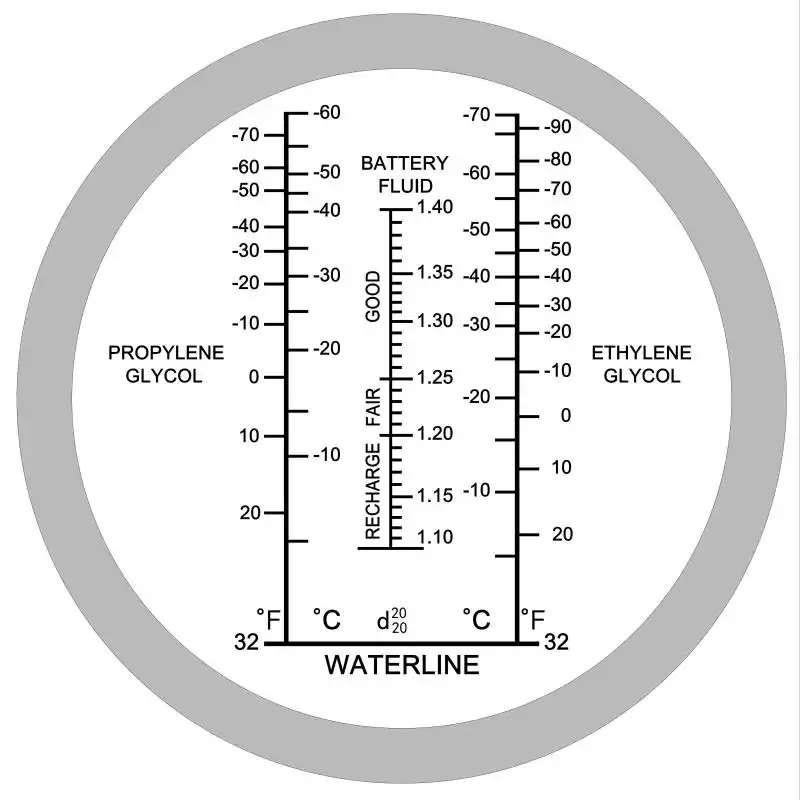

1. It measures the freezing point temperature (in ℃ and℉) of ethylene glycol- or propylene glycol-based automobile antifreeze. The reading indicates the temperature at which the tested solution will begin to freeze.
2. It measures the specific gravity (SG) of battery acid. Specific gravity is the density of the acid compared to water and indicates the state of charge of a lead-acid battery — higher sg means the battery is more fully charged.

Product Features

Dual-Scale Temperature Readings (°C & °F)

 Displays coolant freezing points in both Celsius and Fahrenheit—ideal for global automotive use and cold-climate servicing.



5-in-1 Diagnostic Tool

 Covers coolant freezing point for ethylene and propylene glycol, and battery fluid specific gravity in one compact device.



Wide Propylene Range for Extreme Cold

 Reads propylene glycol down to -90°F / -70°C, making it ideal for heavy-duty applications in severe climates.







Typical Applications

- Coolant System Checks (°C & °F)

 Measure coolant freezing points for both glycol types in Celsius and Fahrenheit—perfect for international and cold-region vehicle maintenance.

- Automotive Service & Seasonal Maintenance

 Used by technicians to prepare vehicles for winter and verify fluid health during regular servicing.

- Battery Fluid Diagnostics

 Evaluate the specific gravity of battery acid to assess state of charge and overall battery health.

- Off-Road & Heavy Equipment Inspection

 Essential for maintaining cooling systems and batteries in tractors, loaders, and industrial machinery.





Product Parameters

Model	RHA-787A
Net Weight	0.24kg
Length	153mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC
