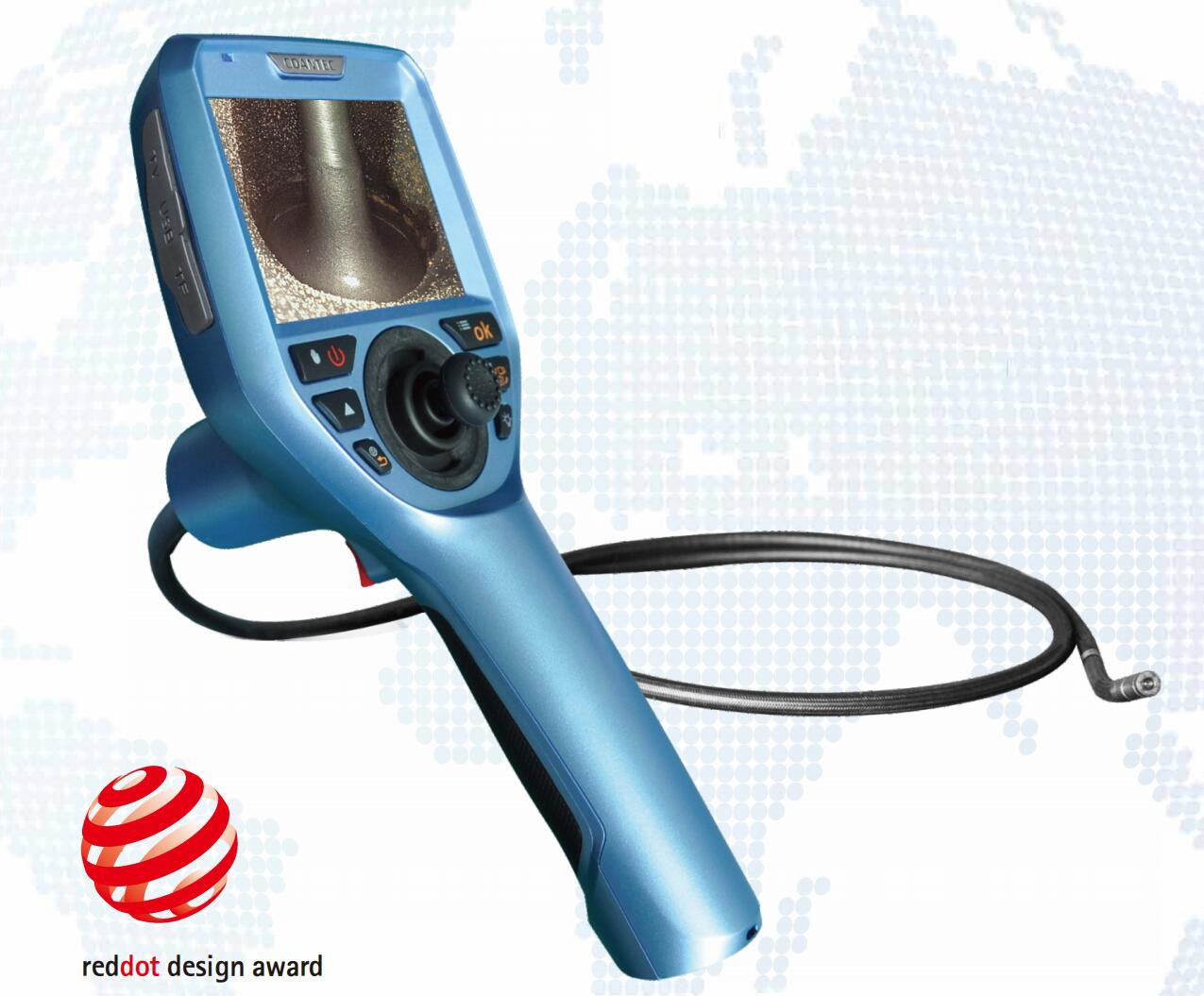

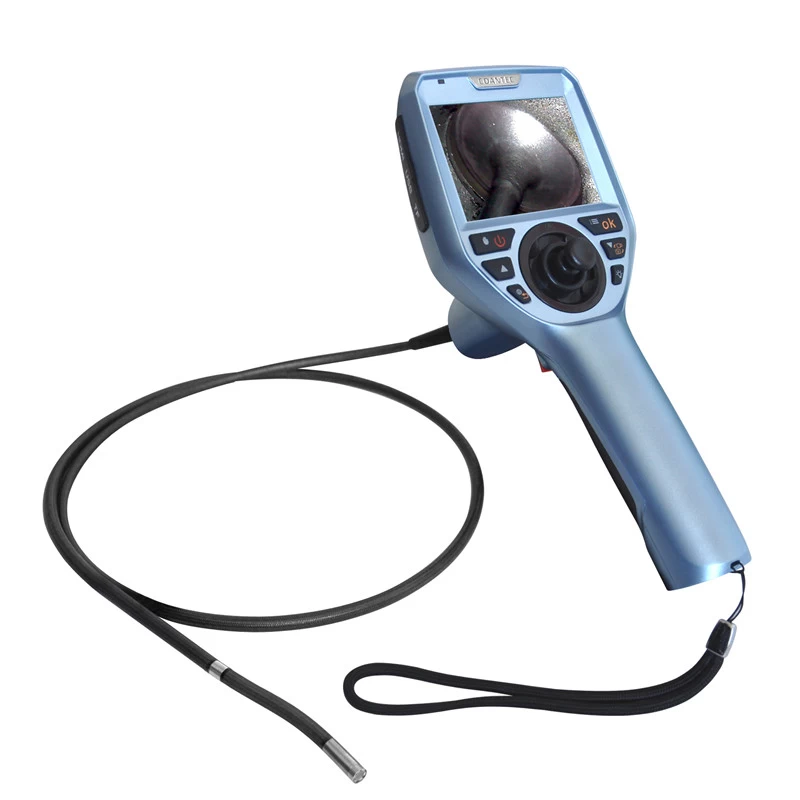

Automotive Endoscopes of Coantec ME+ series

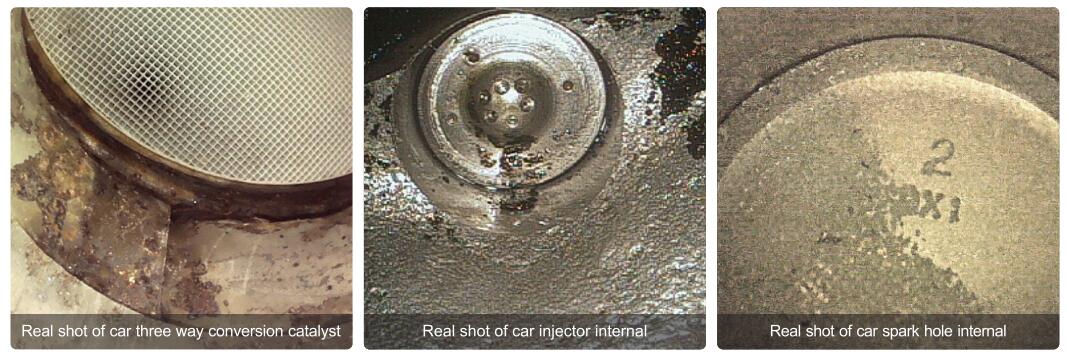

Ultra high definition Camera, ability to take images and videos
ME+ uses a highlight 3.5 inch TFT daylight diaplay, equipped with 690,000 pixel Ultra HD camera. It reflects the still image and dynamic video of the object. Ability to take images and videos, capture images during video recording. High quality image and video data are collected. The pictures are stored in BMP loeeless compression format, video is stored in MP4 format, the effect is closer to the real inspecting situation.

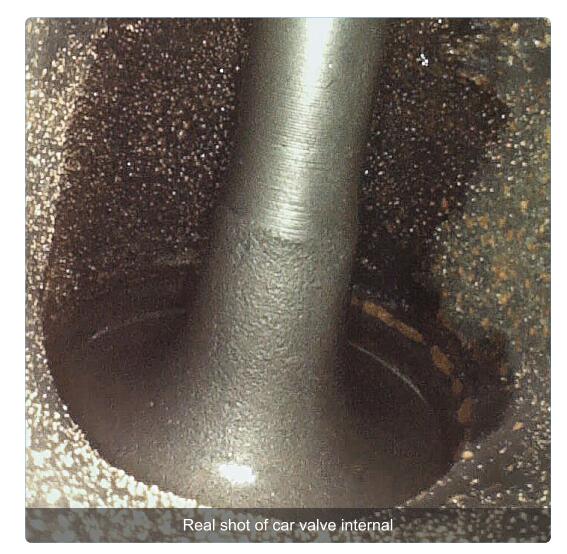

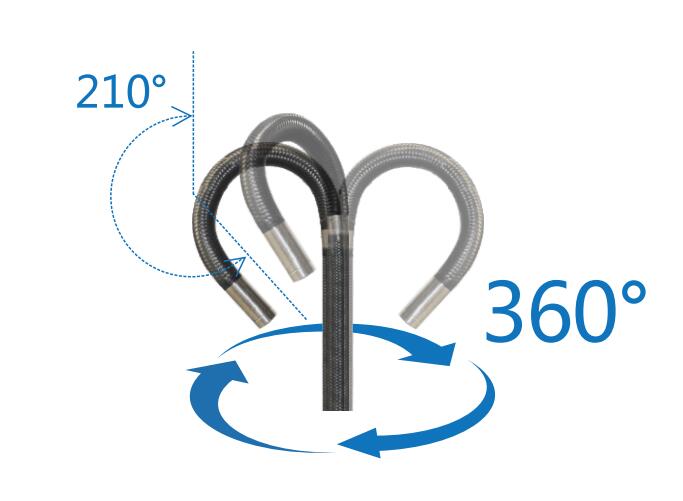

210° large bending angle, can check the valve directly

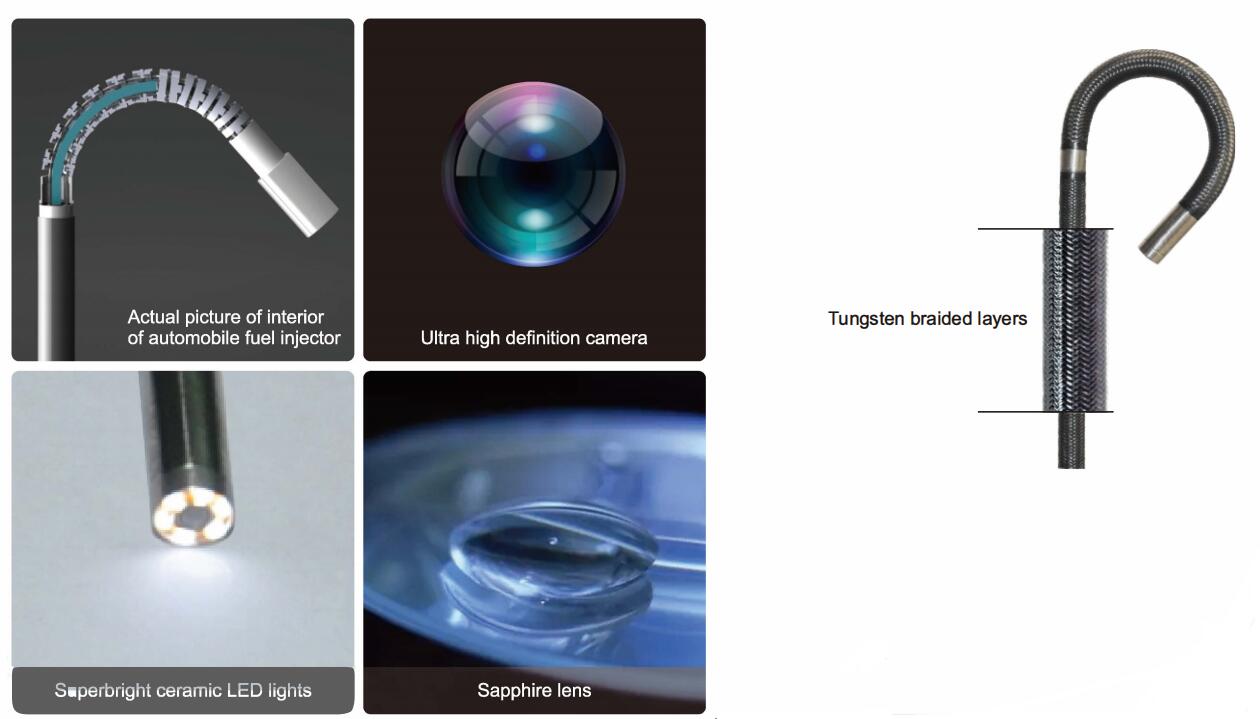

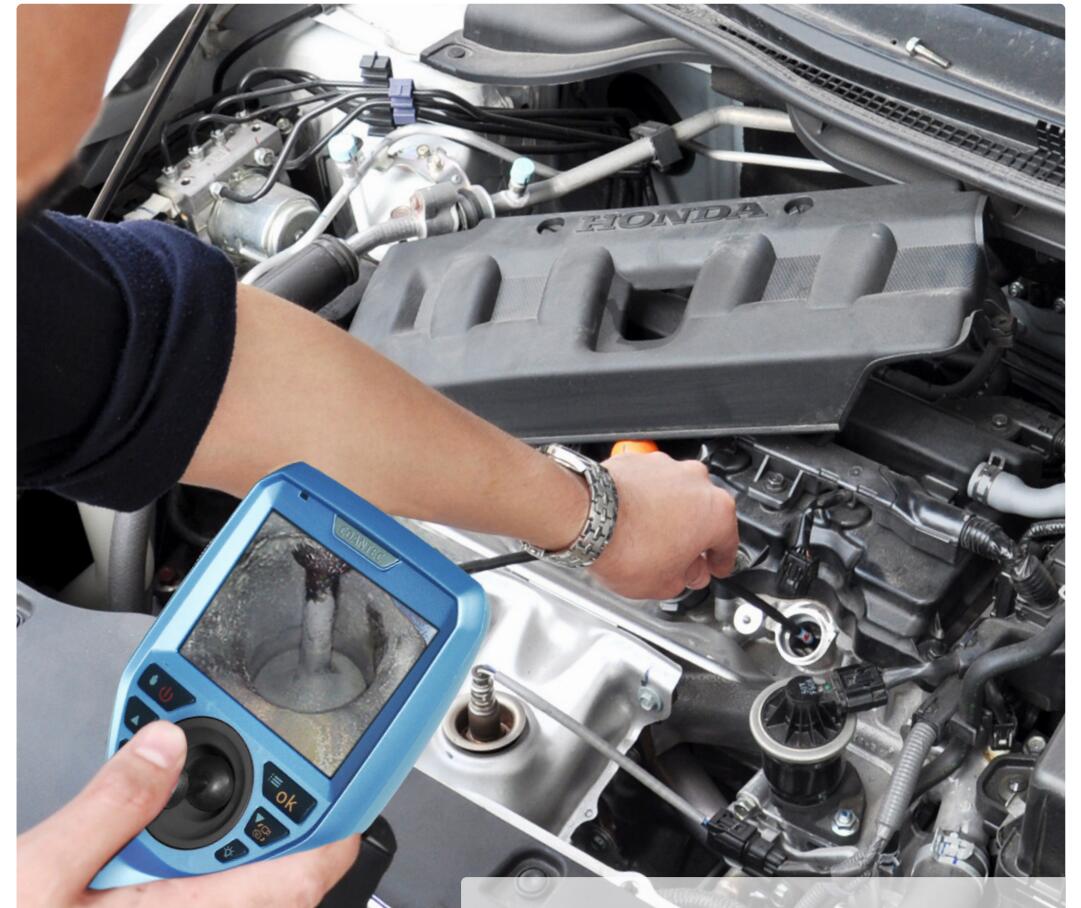

The ME+ probe adopts a new design of the precision turning components, and the maximum bending angle can reach to 210° when the tube in the straightened state, and a wider range can be observed. When inspecting automotive engines, there is no need for multi angle adjustment, and the valve can be seen directly.
Strong adaptability to different environment, oil resistant and corrosion resistant

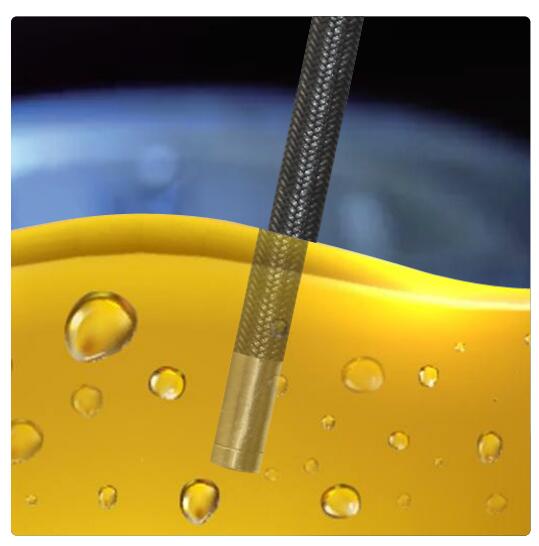

The insertion tube is made of tungsten alloy wire. The latest high strength titanium alloy probe, new double isolation structure design, more exquisite laser welding process, more waterproof, oil resistant, corrosion resistant, suitable for a harsher working environment.

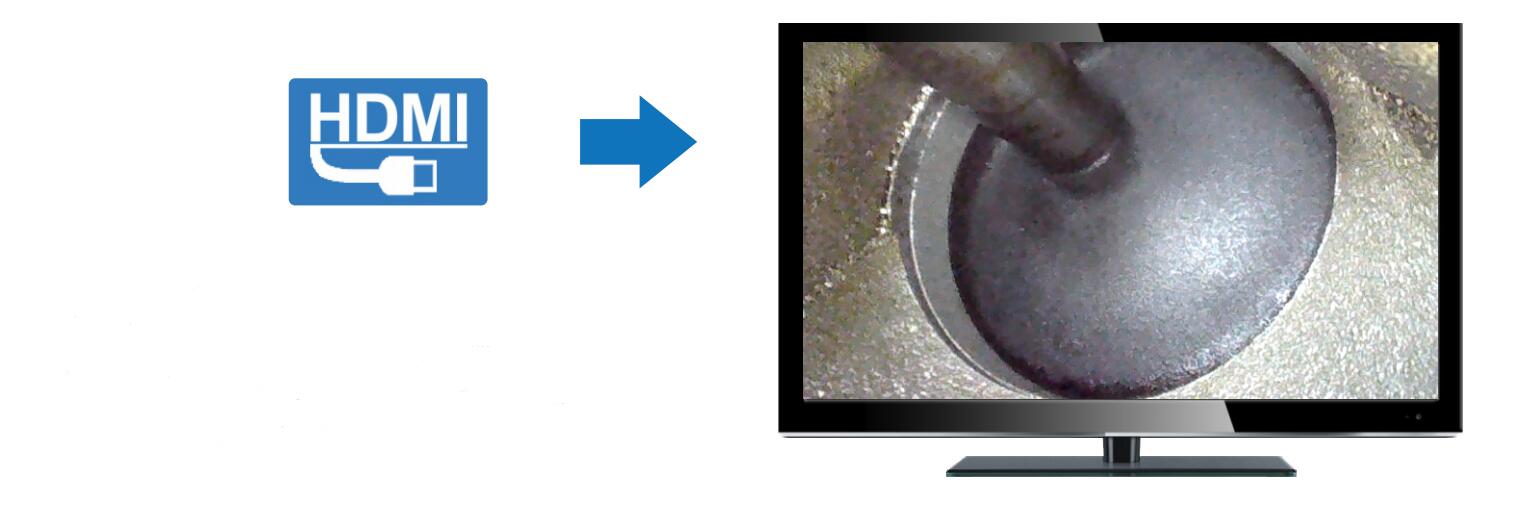

The host can be connected to a large screen through the HDMI
The host can be connected to a large screen through the HDMI. High-quality transmission of uncompressed high-definition video, easy to judge the test results for off-site personnel, more suitable for multi-preson consultation.
The insertion tueb can withstand 200℃ high temperature without waiting for the car to cool down. (Optional)
A new cooling system has been added to the insertion tube, which allows the probe to operate normally at 200℃ without waiting for the engine to cool down for a long time.
Easy to use, light and portable economical and practical

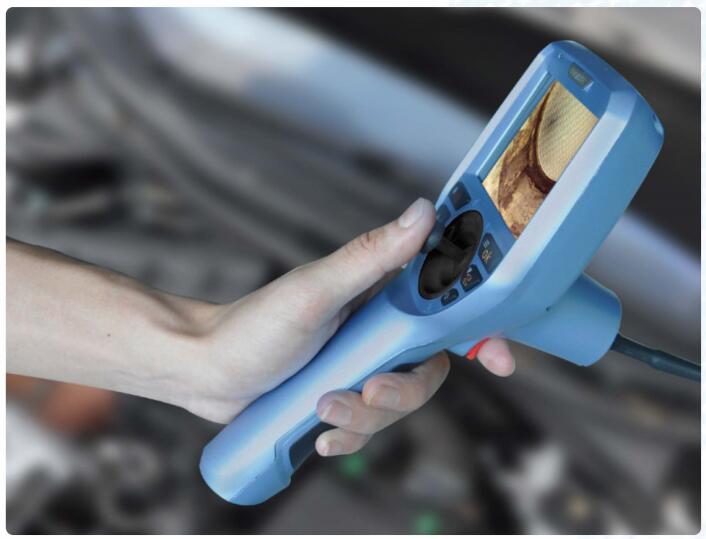

Excellent ergonomic design, light and portale, the weight is only 0.45kg with battery. Can be operated easily with one hand.
Simple and easy-to-understand menu navigation, more user-friendly UI interface, so that the green hand can also quickly start to use, affordable price, ME+ is your soild choice.
|
System:
|
|
|
Integrated Design
|
Probe, Screen, Insert tube, Handle, Battery and other integrated
handheld design
|
|
Compatibility
|
Replacable consumable tungsten insertion tubes
|
|
Tube Length
|
1m
|
|
Probe Control
|
Mechanical 360° all-way articulation
|
|
Bending Angle
|
Maximum 210°
|
|
Illumination Type
|
Front LED light guiding (LED light life ≥30,000 hours)
|
|
Illuminance
|
Maximum 20,000lx
|
|
Brightness Level
|
Manual 7-level adjustment
|
|
White Balance
|
Automatic white balance, central focus photometry and image processing
technology to prevent surface exposure of bright objects
|
|
Display
|
3.5 inch TFT daylight display, visible under sunlight
|
|
Image Resolution
|
960*720
|
|
Photo / Video
|
Yes
|
|
Document Format
|
Image: BMP / JPEG ; Video: MP4
|
|
Image Preview
|
List preview mode, full-screen view optional / time watermarking.
|
|
Memory
|
Standard 8G capacity TF card, maximum support 32G
|
|
Equipment Durability Protection Device
|
Buffer protection device for connecting main engine and wear-resistant pipe.
|
|
Insertion Tube
|
Oil resistant and anti-corrosion
|
|
Optional
|
Cooling equipment
|
|
Menu Language
|
Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French,
German, Portuguese, Spanish, Russian
|
|
Camera:
|
|
|
Probe Diameter
|
φ6±0.1mm
|
|
Pixels
|
690,000pixels
|
|
Digital Zoom
|
Support real-time 4x zoom, 8x partial zoom when playback
|
|
Probe Material
|
Titanium alloy protective shell
|
|
Depth of Field
|
25-100mm
|
|
Field of View
|
85°
|
|
Visible Direction
|
Front
|
|
Host:
|
|
|
Host Weight
|
≤0.45kg (with battery)
|
|
Waterproof
|
Host IP55, Probe IP67
|
|
Output Port
|
HDMI
|
|
|
|
|
Battery:
|
|
|
Power
|
18650 rechargeable lithium battery,real-time online charging.
|
|
Voltage
|
DC 4.2V
|
|
System Operating Time
|
≥4 hours (1 battery)
|
|
|
|
|
Operation Environment:
|
|
|
System Operating Temp
|
-10 ~ 50°C
|
|
Tip Operating Temp
|
-20 ~ 60°C
|
|
Storage Temperature
|
-20 ~ 60°C
|
|
Relative Humidity
|
15% ~ 90%
|
|
|
|
|
Accessories:
|
|
|
Standard Configuration
|
ME+ Videoscope, Instrument case, Card reader, 8G TF card, Battery,
User manual.
|
|
Optional
|
Cooling system for insertion tube, Side reflective mirror,
Detachable magnetic base, HDMI cable.
|
