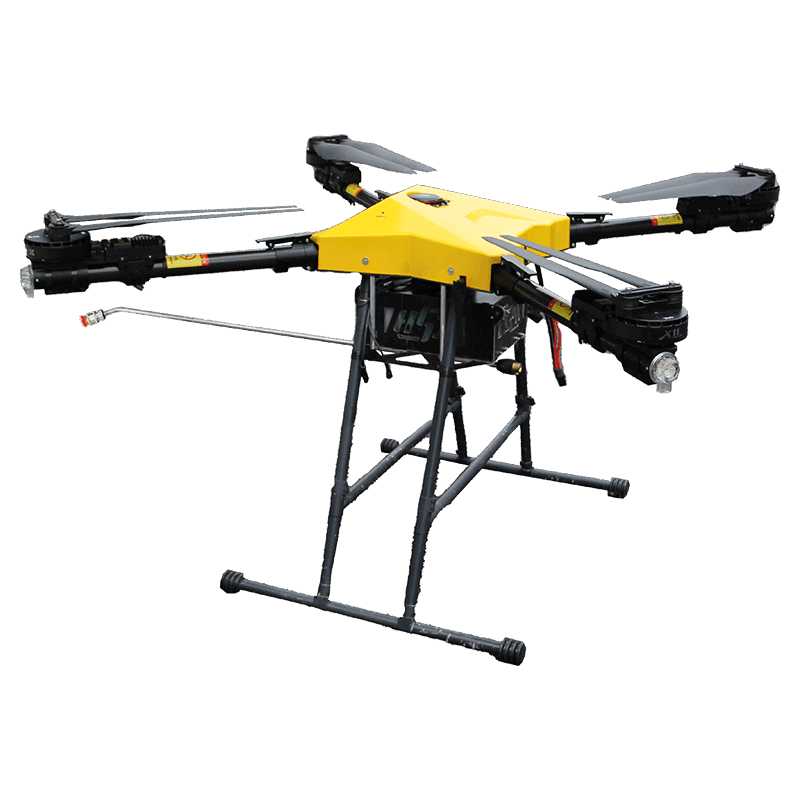

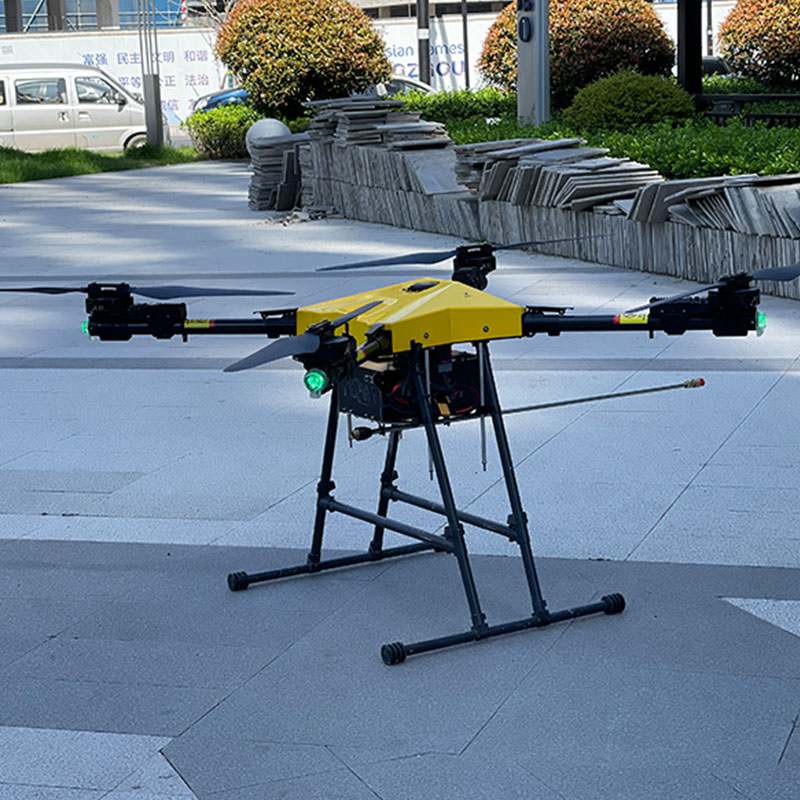

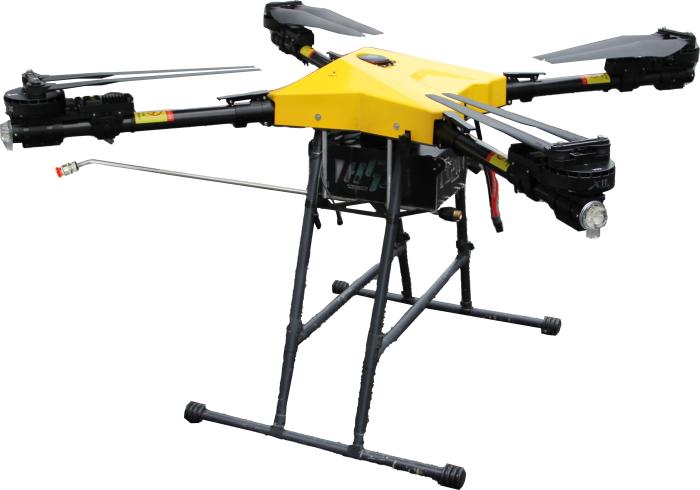

Aviation-Grade Folding High-Pressure Photovoltaic Panel Cleaning Drone

         This cleaning drone is made of aviation-grade carbon fiber and aluminum alloy for its body. The boom adopts an advanced folding structure design, which has good impact resistance and is extremely convenient for storage and transportation. In addition, this drone has excellent waterproof performance and can operate stably even in complex environments. It is also equipped with a large-capacity water tank and can flexibly configure nozzles of various angles according to different user needs, which improves the cleaning efficiency. Compared with manual cleaning of rooftop photovoltaic panels, it significantly reduces the labor intensity of workers. When working in high-risk environments, it can fully ensure the safety of workers.







Product features

Folding and storage design makes transportation convenient

Made of aviation carbon fiber and aluminum alloy

Suitable for cleaning in small and medium-sized areas

Handle wind speeds of level 7 with ease





Technical parameters





QX-08

Expanded size

1900*1900*660mm

Folding size

660*660*660mm

Material

Aviation carbon fiber + aviation aluminum

Weight

20kg(excluding battery

Maximum takeoff weight

59.6kg

Flight radius

≤5000m

Maximum flight speed

15m/s

Maximum working height

50m

Water tank capacity

30L

Wind resistance grade

≤Level 7

Waterproof grade

IP67

Flight time

8 to 15 minutes (standard configuration), 20 to 30 minutes (customization required)

Standard configuration battery

14s 28000mAh lithium battery

Charger

100~240V  3000W

Ground pressurization system

Size

610*450*480mm

Weight

50kg

Power

5.5kw

Maximum pressure

28mpa

Maximum flow rate

32L/min

Voltage

220V

Water inlet method

Connect the self-priming faucet/pipe

Nozzle

Angle

45°90°180°

Length

1.06m

Weight

1kg

The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
