Freon Free 90L remote control 1 phase electronic water power evaporative air cooler
This industrial evaporative air cooler is engineered for high-performance cooling across diverse climate conditions, achieving a supply air temperature drop of 5–15°C. It features three high-efficiency evaporative pads with up to 82% evaporation rate, supported by a standard 3-speed controller for simple operation and adaptable airflow control. The open water distribution system ensures reliable circulation with minimal maintenance.
Designed for commercial and project use, the unit offers mobility via integrated wheels, requires no fixed installation, and includes built-in ice box support for enhanced cooling output. With low energy consumption, reduced upfront investment, and fresh air circulation with added humidification and purification, it serves as a cost-effective alternative to traditional air conditioning for warehouses, workshops, event halls, and retail spaces. Automatic water level protection ensures safe operation in demanding environments.
Specification:
| Model |
AZL12-ZY13B |
| Airflow |
12000m³/h |
| Pressure |
80Pa |
| Power |
0.3kw |
| Electric source |
110/60V/Hz, 220/50V/Hz |
| Fan Type |
Axial |
| Vent Size (LXW) |
654*673mm |
| Fan Speeds |
1-phase, 3-speed |
| Noise |
≤60dBA |

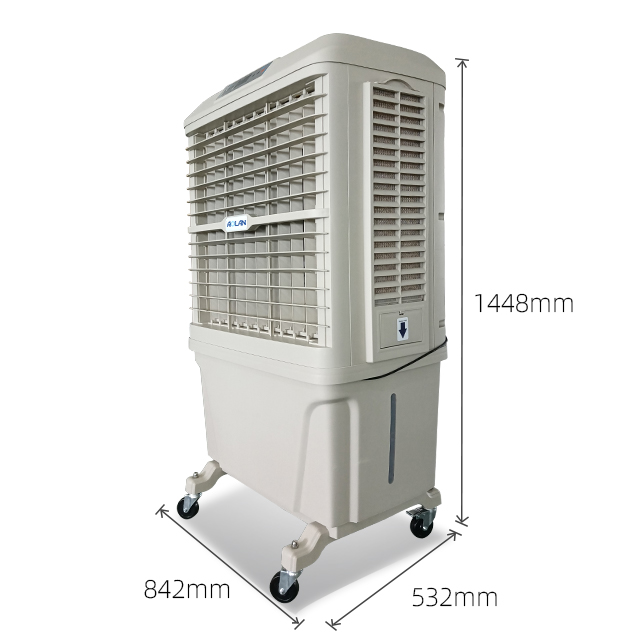

| Dimension (LXWXH) |
842*532*1448mm |
| Net Weight (±3kg) |
33kg |
| Pad Size (LXWXH) |
703*641*100mm
210*580*60mm
|
| Water Capatcity |
90L |
| Aty / Full (40HQ) |
112 |

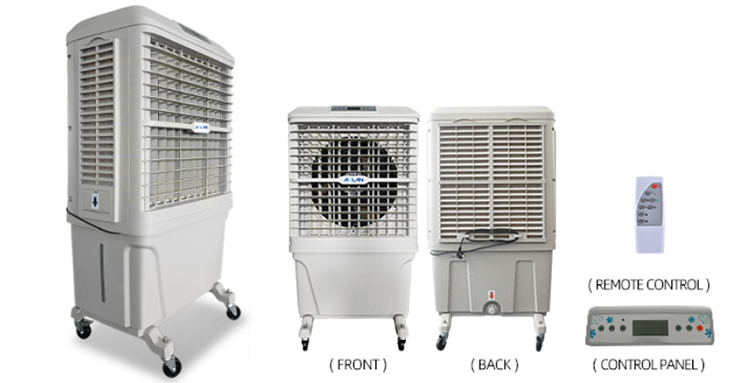

| Controller |
LED + Remote |
Characteristics:

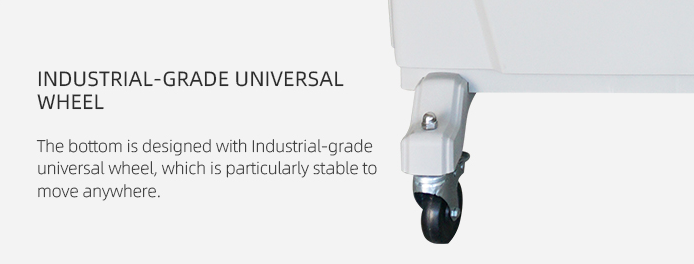

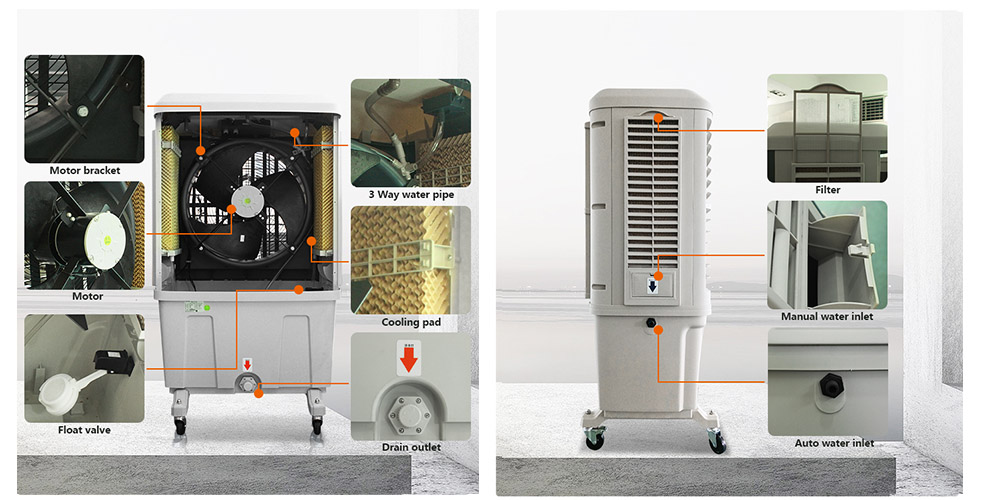

INDUSTRIAL-GRADE UNIVERSAL WHEEL
The bottom is designed with Industrial-grade
universal wheel, which is particularly stable to
move anywhere.

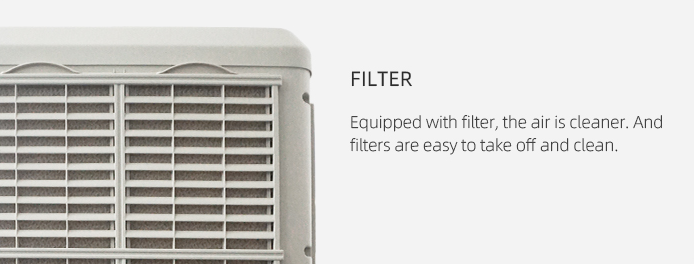

FILTER
Equipped with filter, the air is cleaner. And
filters are easy to take off and clean.

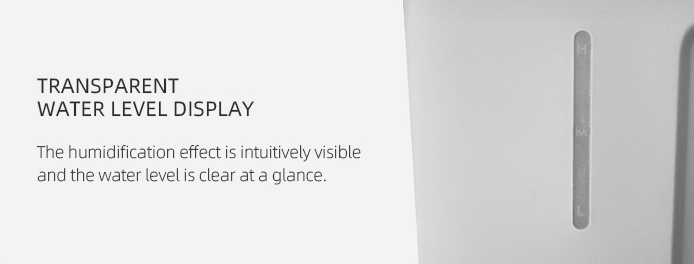

TRANSPARENT
WATER LEVEL DISPLAY
The humidification effect is intuitively visible
and the water level is clear at a glance.

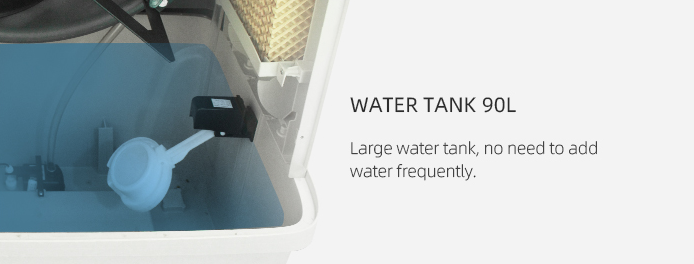

WATER TANK 90L
Large water tank, no need to add
water frequently.
More advantages:
1. Best cooling effects can be achieved based on reasonable design (supply air temperature difference could be 5-15℃ in different climates).
2. Using 3 pcs high efficiency evaporative cooling pads with best cooling effects, the evaporation efficiency reaches to 82%.
3. Using standard controller, easy operation with 3 speeds optional.
4. Using auto-control water system with open-type water distribution, water flow is smooth and not easy to block.
5. Compared to conventional compressed central air conditioning, less investment, lower energy consumption.
6. Compared to conventional air conditioning, cool air enters with hot air exhausted which allows fresh cool air inside all the time.
7. There are wheels at the bottom, which can be moved completely without any installation work.
8. Unlike traditional fans, it humidifies and purifies the air at the same time, improving the surrounding environment.

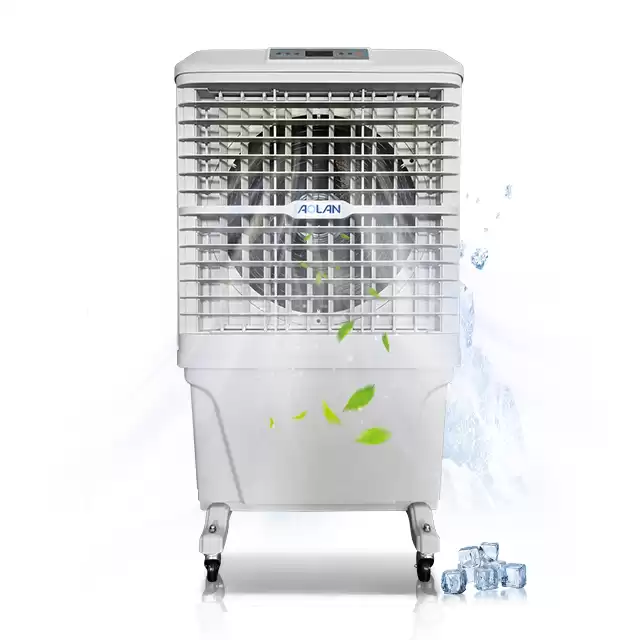

9. with ice box for better cooling performance, The top cover can be open and easy to replace ice box.
10. with water level float, which can stop pump when there is no water in tank, we call it water lack protection.
