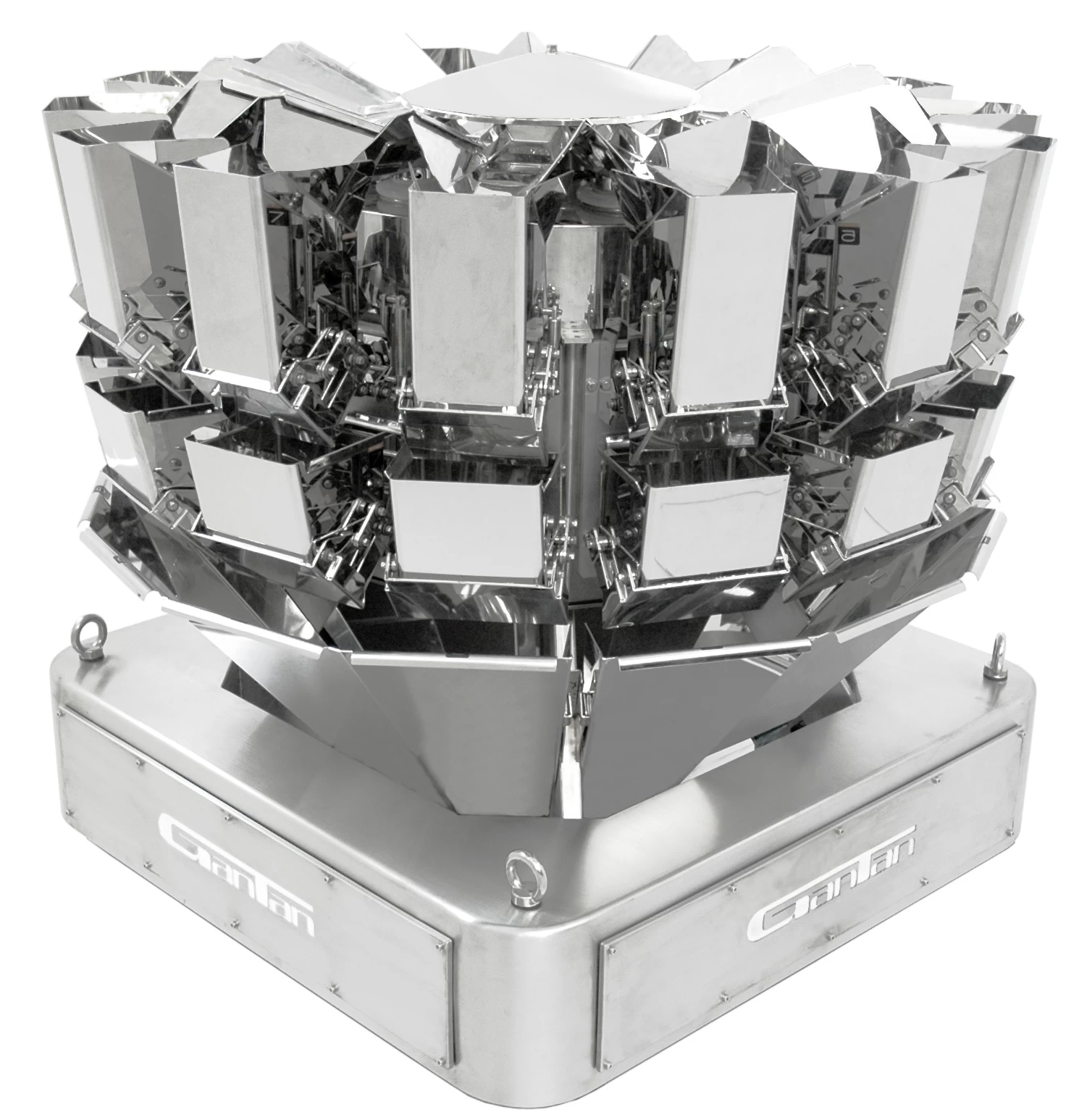

Gantan B series weigher is considered the most advanced, user friendly and reliable chinese weigher

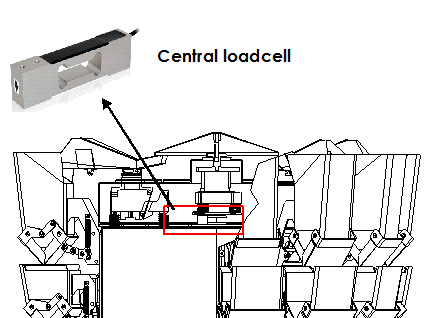

Loadcell product level control- Loadcell is used under the central vibrator to control the feeding of
the bucket elevator. It is more efficient and precise to control the
product level on the weigher

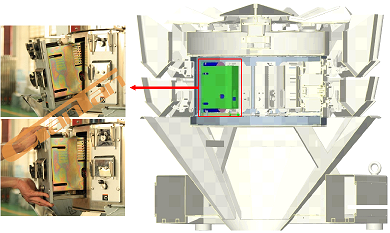

Modular control - Each head has an independent control unit. It will not interfere with other heads even when fault is developed. This design will significantly reduce the downtime of the machine and minimise the risk of machine failure.

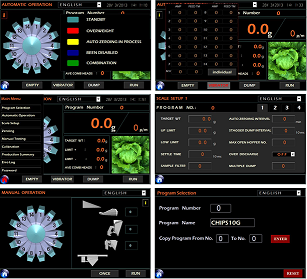

New interface
The quickest leaning and easiest HMI interface available on a Chinese weigher.

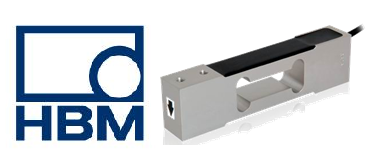

Only the Best load cells
Specification:
|
Weigh Heads
|
10
|
14
|
|
Max Speed
|
65 wpm
|
90 wpm
|
|
Hopper Capacity
|
1.3L, 2.5L, 4L & 5L
|
1.3L, 2.5L, 4L & 5L
|
|
Control Panel
|
10" touch screen
|
10" touch screen
|
|
Driving system
|
step motor
|
step motor
|
|
Level control
|
Loadcell
|
Loadcell
|
|
Surface
|
plain, dimple, teflon
|
plain, dimple, teflon
|
|
Material
|
SUS 304
|
SUS 304
|
|
Power Supply
|
220V / 50HZ
|
220V / 50HZ
|

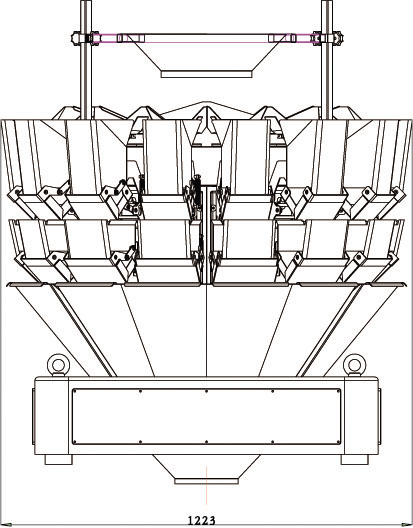

* All product layout on the website is only an estimate, a final confirmed layout will be provided upon enquiry.
Features:
-
Remote control by WIFI connection ( optional )
-
Camera connection ( optional )
-
Automatic frequency control of vibration
-
Auto zeroing during operation
-
Self diagnostic in pop up window
-
Multiple dumps for bulk weighing
-
Stagger dump for applications with large unit size
-
Rejection of unqualified weight
-
Live display of individual amplitude
-
Live display of individual weight readings
-
Central loadcell infeed confrolling
-
Forced combination for frozen products
