Korean Doosan Engnine Powered Series Doosan 400 kva generator

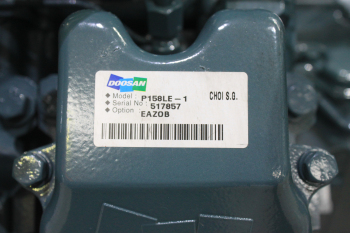

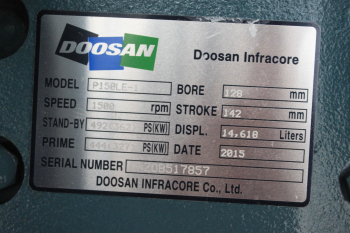

Engine Model: P158LE
Rating
|
Gross Engine Output
|
|
Net Engine Output
|
|
|
1500rpm(50hz)
|
Standby
|
Prime Power
|
Standby
|
Prime
|
|
1800rpm(60hz)
|
414/563
|
363/494
|
398/541
|
347/472
|
|
458/623
|
402/547
|
434/590
|
378/514
|
GENERAL ENGINE P158LE DATA 400KVA Genset
Engine Type 4-Cycle, V-type, 8-Cylinder, Turbo charged & intercooled (air to air)
Bore x stroke 128 x 142 mm
Displacement 14.618 liters
Compression ratio 15 : 1
Rotation Counter clockwise viewed from Flywheel
Firing order 1-5-7-2-6-3-4-8
Injection timing 16˚±1˚ BTDC
Dry weight 950 kg (with fan)

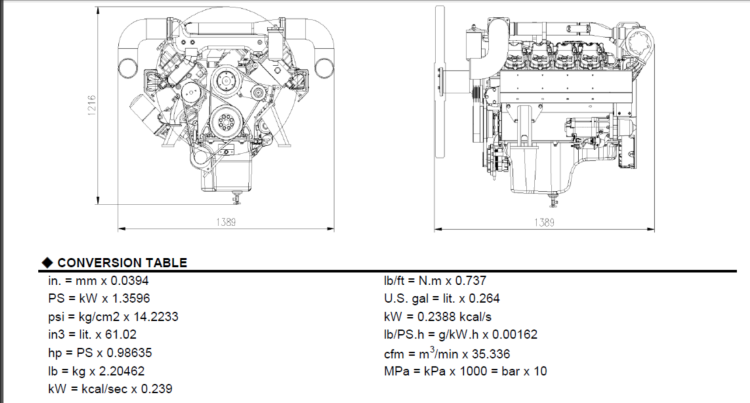

Dimension (LxWxH) 1,389 x 1,389 x 1,216 mm
Fly wheel housing SAE NO.1M
Fly wheel Clutch NO.14M
Number of teeth on flywheel 160
|
PERFORMANCE DATA
|
|
|
|
|
|
|
|
|
Prime Power
|
|
Standby
Power
|
|
|
Governed Engine speed
|
rpm
|
1500
|
1800
|
1500
|
1800
|
|
Engine Idle Speed
|
rpm
|
800
|
800
|
800
|
800
|
|
Over speed limit
|
rpm
|
1650
|
1980
|
1650
|
1980
|
|
Gross Engine Power Output
|
kW
|
363
|
402
|
414
|
458
|
|
|
PS
|
494
|
547
|
563
|
623
|
|
Break Mean effective pressure
|
MPa
|
1.99
|
1.84
|
2.27
|
2.09
|
|
|
|
|
|
|
|
|
Mean Piston Speed
|
m/s
|
7.1
|
8.5
|
7.1
|
8.5
|
|
Friction Power
|
kW
|
32
|
44
|
32
|
44
|
|
|
ps
|
43.5
|
59.8
|
43.5
|
59.8
|
|
Specific low fuel consumption diesel engine generators
|
|
|
|
|
|
|
25% load
|
liters/hr
|
23.7
|
28
|
26.5
|
30.5
|
|
50% load
|
liters/hr
|
43.9
|
50.6
|
49.6
|
57.6
|
|
75% load
|
liters/hr
|
65.1
|
74.7
|
74.8
|
85.9
|
|
100% load
|
liters/hr
|
89.3
|
102.5
|
102.9
|
118.6
|
|
Fan Power
|
kW
|
16
|
24
|
16
|
24
|
|
Sound Pressure at 1m from the each side of Cylinder Block
|
|
|
|
|
|
|
(without Fan)
|
db(A)
|
98.3
|
98.5
|
98.3
|
98.5
|
|
98.3 98.5 98.3 98.5
|
|
|
|
|
|
|
Engine Data with Dry Type Exhaust Manifold
|
|
|
|
|
|
|
Intake Air Flow
|
m3/min
|
26.2
|
33.7
|
29.1
|
36.9
|
|
Exhaust gas temp. after turbo.
|
°C
|
503
|
465
|
520
|
505
|
|
Exhaust Gas Flow
|
m3/min
|
70.5
|
85.6
|
80.1
|
99.3
|
|
Heat Rejection to Exhaust
|
kw
|
314.7
|
362.2
|
362.6
|
417.9
|
|
Heat Rejection to Coolant
|
KW
|
136.8
|
157
|
157.7
|
181.7
|
|
Heat Rejetion to Intercooler
|
kW
|
73
|
83.8
|
84.1
|
96.9
|
|
Radiated Heat to Ambient
|
KW
|
31.9
|
36.6
|
36.8
|
42.4
|
|
Cooling water circulation
|
liters/min
|
535
|
600
|
535
|
600
|
|
Cooling fan air flow
|
m3/min
|
522
|
618
|
522
|
618
|

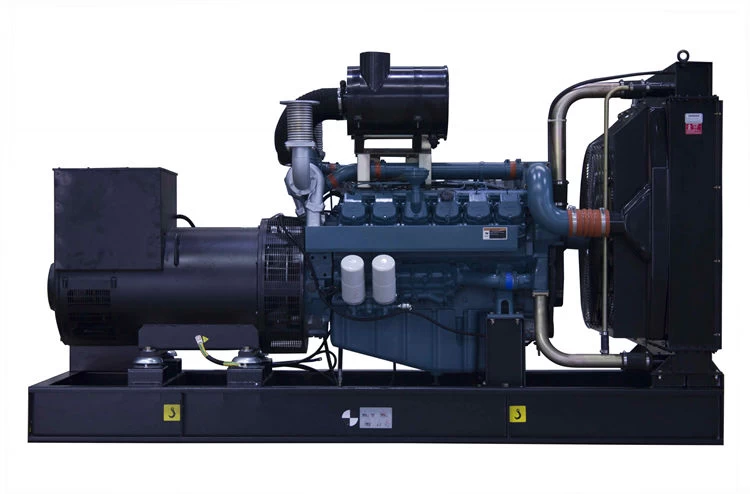

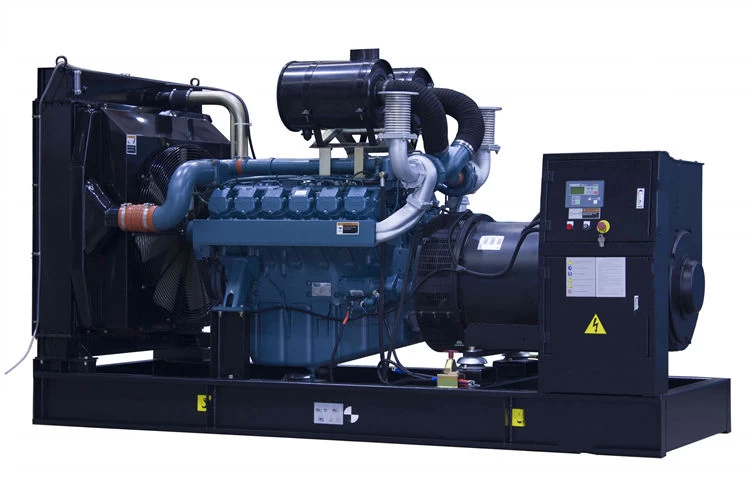

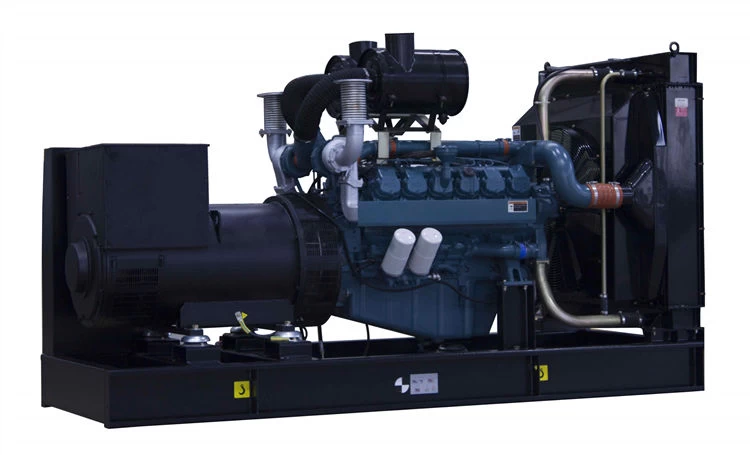

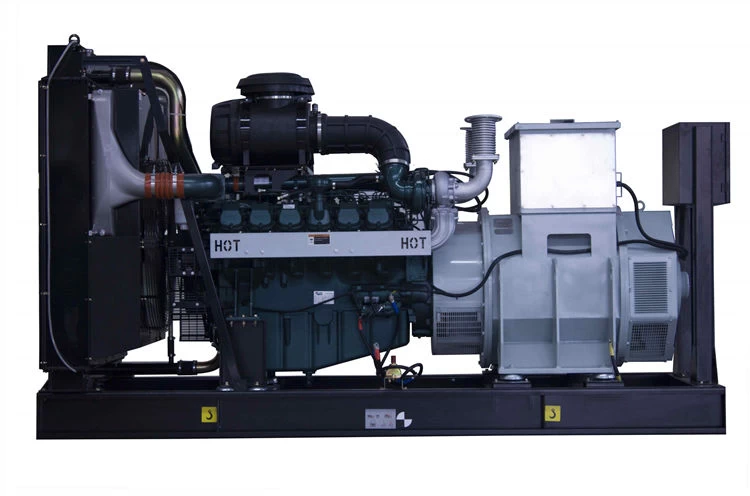

Doosan Genset Photo

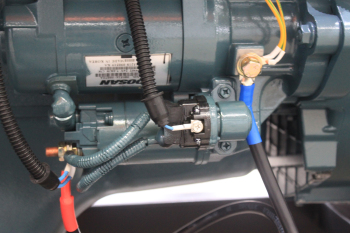

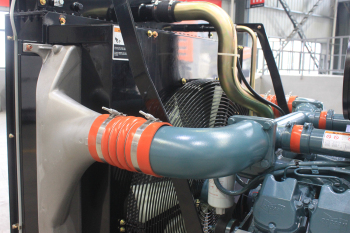

Doosan 400kva generator in detail
|
Genset 400KVA Model
|
BD440
|
|
Prime Power
|
320KW / 400KVA
|
|
Standby Power
|
352KW /440KVA
|
|
Frequency/Speed
|
50Hz/1500rpm
|
|
Phases
|
Three phases, four wires
|
|
Manufacturer
|
Xiamen BIAO Power Technology Co.,ltd.
|

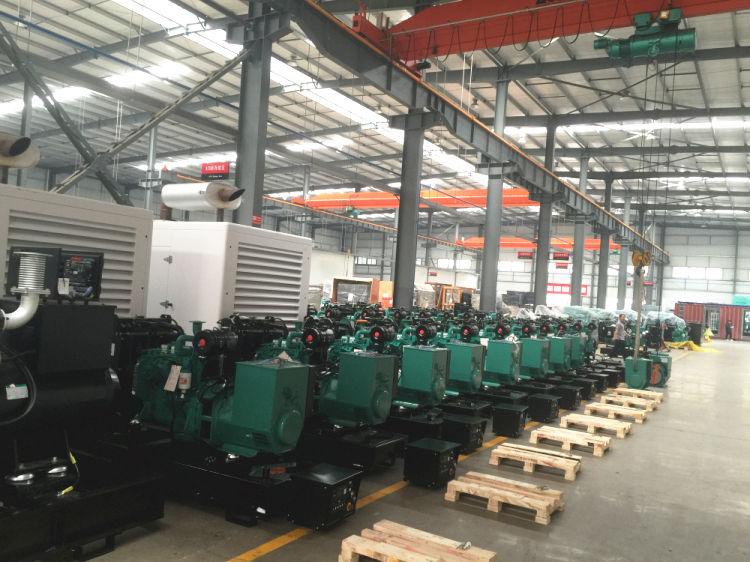

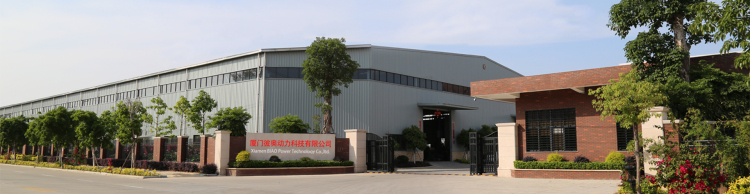

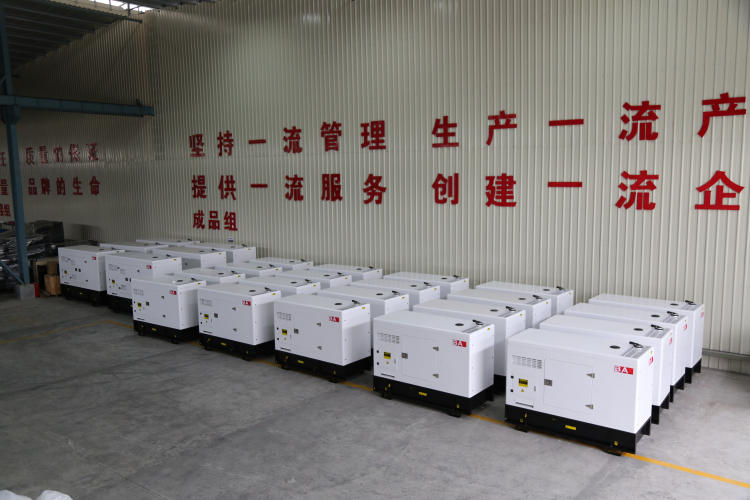

Our Company Show
Our Certification
CE Certification, ISO 9001: 14000

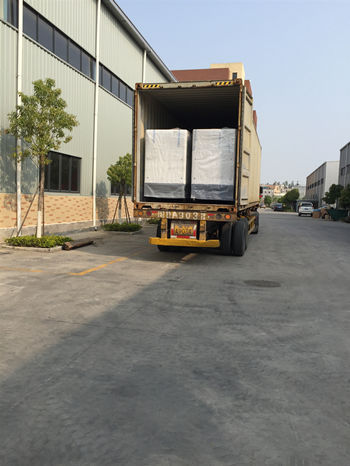

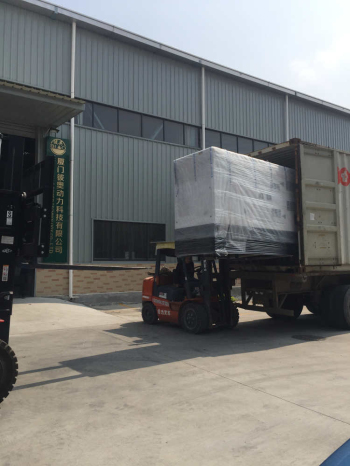

Packing and Delivery
