BAKELITE METAL BOND GRINDING DISC FOR GRANITE

DESCRIPTION:

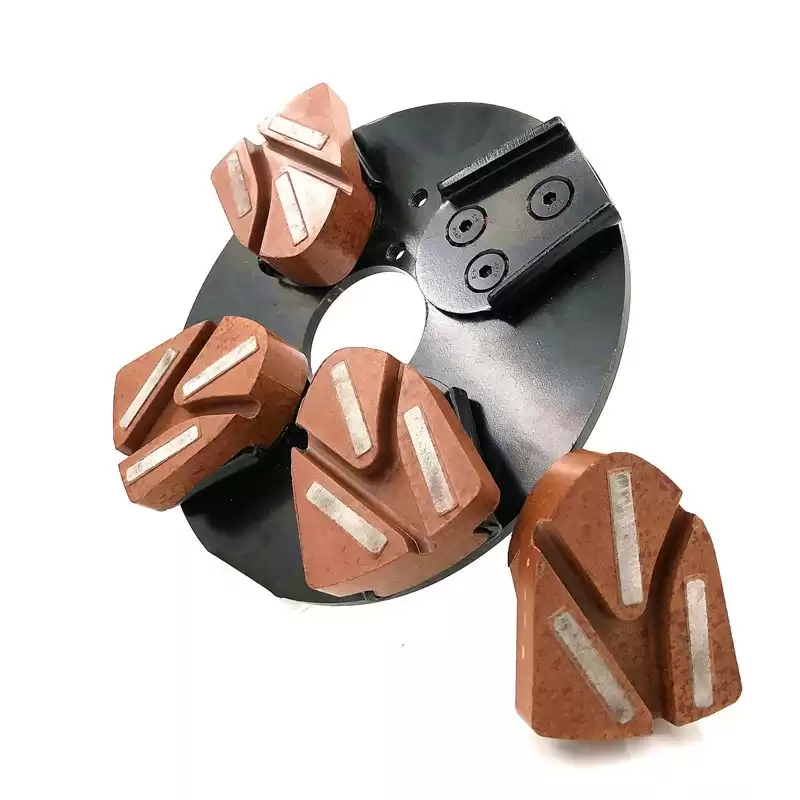

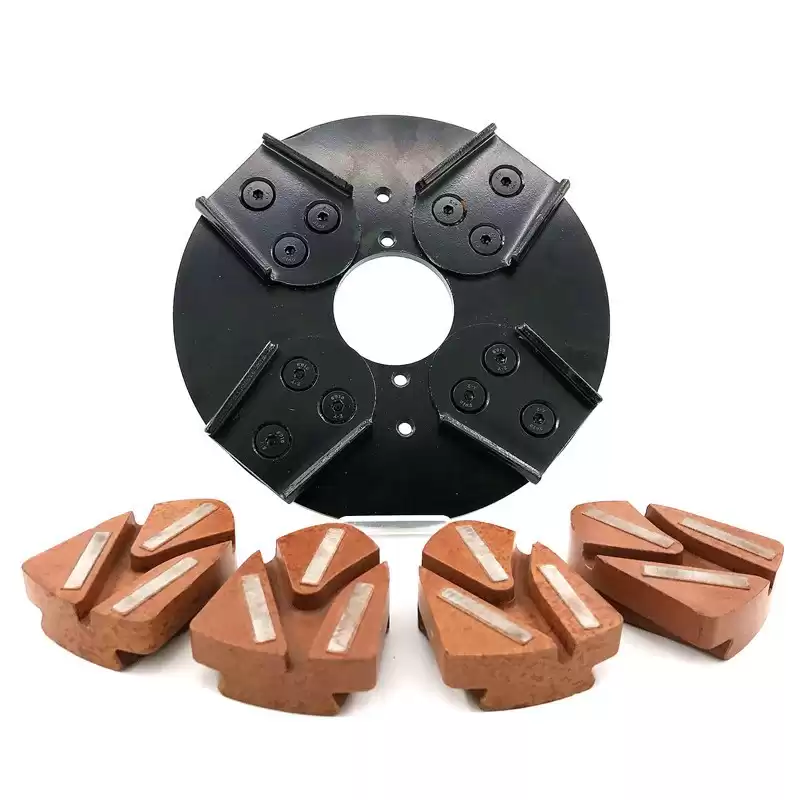

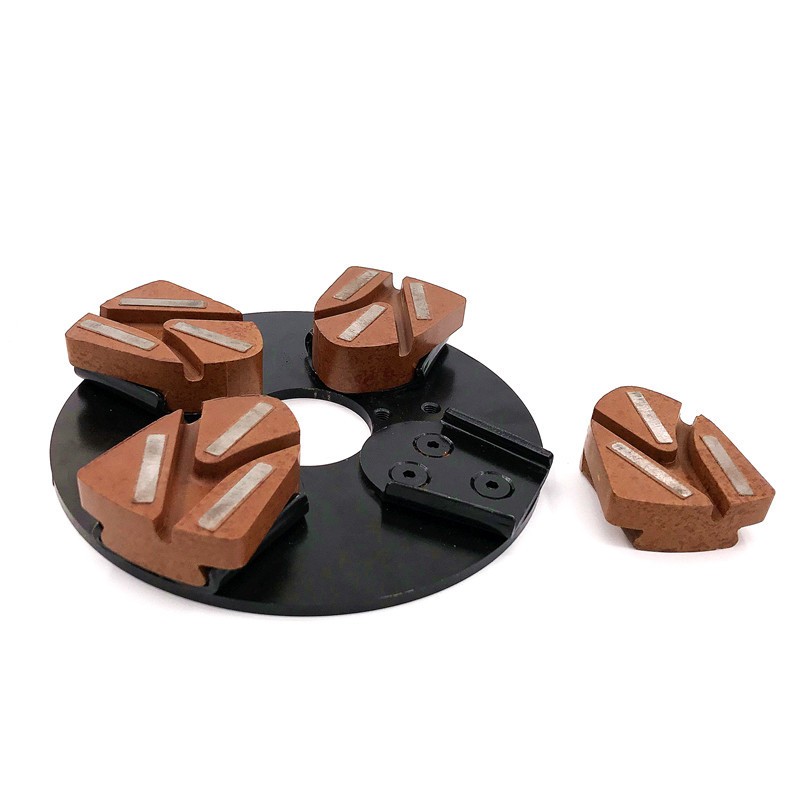

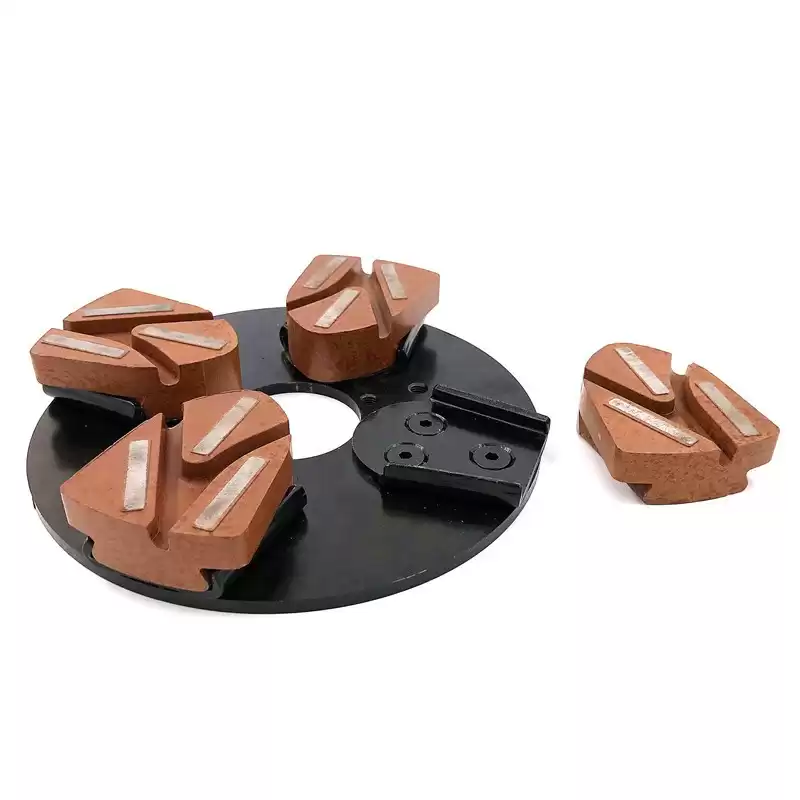

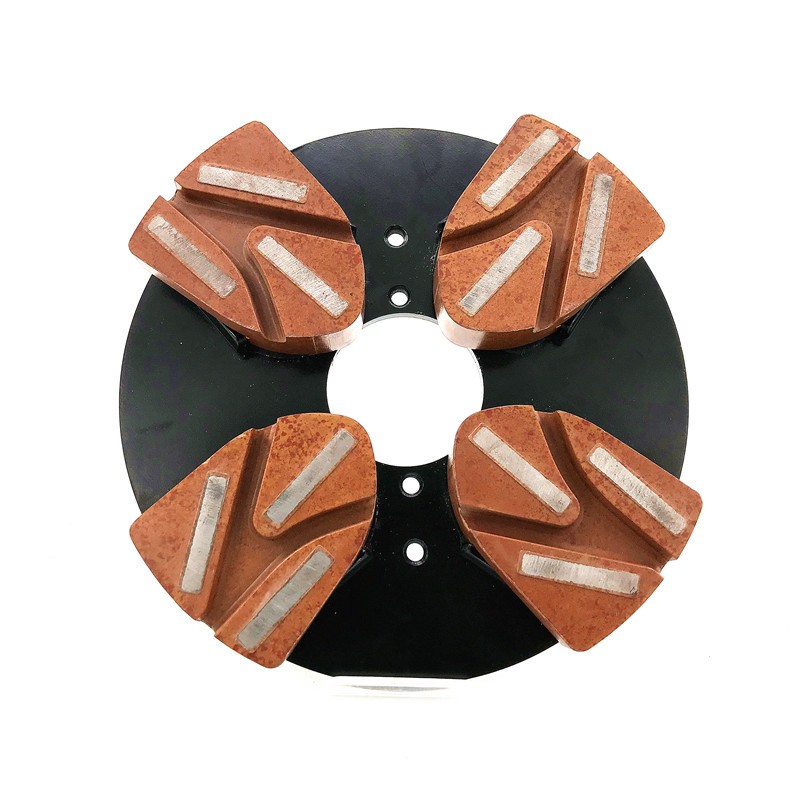

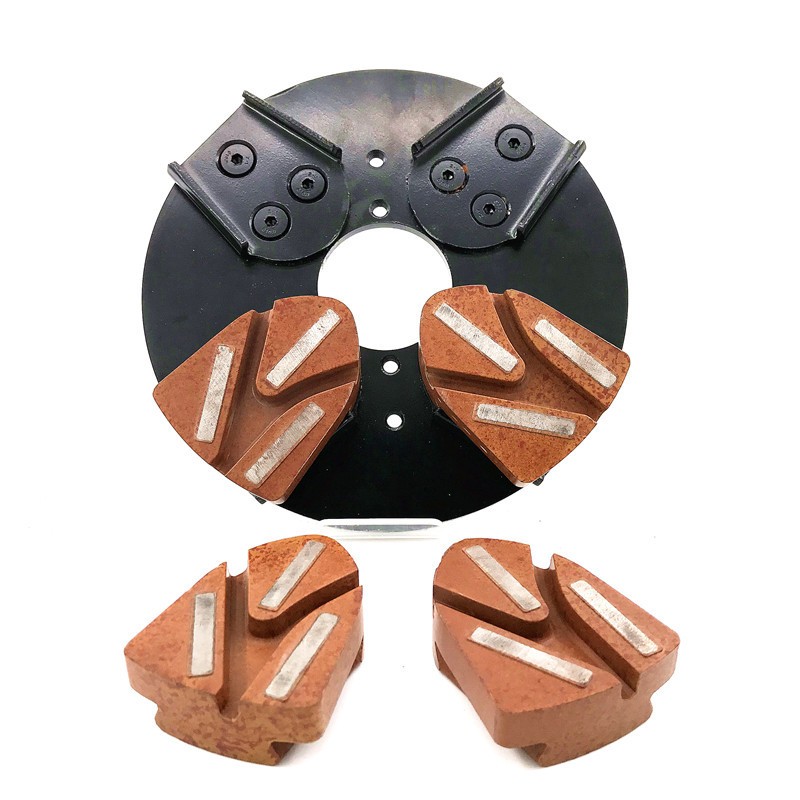

JINSHAN bakelite metal bond grinding disc can be used in the replace of traditional grinding disc. It is designed with one connector and 4 segment blocks, and the diamond segments are covered by bakelite which makes it not easily broken when grinding. The grits of this grinding disc can be made up to 800#. Compared with traditional resin 500# and 800#, this bakelite disc is more efficient and has a longer life.

SPECIFICATIONS:

Product structure: one connector + four segment blocks

Diameter of connector: 10 inches (230mm)

Dimension of segments: L40*W7*H11/9mm

Grits Available: 50# 100# 200# 400# 500# 800#

Application: To be used for coarse grinding of granite slabs on automatic polishing lines.

PACKING DETAILS:

1.10pcs connector in one carton

2.60pcs segment blocks in one carton

3.Carton size: 30x26x26mm

FEATURES:

1.Connectors are required to be purchased once only. After segments are finished, simply remove the segment blocks and insert new ones without changing the connector. It saves time and transportation cost.

2.Grits are available up to 800#. Compared with traditional resin 500# and 800#, this bakelite plate is more efficient and has a longer life.

3.Different formulas of segment will be offered according to the hardness of granite slabs.

4.Unique technology and patented product owned by JINSHAN. All Rights Reserved.
