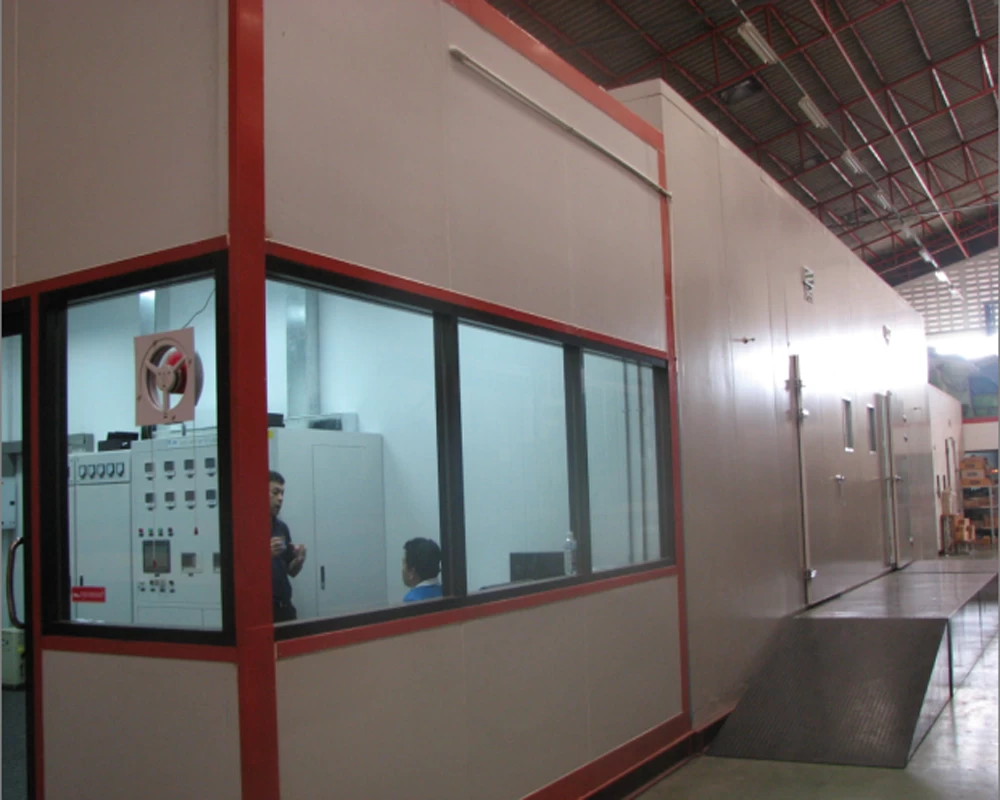

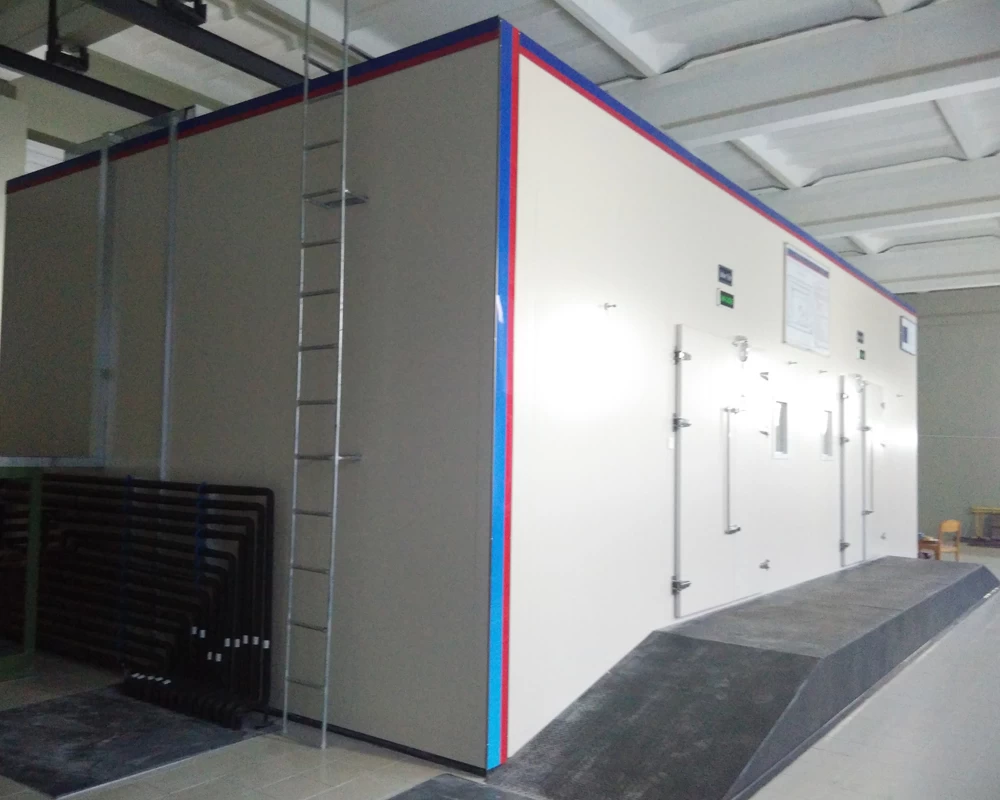

Balanced Ambient Room-Type Calorimeter Laboratory

This equipment is used for measuring the calories of Air-con. It also measures various kinds of data including pressure and electric properties of the Air-con.

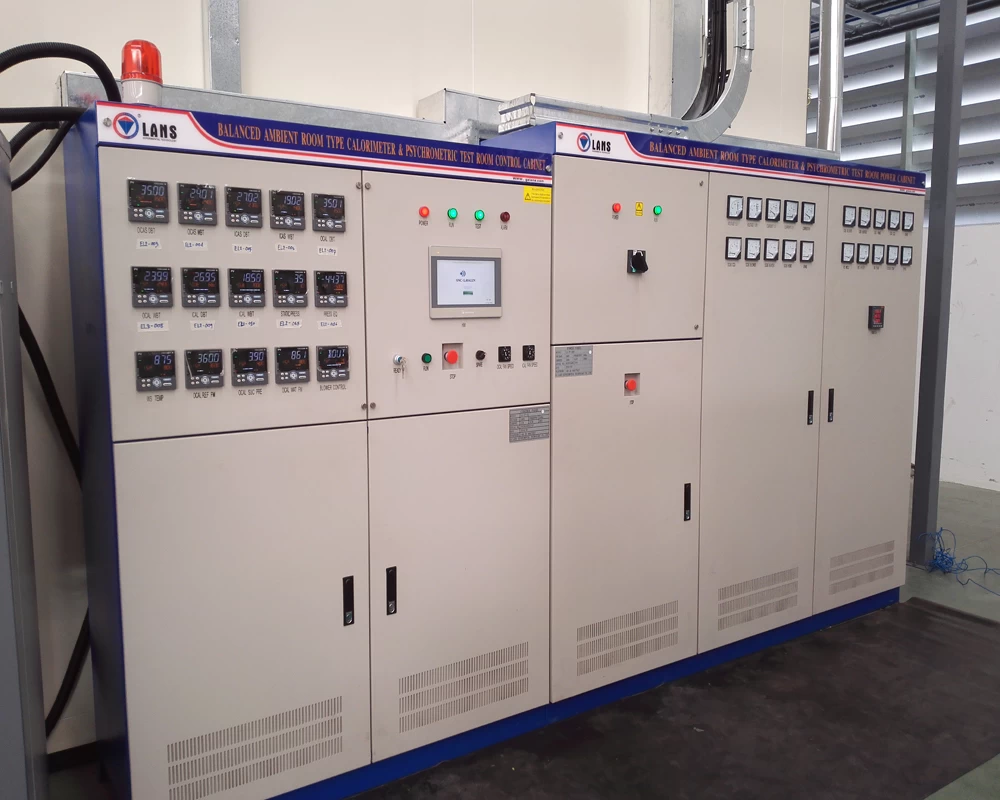

And it consists of compartments (2 chambers), control temperature Air spaces (2 rooms), air handling units, chillers, power panel, computer system and so on.



1.Test method

Room type Calorimeter Method: Using the room as a calorimeter, to calculate out the capacity of the UUT by measuring the energy needed at rated

working condition.The method can be performed both in inside and outside rooms of the calorimeter at the same time. The test result of the inside test

is considered as standard rating, and the outside test can be regards as the proof experiment.

2.Standard and Regulation

ISO 5151-2000 Non-ducted air conditioners and heat pumps -- Testing and rating for performance

IS 1391.1-1992 Room air conditioner-specification,Part1:Unitary Air Conditioners,Part2:Split Air Conditioners

3.Software

The software is intended to meet the requirements of auto-controlling, superior, measurement and analysis on room type Calorimeter test equipment.

The software uses PC as process server, control devices and meters to work, reads the sampling value, and then implements the tasks of calculating,

processing, analysis, displaying, storage and printing.It introduces the concept of visual instrument into Air-con. testing, helps operators to control the

devices and views the testing result via friendly interface.
