Balkonkraftwerk Solar Balcony Wall Mount Bracket Solar Panel Mounting System for Home

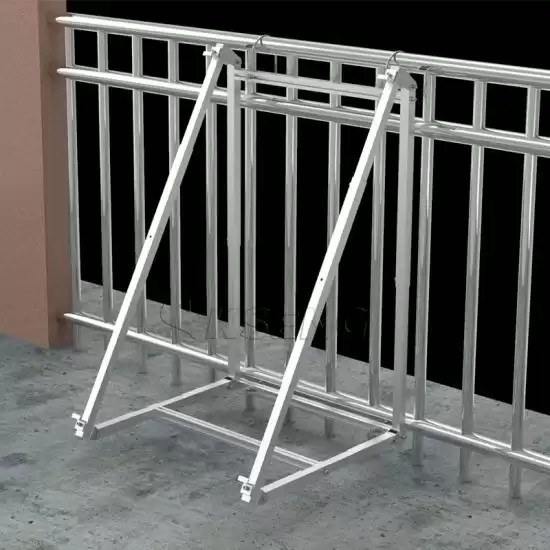

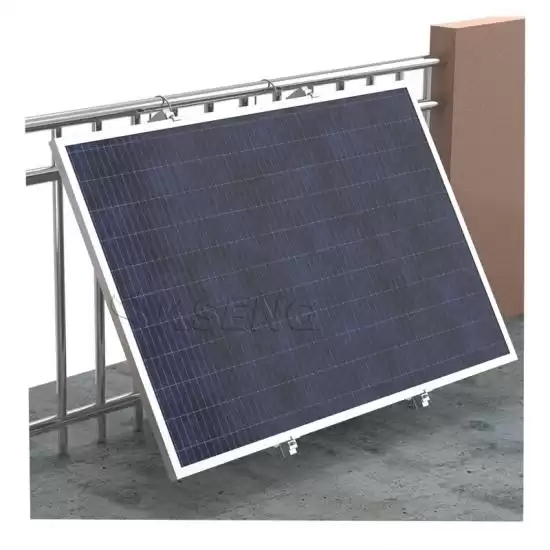

The angle ‒adjustable bracket, developed for achieving good combination with solarkit, which can be installed at flat ground or roof, raillings, balcony and garden. It’s much flexible with adjustable tilt range between 15°~50°to get more energy.

  • Delivery5-7 days
  • Applicationgarden, balcony, railing, walls and etc.
  • CertificationISO9001/CE
  • Service Life20 years
  • Warranty10 years
  • MaterialAL6005-T5, SUS304,EPDM
Facebook Twitter Pinterest LinkedIn 分享

The angle ‒adjustable bracket, developed for achieving good combination with solarkit, which can be installed at flat ground or roof, raillings, balcony and garden. It’s much flexible with adjustable tilt range between 15°~50°to get more energy.

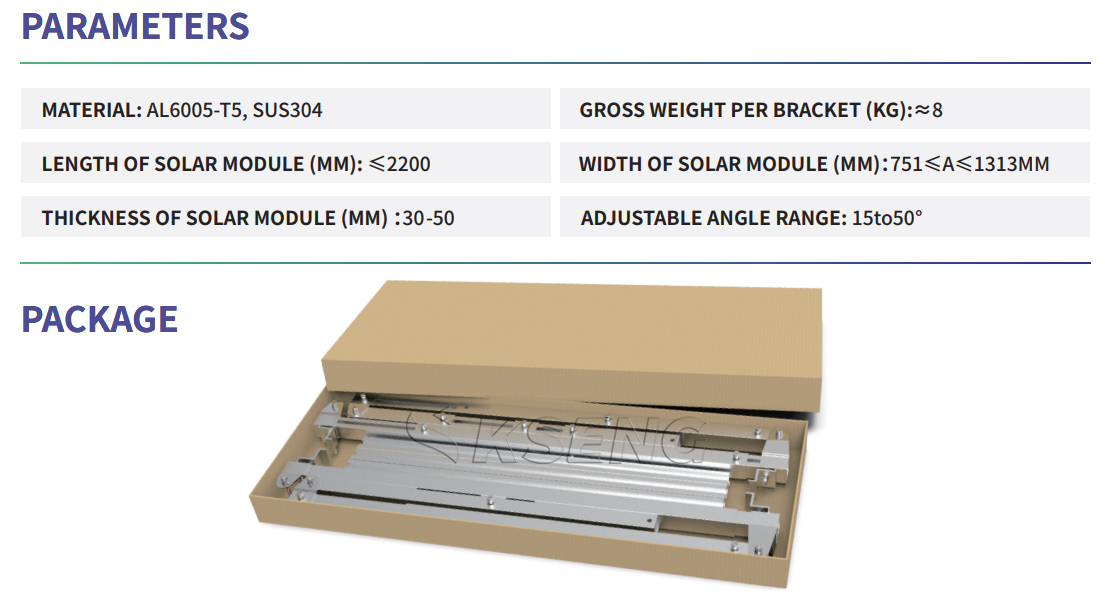

Product Name
Easy Solar Kit Universal Solar Panel Mounting Brackets Ground Railing Wall Installation for Solar Mounting System
Material
AL6005-T5, SUS304，EPDM
Standard
AS/NZS 1170
Gross weight per bracket(KG)
8
Length of solar module(MM)
≤2200
Width of solar module(MM)
751≤A≤1313MM
Thickness of solar module(MM)
30-50
Adjustable angle range
15~50°
Certificate
ISO9001 , CE,  etc
Application
garden, balcony, railing, walls and etc.
Warranty
10 Years Warranty, Over 20 Years Service Life

FEATURES:

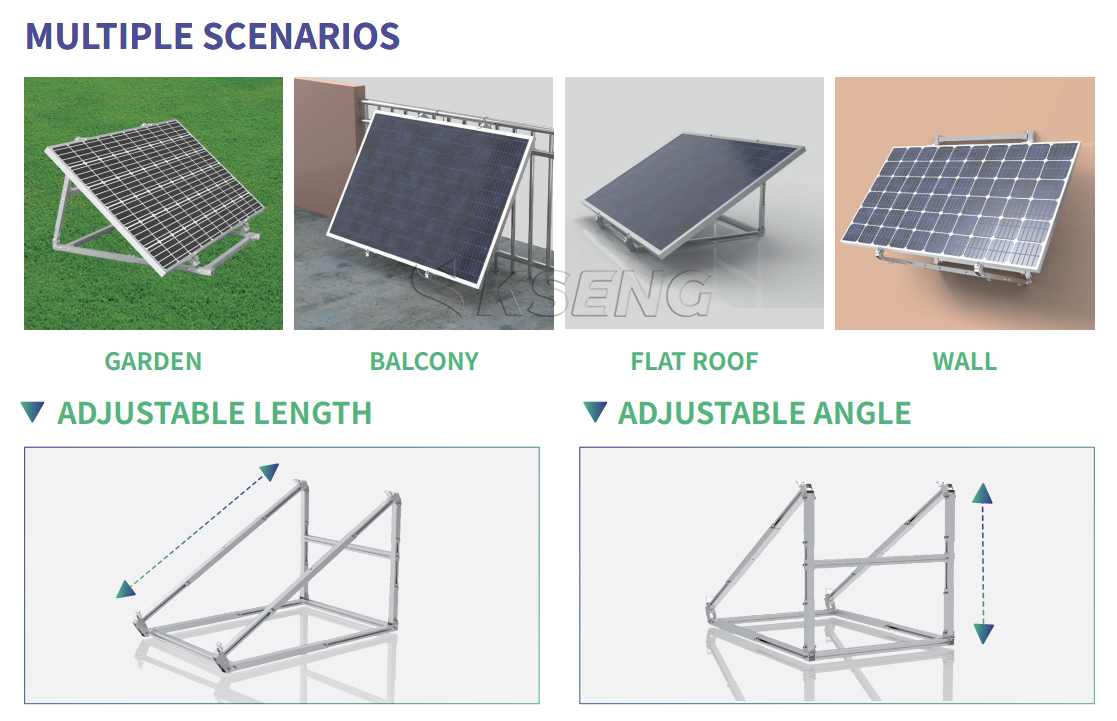

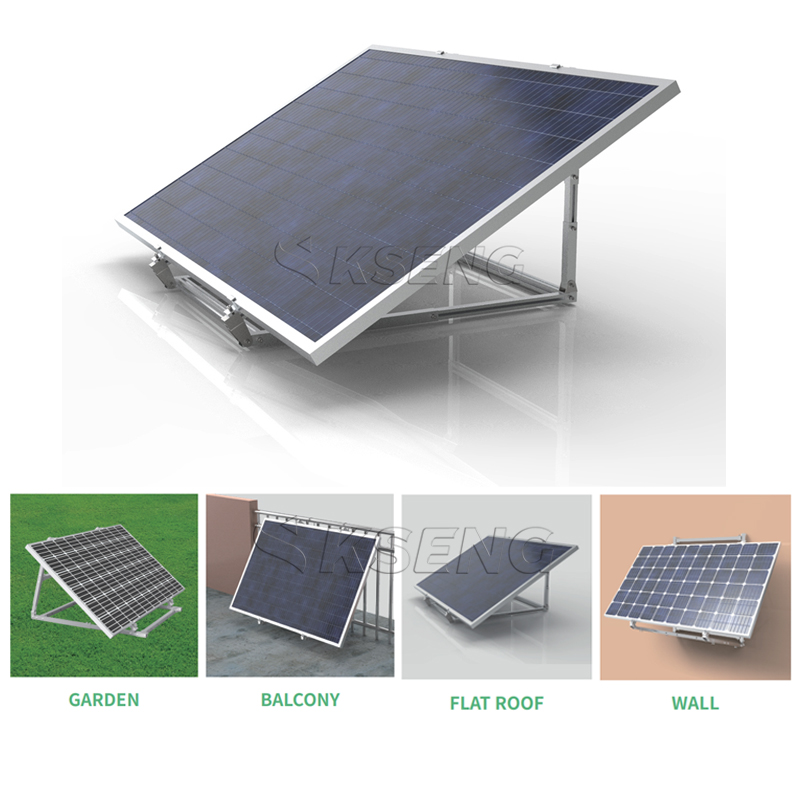

*Adapt to multiple scenarios: garden, balcony, railing, walls and etc.

*Modular design with plug and play connection, quick and easy installation
*Adjustable angle manually to adjust the PV module angle for more energy generation.
