Bearing No.
|

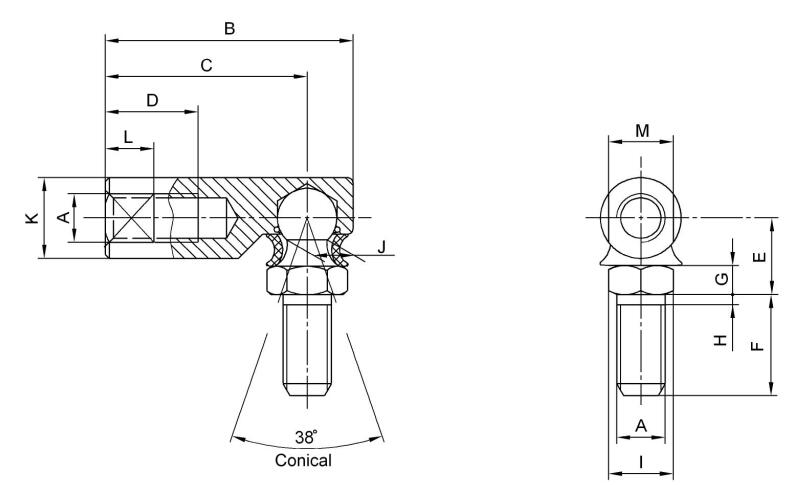

Dimensions(inch/mm)
|
tensile
shear
stength (Pounds)
|
force
to
remove
ball stud
(Pounds)
|
|
A
UNF
|
B
|
c
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
M
|
L
|
|
R103G
|
10-32
|
1-1/16
|
7/8
|
7/16
|
7/16
|
7/16
|
1/8
|
1/16
|
5/16
|
0.172
|
3/8
|
8
|
6
|
295
|
690
|
|
R103G
|
10-32
|
26.98
|
22.2
|
11.1
|
11.1
|
11.1
|
3.175
|
1.6
|
7.94
|
4.37
|
9.52
|
8
|
6
|
295
|
690
|
|
R107G
|
1/4-28
|
1-7/32
|
31/32
|
1/2
|
15/32
|
9/16
|
1/8
|
3/32
|
3/8
|
0.193
|
7/16
|
8
|
6
|
882
|
1005
|
|
R107G
|
1/4-28
|
30.95
|
24.6
|
12.7
|
11.9
|
14.28
|
3.175
|
2.38
|
9.5
|
4.9
|
11.1
|
8
|
6
|
882
|
1005
|
|
R108G
|
5/16-24
|
1-13/32
|
1-1/8
|
9/16
|
17/32
|
11/16
|
5/32
|
3/32
|
7/16
|
0.232
|
1/2
|
10
|
7
|
1587
|
1282
|
|
R108G
|
5/16-24
|
35.71
|
28.58
|
14.28
|
13.5
|
17.46
|
4
|
2.38
|
11.1
|
5.8
|
12.7
|
10
|
7
|
1587
|
1282
|
|
R109G
|
3/8-24
|
1/11/16
|
1-3/8
|
3/4
|
11/16
|
7/8
|
3/16
|
3/32
|
1/2
|
0.287
|
5/8
|
13
|
8
|
2437
|
1900
|
|
R109G
|
3/8-24
|
42.86
|
34.9
|
19.05
|
17.46
|
22.2
|
4.76
|
2.38
|
12.7
|
7.29
|
15.88
|
13
|
8
|
2437
|
1900
|
|
I3-316
|
3/8-24
|
1/11/16
|
1-3/8
|
3/4
|
11/16
|
5/8
|
3/16
|
3/32
|
1/2
|
0.287
|
5/8
|
13
|
8
|
2437
|
1900
|
|
I3-316
|
3/8-24
|
42.86
|
34.9
|
19.05
|
17.46
|
15.88
|
4.76
|
2.38
|
12.7
|
7.29
|
15.88
|
13
|
8
|
2437
|
1900
|
|
R110G
|
7/16-20
|
2-3/8
|
1-15/16
|
1-1/8
|
7/8
|
1-1/8
|
1/4
|
1/8
|
5/8
|
0.412
|
3/4
|
16
|
10
|
3390
|
2700
|
|
R110G
|
7/16-20
|
60.32
|
49.2
|
28.58
|
22.22
|
28.58
|
6.35
|
3.17
|
15.88
|
10.46
|
19.05
|
16
|
10
|
3390
|
2700
|
|
R111G
|
1/2-20
|
2-3/8
|
1-15/16
|
1-1/8
|
7/8
|
1-1/8
|
1/4
|
1/8
|
5/8
|
0.412
|
3/4
|
16
|
10
|
3390
|
2700
|
|
R111G
|
1/2-20
|
60.32
|
49.2
|
28.58
|
22.22
|
28.58
|
6.35
|
3.17
|
15.88
|
10.46
|
19.05
|
16
|
10
|
3390
|
2700
|
Ball stud: Low carbon steel heat treated, Zinc plated yellow dichromate treated.
Body: Low carbon steel, Zinc plated yellow dichromate treated.
NOTE:
This series is also available in male to male and female to female configuration.
Consult factory.
