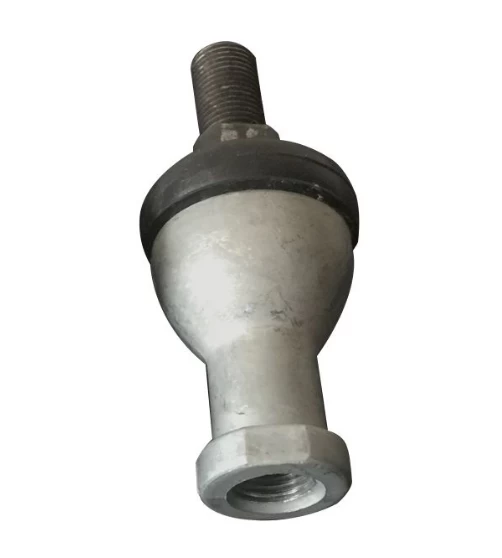

Ball Joints SQZ..RS



Ball: AISI 52100 bearing Steel

Body: Zinc alloy

stud: Carbon steel, Black oxided

Sliding contact surfaces: Steel/Zinc base alloy





Ball Joints SQZ12-RS

Bearing No. Dimensions(mm)
Static
Load
KN
ratings
a°
mis.
angle
weight
kg

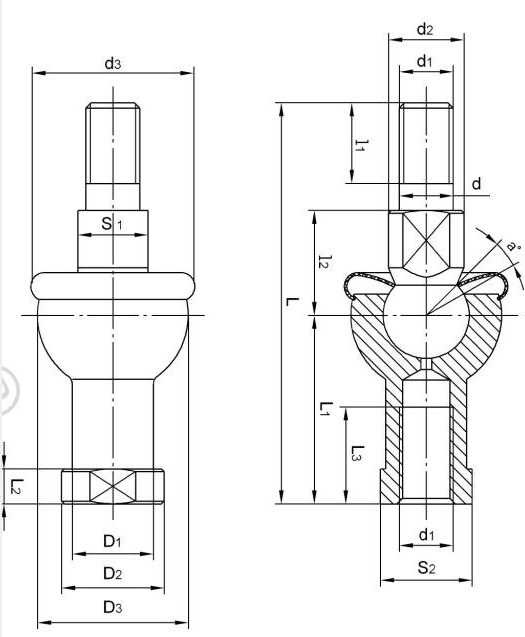

d d3-6g d2 d3 l1 l2 S1 L L1 L2 L3 D1 D2 D3 S2
SQZ5-RS 5 M5 9 19 8 11 7 46 24 4 12 9 11 17 9 2.8 15 0.025
SQZ6-RS 6 M6 10 20 11 12.2 8 55.2 28 5 15 10 13 20 11 3.7 15 0.041
SQZ8-RS 8 M8 12 24 12 16 10 65 32 5 16 12.5 16 24 14 5.8 15 0.075
SQZ10-RS 10 M10X1.25 14 30 15 19.5 11 74.5 35 6.5 18 15 19 28 17 8.4 15 0.12
SQZ12-RS 12 M12X1.25 17 32 17 21 15 84 40 6.5 20 17.5 22 32 19 11 15 0.18
SQZ14-RS 14 M14X1.5 19 38 22 23.5 17 103 45 8 25 20 25 36 22 15 11 0.27
SQZ16-RS 16 M16x1.5 22 44 23 25.5 19 112 50 8 27 22 27 40 22 15 11 0.36
SQZ18-RS 18 M18X1.5 23 45 25 31 20 130.5 58 10 32 25 31 45 27 19 11 0.54
SQZ20-RS 20 M20x1.5 27 50 25 29 24 133 63 10 38 27.5 34 45 30 19 7.5 0.57
SQZ22-RS 22 M22x1.5 27 52 26 33 24 145 70 12 43 30 37 50 32 23 7.5 0.76


The shank of ball joint housing may be left-hand thread,

for left-hand thread, suffix" L" is added to bearing number and thread sign. e.g.:SQZL5-RS M5L-6H
