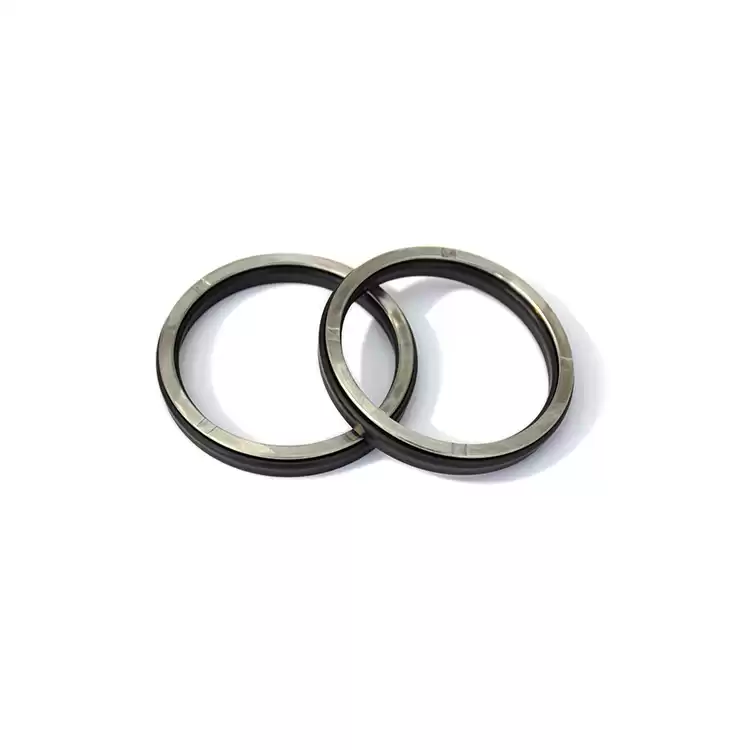

Ball valve high pressure lip seals
Spring energized seal:
The BVR series is made of a canted level spring and a polymer jacket, which is mainly used as a stem seal.
The polymer jacket's material includes virgin PTFE,TFM, PCTFE, SS316, PEEK, etc.
The helical wound spring's material includes Stainless Steel, Elgiloy,Hast Alloy,etc.
When the pressure is more than 900LBS, an anti-extrusion ring is required;
This multifunctional design combines two seals and a guide bearing into an integral component. Bi directional seals are suitable for medium temperature / pressure applications requiring simple assembly and quick replacement. When designed without an inner diameter, it also acts as a floating piston.
|
Advantages:
1. Material compound passed API 6A FF/HH Immersion Testing;
2. High load helical wound spring with small deflection range;
3. NACE approved energizers available for oil and gas use.
|
Working Conditions
|
Temperature range
|
Pressure
|
Medium
|
-50~200℃
|
150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
|
LNG, Low temperature ethylene
|
|
API 6D Stem Seal selection table
|
|

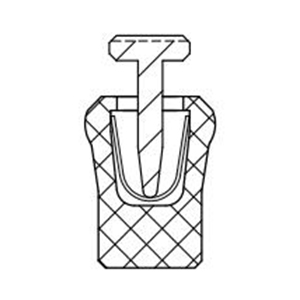

Groove DWG:
|
|
Temperature Rating
|
JST Series
|
Spring
|
0~900（LBS)
|
900~2500(LBS)
|
G=(OD-ID)/2
Standard CS:G=(OD-ID)/2
|
L Value
|
|
(-100℃~180℃)
|
BVR
|
Golden Elgiloy
|
|
|
3.1
|
7
|
|
4.55
|
9
|
|
6.1
|
13
|
