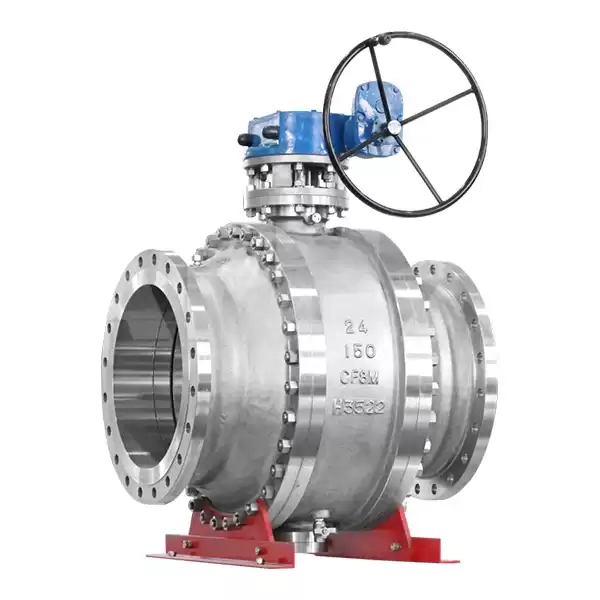

Ball Valve Trunnion FB 24Inch 150LB CF8M

API6D Full Bore Trunnion Ball Valve

24Inch,150LB,CF8M,F304+DEVLON,Gear Box

Manufacture STAVAL Factory Offers.


  • Working Temp.-196°C to +600°C
  • End ConnectionBW, Flange
  • SeatSoft Seat, Metal Seat, PMSS Seat
  • ConstructionBB/Full Weld, Side/Top Entry, 1/2/3Pcs
  • BoreFull Bore, Reduce Bore
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem, Double Block Double Bleed, Double Position, Drian And Vent

Key Specification

Type

Ball Valve

Size

24Inch

Pressure

150LB

Construction

3pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet,

Connection

RF End

Body/Bonnet Material

A351 CF8M

Ball Material

A182 F304

Stem Material

XM-19

Seat Material

A182 F304+DEVLON

Bolt/Nut

B8M/8M

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Fire Safe Design

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+538

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
