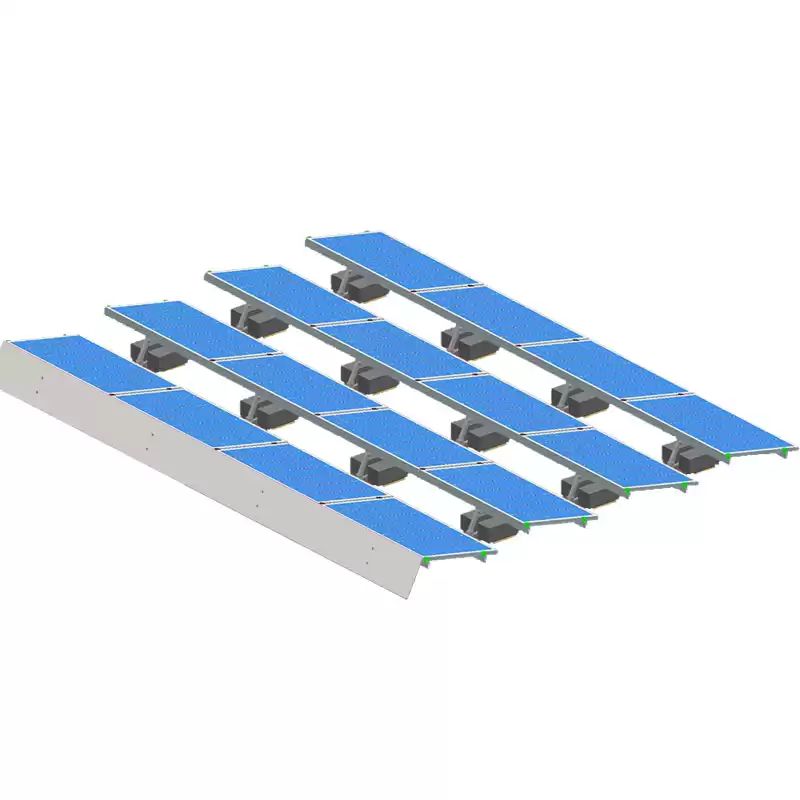

Ballasted Flat Roof Mounting System

The LARGE Ballasted Roof System is engineered for the maximum flexibility possible in designing and planning for the flat roof solar system. It is applicable to install the usual framed module, The ballasted mounting system can be fixed for any angle .The special extruded aluminum rail, special D module nut, clamp kit ,foot base,support tube/ back leg can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical Parameters :

Installation Site:                   Concrete Flat Roof and Open Ground

Installation Angle:                Customized.

Wind Load:                            Upto 60m/s

Snow Load:                           Upto 1.5KN/m²

Applicable Module:               Framed or Frameless

Module Orientation:              Landscape and Portrait

Module Dimension:               Applicable to any dimension

Standard Compliance:          AS/NZS1170.2 ; SGS and other international standards

Material:                                 Aluminum Alloy 6005-T5, Stainless Steel 304

Color:                                     Natural or customized.

Warranty:                              12 years of quality warranty and 20 years service life

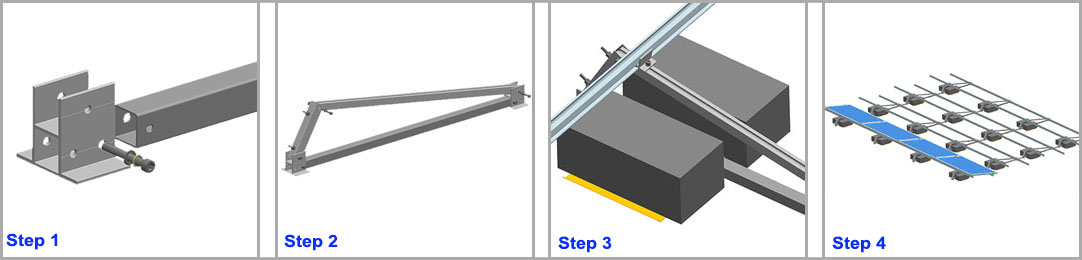

Installation Guide :

Step 1:  As per the installation layout to fix the front foot base and connect tube with M8*60mm bolt.

Step 2:  Install the back leg and support tube into the foot base with M8*60mm bolt and nut.

Step 3:  Install the 2# roof rail onto the support tube with rail clamp and D module nut.

Step 4:  Put the solar panels on the roof rails ,and fix the panel with Mid clamps,End clamps and D module nut.

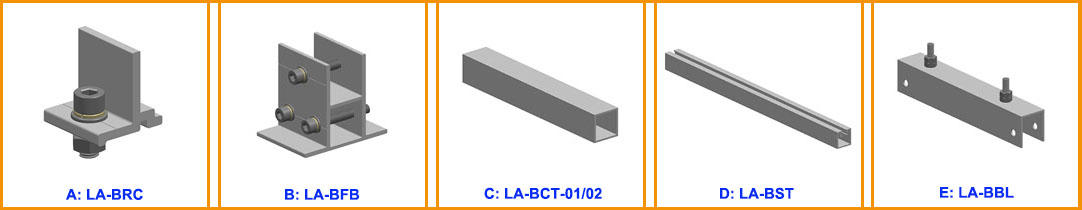

Components List :
