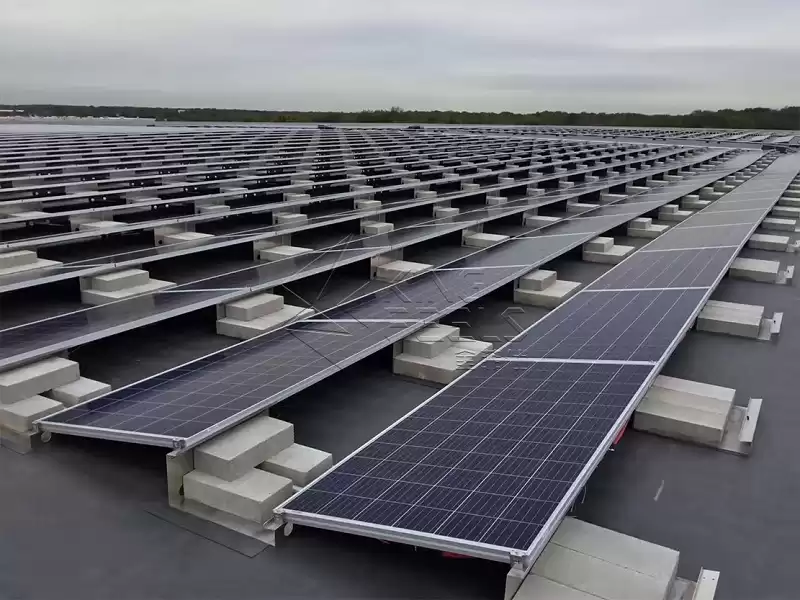

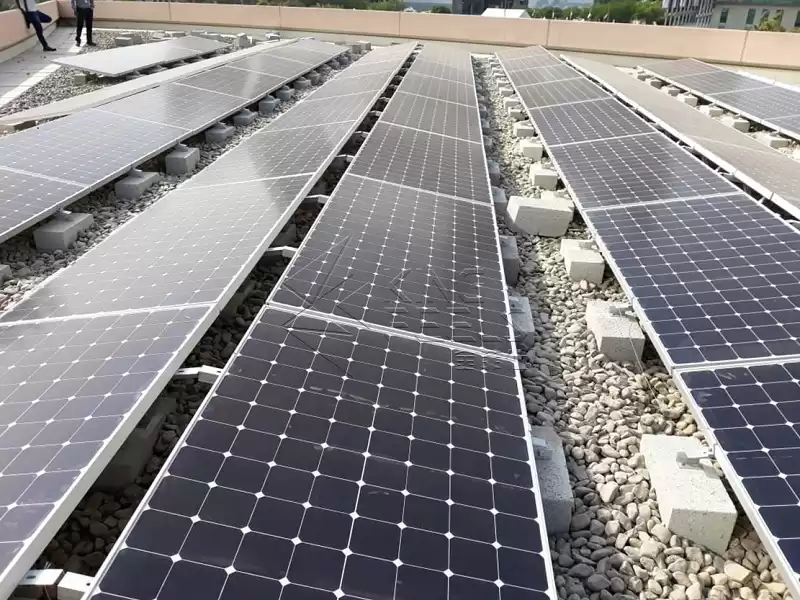

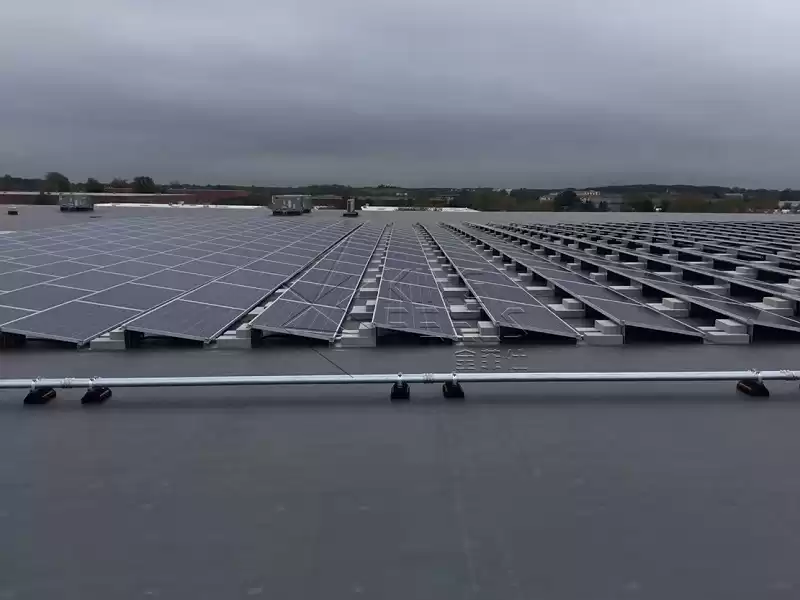

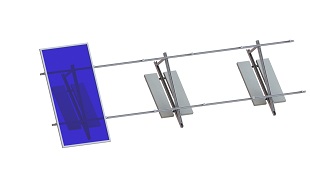

Ballasted Tilt Solar Panel Roof Mounting System
The ballasted solar racking systems can be pre-designed a fixed angle for your request and the support is high Pre-assembled, especially, this system highlights the function that fixed directly on the concrete block. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high pre-assembly and make the installation easy and quick to save yourlabor cost and time.
Technical Data
| Install Site |
Ballasted Tilt Solution |
| Max Wind Speed |
≤60m/s |
| Snow Load |
≤1.4KN/M2 |
| Tilt Angle |
Adjustable |
| Applicable Module |
Framed or frameless |
| Module Orientation |
Landscape, portrait |
| Standards |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material |
AL6005-T5, SUS304 |
| Anti-corrosive |
Anodized |
| Color |
Silver |
| Warranty |
12 years |
Key Features
- Ballasted Solar PV Mounting Structures highly engineered solution which can effectively reduce the influence of wind on the photovoltaic system
- Ballasted solar mounting systems can secure the array without damaging the flat roof .Solar Ballast System is compatible with the usual framed modules and typically does not require roof penetrations.
- Flat Roof Ballast Solar Panel Mounting Structure designed according to the actual installation angle and no need to break the waterproof layer.

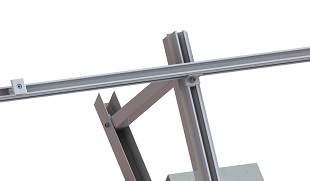

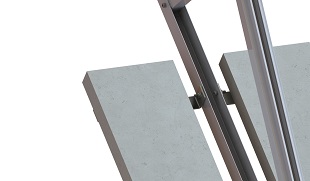

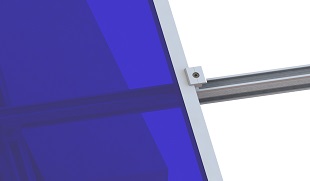

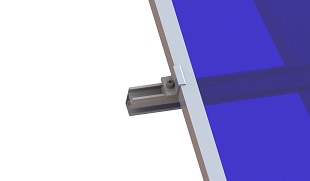

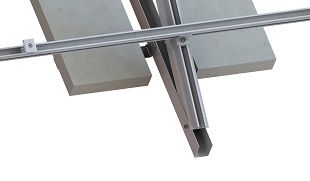

Details

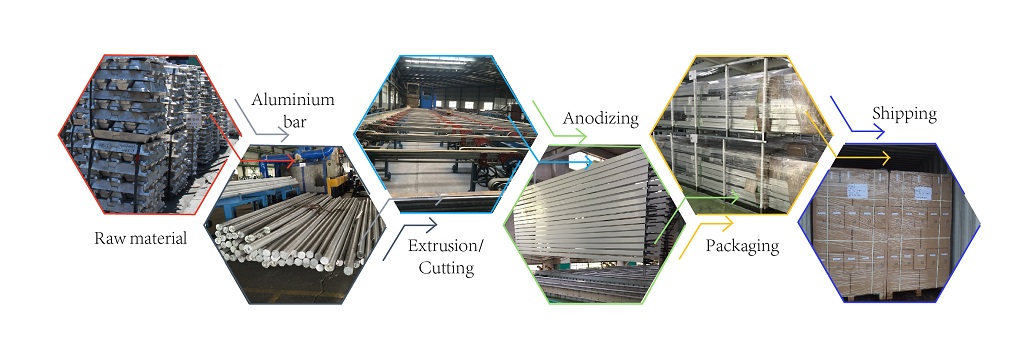

Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
