Basalt Fiber Braided Sleeve
1.Product Introduction
ZBAO Basalt Fiber Sleeve is braided by high quality basalt yarns, it has outstanding property of electric insulation, high temperature resistance, chemical-corrosion resistance, excellent tenacity, it is the best insulation and protecting solution in extreme working environment.

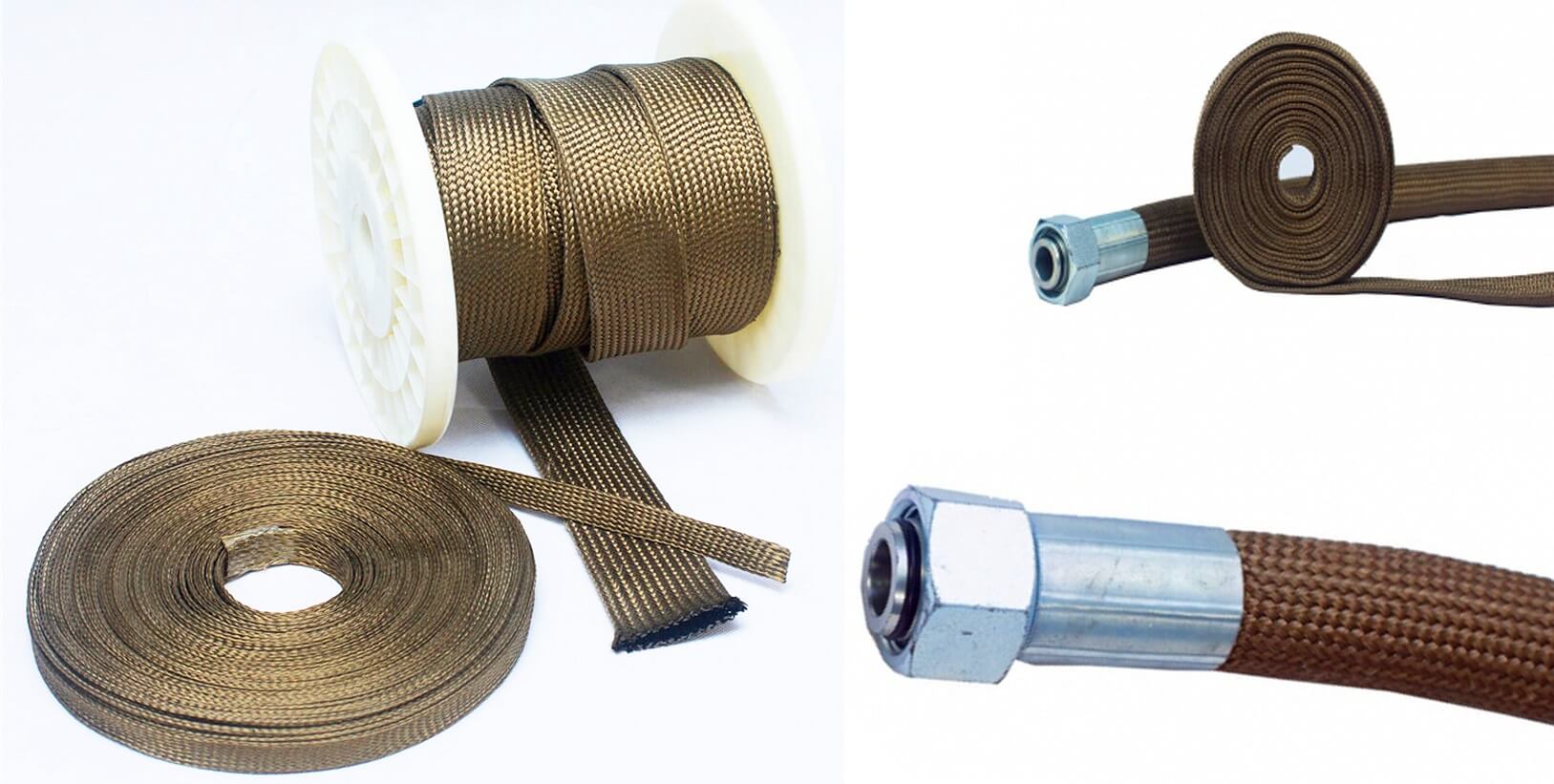

ZBAO Basalt fiber sleeve widely used in Metallurgy, Chemical industry, Auto industry, Vessel and aviation to protect hoses (hydraulic), oil tubes, fluid transportation pipings, exhaust pipes, cables from high temperature and fire accident.
2.Product Characters
|
Size/Inner diameter
|
5mm-120mm
|
|
Colour
|
Brown
|
|
Working temperature
|
700℃
|
|
Flammability
|
VW-1
|
|
Character
|
Excellent tenacity,outstanding temperature resistance, Good chemical-corrosion resistance.
Good filterability.
|
3.Standard Specifications
|
ZBAO Part No.
|
Inner Dia.
|
Wall Thickness/mm
|
Roll Length/m
|
|
mm
|
inch
|
|
ZB-BFB-10
|
10
|
3/8
|
0.6
|
50
|
|
ZB-BFB-12
|
12
|
1/2
|
0.6
|
50
|
|
ZB-BFB-15
|
15
|
5/8
|
0.6
|
50
|
|
ZB-BFB-20
|
20
|
3/4
|
0.7
|
50
|
|
ZB-BFB-25
|
25
|
1
|
0.7
|
50
|
|
ZB-BFB-30
|
30
|
1 1/8
|
0.8
|
50
|
|
ZB-BFB-35
|
35
|
1 3/8
|
0.8
|
50
|
|
ZB-BFB-40
|
40
|
1 5/8
|
0.8
|
50
|
|
ZB-BFB-45
|
45
|
1 3/4
|
0.9
|
25
|
|
ZB-BFB-50
|
50
|
2
|
0.9
|
25
|
|
ZB-BFB-55
|
55
|
2 1/4
|
0.9
|
25
|
|
ZB-BFB-60
|
60
|
2 3/8
|
0.9
|
25
|
|
ZB-BFB-65
|
65
|
2 1/2
|
1
|
25
|
|
ZB-BFB-70
|
70
|
2 3/4
|
1
|
25
|
|
ZB-BFB-75
|
75
|
3
|
1.1
|
25
|
|
ZB-BFB-80
|
80
|
3 1/8
|
1.1
|
25
|
|
ZB-BFB-90
|
90
|
3 1/2
|
1.2
|
25
|
|
ZB-BFB-100
|
100
|
4
|
1.2
|
25
|
