Basalt/lava Fiber Fire Resistant Sleeve For Hose or Cable Protect

Basalt/lava Fiber Fire Resistant Sleeve For Hose or Cable Protect is a kind of heavy duty pyrojacket to protect different kinds of hoses, wires and cables from the hazards of high heat and occasional flame.



Basalt/lava Fiber Fire Resistant Sleeve For Hose or Cable Protect


1.Product Introduction

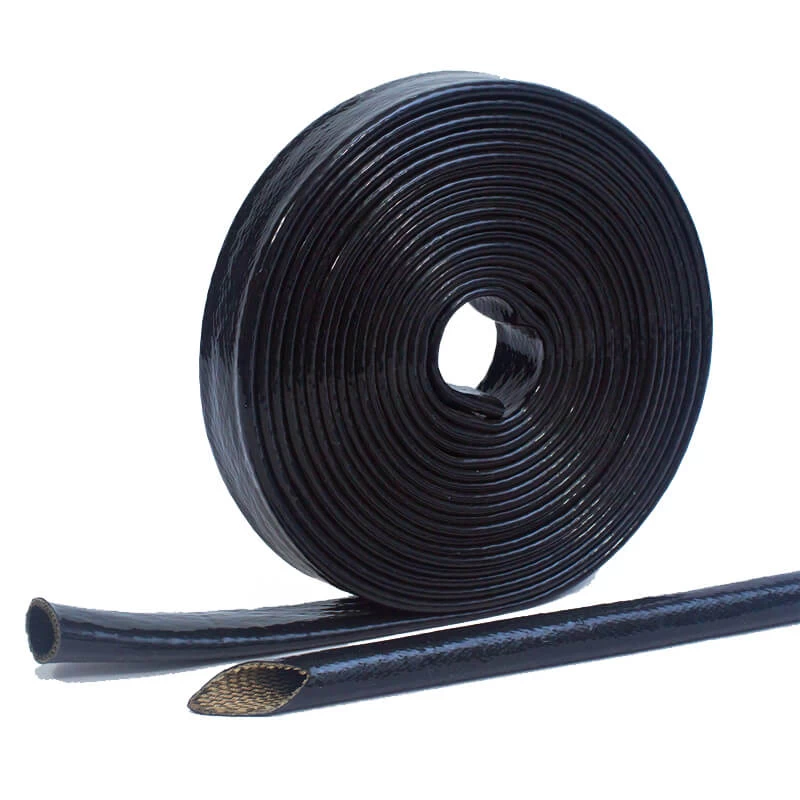

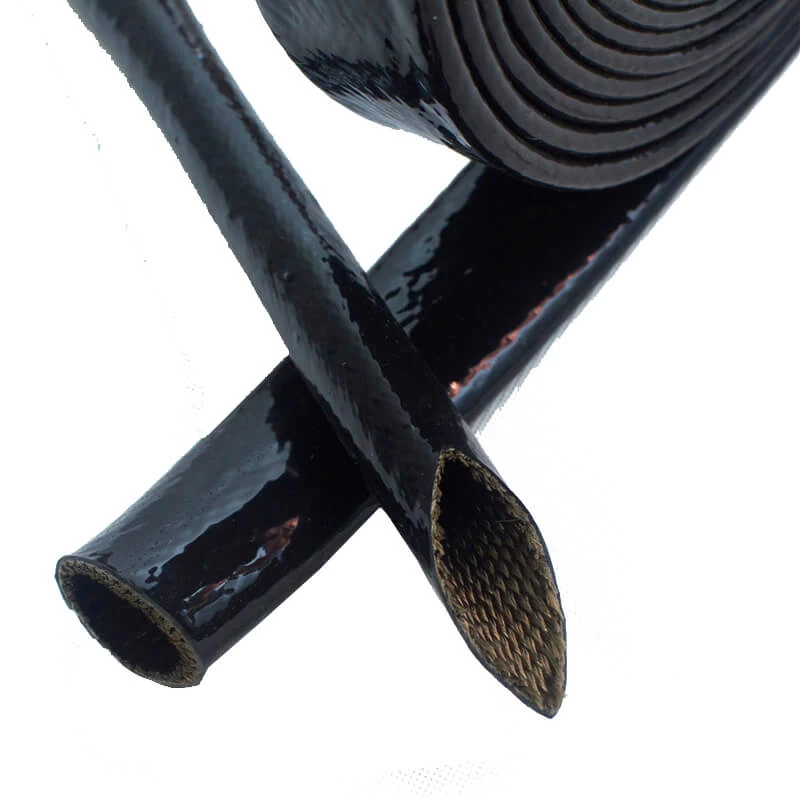

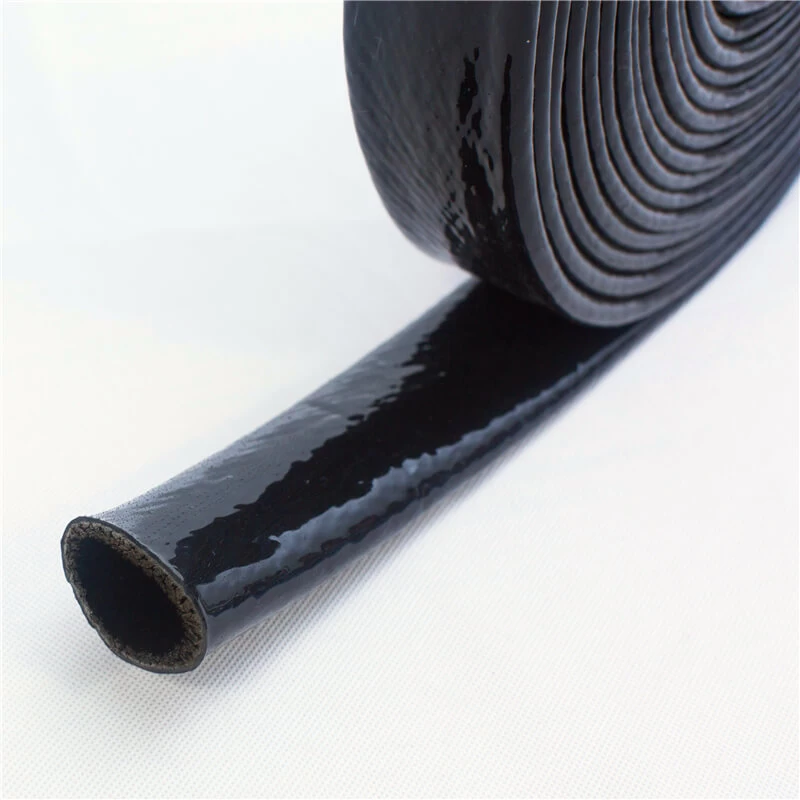

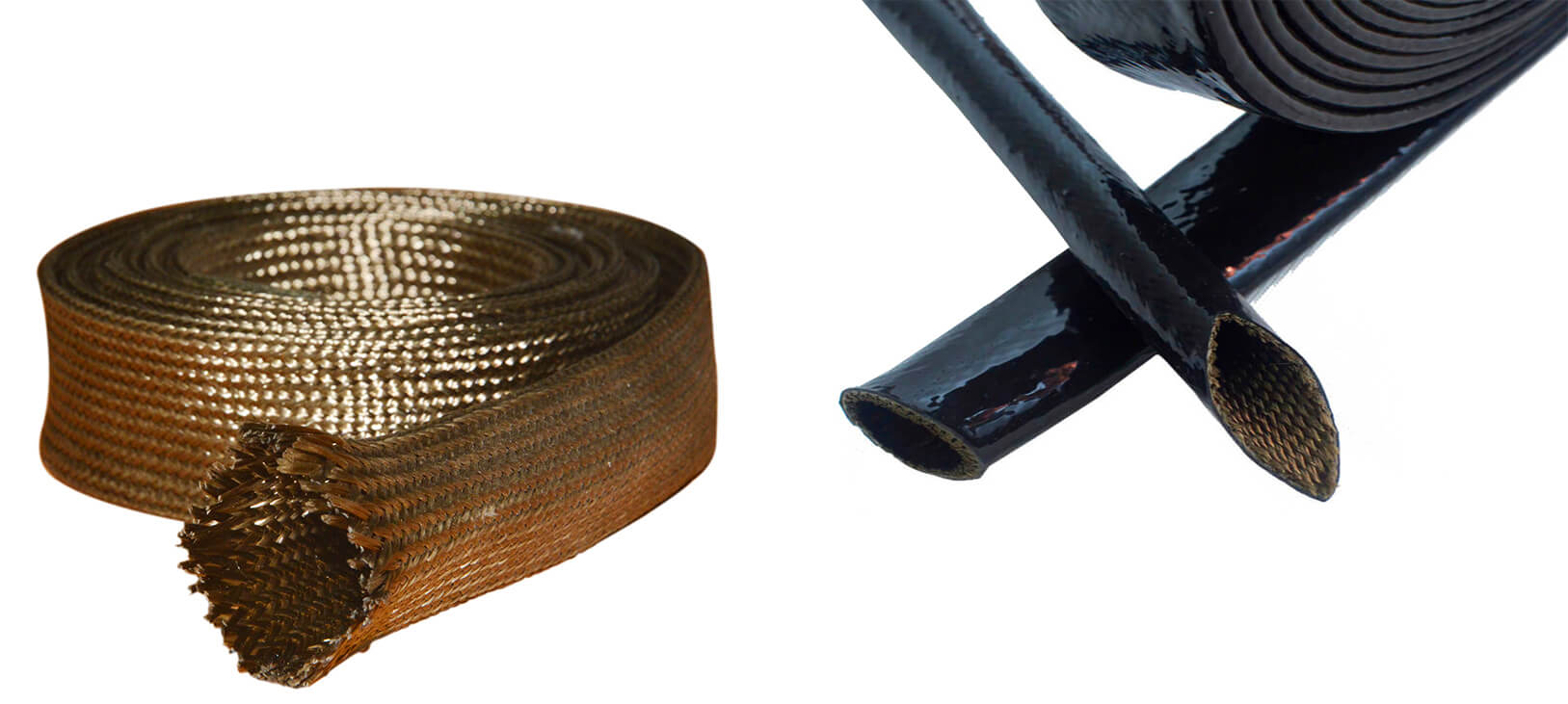

Basalt fiber fireproof sleeve is made of braided basalt fiber sleeve with silicone rubber coating, it is designed as a kind of heavy duty pyrojacket to protect different kinds of hoses, wires and cables from the hazards of high heat and occasional flame.


Basalt fiber fireproof sleeve shed molten metal splash in steel plants, glass plants, foundries, cutting and welding shops.


Good thermal insulation and fire proof performance make Fire Sleeve reduce heat energy losses and protect employees from burning effectively.


2.Product Characters

Materials

E-grade fiberglass and Silicone rubber

Size/inner diameter

From 6mm (1/4”) to 150mm(6”),other size customized

Rate voltage

7kv--25kv,it depends on different size and wall thickness.

Flammability

VW-1

Working temperature

Continues working under 260℃,short time exposure to 1650℃.

Colour

Standard iron oxide red,other colors blue,yellow,silver,black etc are available.

Properties

High temperature and flame resistant,

Thermal insulation,

Anti-fire,anti-aging,

Shield the splashing of the molten metal,

Abrasion resistant,water proof,oil proof,acid and alkali resistant.

Application Industries

Metals(Iron&steel),Foundries,Transportation(Aerospace,Auto,Rail vehicles,Heavy Equipment,Marine),Oil & Gas,Power industry,etc

How to use

Cover fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer.

Purpose

Fire sleeve for protect hose,wires,lines and cables,

Reduce heat energy losses;

Protect employees from burning effectively.



3.Specifications

Part No.

Inner Dia.

Wall Thickness

Roll Length/mtr

mm

inch

ZBAO06

6

1/4

1.5

20

ZBAO08

8

5/16

1.6

20

ZBAO10

10

3/8

1.8

20

ZBAO12/13

13

1/2

1.9

20

ZBAO15

15

5/8

2.1

20

ZBAO20

20

3/4

2.4

20

ZBAO22

22

7/8

2.5

20

ZBAO25

25

1

2.6

20

ZBAO30

30

11/8

2.9

20

ZBAO32

32

11/4

3

20

ZBAO35

35

13/8

3.1

20

ZBAO38

38

11/2

3.2

20

ZBAO40

40

15/8

3.4

20

ZBAO45

45

13/4

3.4

20

ZBAO50

50

2

3.6

20

ZBAO55

55

21/4

3.7

20

ZBAO60

60

23/8

3.8

20

ZBAO65

65

21/2

3.8

20

ZBAO70

70

23/4

4

20

ZBAO75

75

3

4.1

20

ZBAO80

80

31/8

4.3

15

ZBAO85

85

31/4

4.3

15

ZBAO90

90

31/2

4.5

15

ZBAO95

95

33/4

4.5

15

ZBAO100

100

4

4.6

15

ZBAO105

105

41/8

4.7

10

ZBAO110

110

43/8

4.7

10

ZBAO115

115

41/2

4.7

10

ZBAO120

120

43/4

4.8

10

ZBAO125

125

5

4.8

10

ZBAO130

130

51/8

5

10

ZBAO140

140

51/2

5.2

10

ZBAO150

150

6

5.2

10


Product Tags fire sleeves          fire sleeve          fire sleeving          fire resistant sleeve          fire fiberglass sleeve          aeroquip fire sleeve          basalt fire sleeve          insulflex fire sleeve          fire rated sleeves
