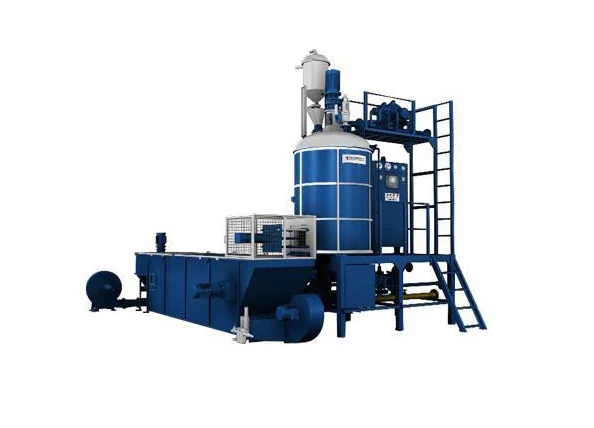

Batch type EPS Pre-expander



Features:

1.Resin Hopper Capacity for different capacities

2.Fluid Bed Dryer with heater

3.Transfer blower for bead

4.Resin filling blower

5.Pefect sealing and chamber pressure stabilizing ,highly efficient heat transition, energy saving up to 50% comparing to continual type EPS pre-expander.

6.10 “ MCGS touch screen

7.LG PLC control system

8.Resin weighing system

9.Automatic sensor for material level control, fully automatic density monitoring and control device, make the products with even density.

10.Level controller

11. Steam chamber :

    Two options: ①Inner is stainless steel, outer is color steel

                 ② Both inner and outer are 304 stainless steel

12. Aluminium plug type steam distributor

13. User friendly control panel

14. Second Pre-expanding device (optional)


Technical data:

Subjects Unit HS-YF-500 HS-YF-1100 HS-YF-1600
Length mm 3000 1780 1850
Width mm 3780 3220 1850
Height mm 3280 4250 5680
Weight Kg ≈1200 ≈2500 ≈3500

Note: this information is for reference only, further details to be confirmed with the company.


Energy consumption

Models

Unit

HS-YF-500

HS-YF-1100

HS-YF-1600

Steam consumption

Kg/cycle

3-6

6-10

12-18

Air consumption

m3/cycle

0.5-0.9

1.2 -2.5

1.5-3

Power consumption

KW

3.1

9.6

19.8


Functioning

Subjects HS-YF-500 HS-YF-1100 HS-YF-1600
Expansion rate 12-14g/l 12-30g/l 12-33g/l
Productivity 12 g/l 60-80 kg/h 12 g/l 130-180kg/h 12 g/l 520-650 kg/h
18 g/l 90-120 kg/h 18 g/l 230-280 kg/h 18 g/l 670-830 kg/h
20 g/l 130-160 kg/h 20 g/l 300-360 kg/h 20 g/l 850-950kg/h
35 g/l 180-210 kg/h 30 g/l 380-460kg/h 30 g/l 1000-1200kg/h


Instruction

Subjects

Unit

HS-YF-500

HS-YF-1100

HS-YF-1600

Chamber

Diameter

mm

φ500

φ1100

φ1600

Height

mm

1000

1500

2500

Size

m3

0.1963

1.4255

5.0265

Steam

Entry

mm

φ25

φ50

φ50

Entry pressure

MPa

0.4-0.8

0.4-0.8

0.4-0.8

Compressed air

Entry

mm

φ25

φ40

φ50

Entry pressure

MPa

0.4-0.8

0.4-0.8

0.4-0.8

Drainage

Motor

mm

φ65

φ80

φ100

Drainage

mm

φ65

φ80

φ100

Density calculation

--

Density calculation

Density calculation

Density calculation

Density tolerance

--

<±3%

<±3%

<±3%

Spinning motor

KW

1.1

4

11

Note: this information is for reference only, further details to be confirmed with the company.

Know more about accurate EPS pre expander.

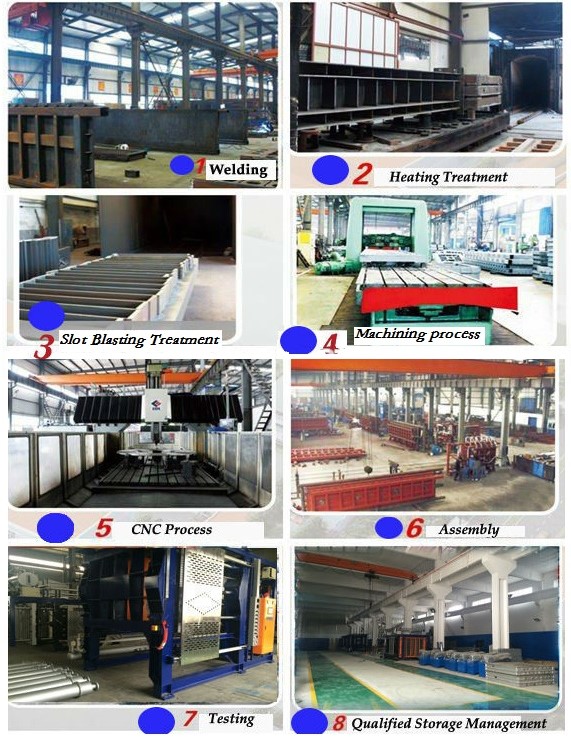

How we make machines?


We use which brand parts?

To see our workshop and delivery
